Wire Wrapped Water Well Screen Pipe Made from High Grade Stainless Steel for Water Production and Performance in Water Wells




Product Description

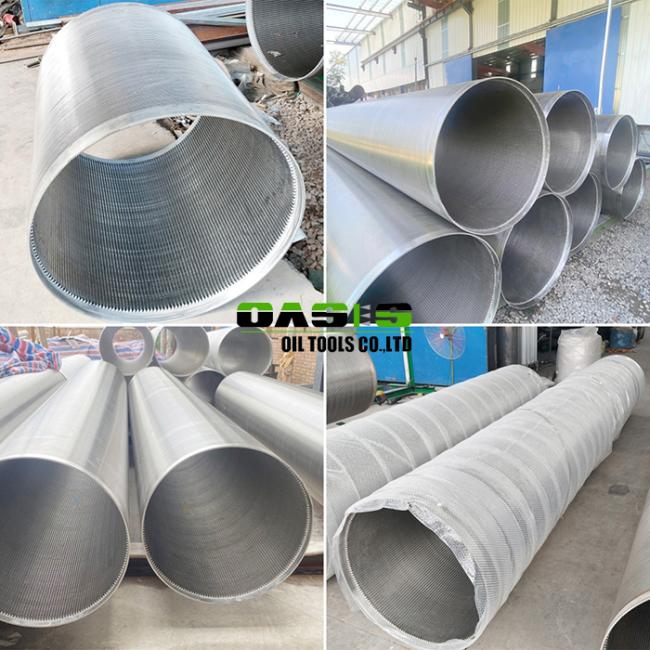

Water Well Screen (Wire-Wrapped)

The Wire-Wrapped Water Well Screen is an innovative product designed for efficient water extraction and long-term operational stability. Featuring an advanced wire-wrapped structure, it excels in providing high flow capacity and enhanced mechanical strength, effectively addressing challenges in complex geological environments.






Specifications






Key Advantages


1.High-Flow Design: The unique wire-wrapped construction offers a larger effective filtration area, significantly improving well yield and efficiency.
2.Superior Durability: Manufactured with high-strength materials and a robust wrapping technique, it possesses excellent resistance to pressure and deformation, can withstand high mechanical loads, and offers an extended service life.
3.Precision Filtration: By precisely controlling the slot size, it effectively blocks sand, gravel, and other solid particles, preventing wellbore clogging and submersible pump wear, thereby ensuring water quality and system stability.
4.Easy Installation: The simple design allows it to be easily slid over a perforated base pipe and securely fixed by welding at both ends, greatly simplifying downhole installation procedures.

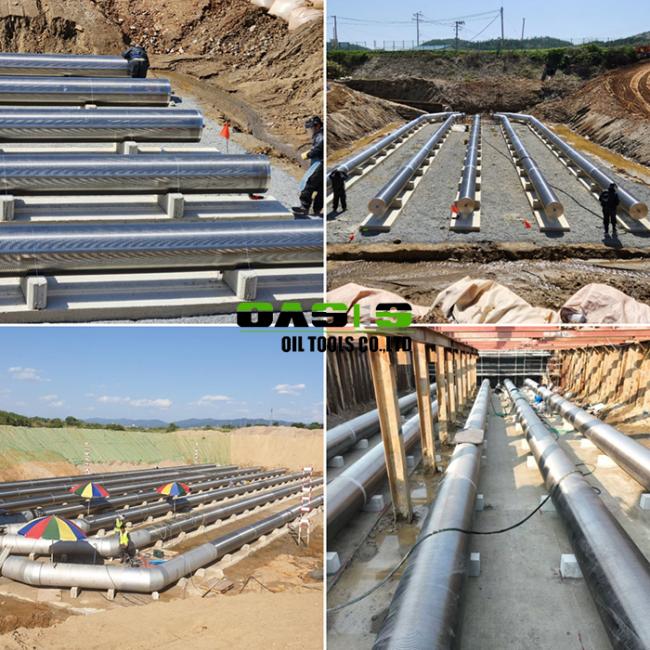

Application Scenarios

This versatile screen is ideally suited for a wide range of water abstraction and management projects, including:

Municipal and Agricultural Water Supply Wells
Industrial Process Water and Cooling Water Wells
Groundwater Monitoring and Environmental Remediation Wells
Dewatering and Drainage Systems in Construction and Mining
Geothermal Energy Recovery Wells
Recharge Wells for Aquifer Storage and Recovery (ASR) Systems







FAQ


Q1: What is the typical lead time for standard-sized screens (800mm OD, 3.8m/5.8m length)?
A: Standard sizes are typically ready for shipment within 2–3 weeks after order confirmation. Customized sizes or slot specifications may require additional time, which we will confirm upon quotation.

Q2: Can these screens be used in brackish or corrosive water conditions?
A: Yes. We offer screens made from stainless steel (e.g., SS304, SS316) and other corrosion-resistant materials suitable for challenging water chemistry. Please specify your water quality during inquiry so we can recommend the best material option.

Q3: How do I select the right slot size for my well?
A: The ideal slot size depends on your aquifer grain size distribution. We recommend providing a sieve analysis of your formation sand, and our engineering team will assist in selecting the optimal slot width to balance flow efficiency and sand retention.

Q4: Are the screens delivered as one piece, or can they be segmented for easier installation?
A: For convenience, screens can be manufactured in multiple segments (e.g., 1m or 2m sections) with threaded or welded couplings. This facilitates handling and installation in narrow or deep wellbores. Let us know your preference when ordering.

Q5: What kind of warranty or after-sales support do you provide?
A: We offer a 12-month warranty against manufacturing defects. Additionally, we provide technical support for installation guidance, well rehabilitation advice, and performance troubleshooting throughout the screen’s service life.


For convenient transportation and installation, the screen can be manufactured in segmented sections upon request. We are committed to providing high-performance and reliable filtration solutions for water wells, making this product an ideal choice for enhancing well productivity and longevity. Inquiries for customization are welcome.
