Seamless Carbon Steel Water Well Drill Pipe For Professional Water Well Drilling Operations
Price:
Negotiation
MOQ:
10 Meter/Meters
Delivery Time:
Within 35 days
Brand:
OASIS
Product Description

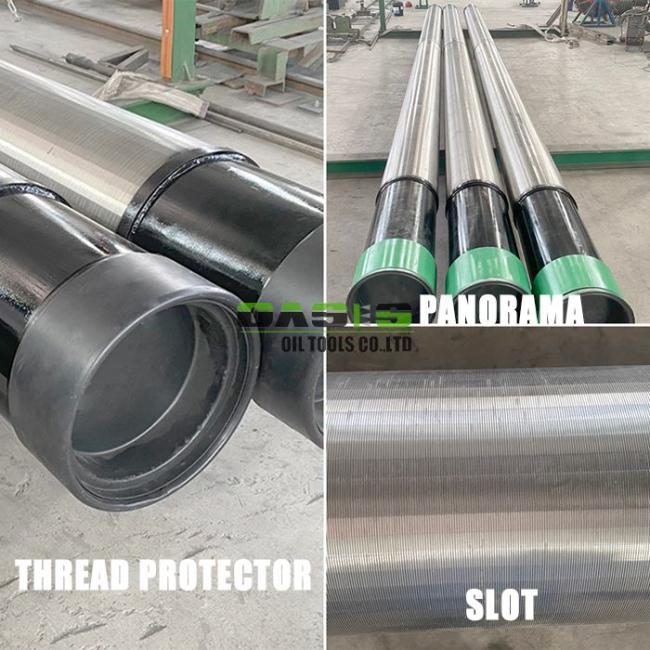

13 3/8” J55 Base Pipe AISI 304 Stainless Steel Wire Wrapped Well Screen (LTC Connection, R2 Length)
This premium wire wrapped screen is a high-efficiency sand control completion product manufactured in strict compliance with API 5CT and API 11D1 standards. It is specially engineered for oil & gas wells, water wells, geothermal wells and coalbed methane wells, delivering reliable formation sand retention, high fluid conductivity and long-term stable performance under complex downhole working conditions.
Product Information
| Core Specification | Details |
|---|---|
| Nominal Size | 13 3/8 Inch |
| Base Pipe Material & Grade | API 5CT Standard J55 Carbon Steel |
| Wrap Wire Material | AISI 304 Stainless Steel (V-shaped Wedge Wire) |
| Length Range | API Standard R2 (6.10m - 9.14m / 20ft - 30ft) |
| Connection Type | API LTC (Long Thread and Coupling) |
| Applicable Standards | API 5CT, API 11D1 |
| Customizable Parameters |
Slot opening (0.1mm-5mm available), length, base pipe grade, wire material
|
This product is widely used for sand control completion in vertical wells, deviated wells and conventional horizontal wells, effectively preventing formation sand production, protecting downhole production equipment, and extending the overall service life of oil, gas and water wells.
Operation Method
-
Pre-Running Inspection & PreparationBefore running into the well, carefully check the screen appearance to ensure no damage to the wedge wire surface, no deformation of the slot, and intact thread. Verify the overall length, outer diameter, slot size and connection type against the order documents. Keep the thread protectors installed until the formal connection operation to avoid thread damage.
-
Handling & Lifting SpecificationsUse special soft slings for lifting and handling. It is strictly forbidden to use steel wire rope to directly contact the screen filtering surface to prevent scratch, deformation and welding joint damage. Do not drop, bump or squeeze the screen during transportation and handling, and avoid heavy impact on the end of the pipe.
-
LTC Thread Make-up Operation
Before connection, thoroughly clean the LTC male and female threads and coupling, remove all impurities, dust and burrs, and evenly apply API standard thread compound on the entire thread surface. Use a calibrated hydraulic torque tong for make-up, strictly follow the API 5CT recommended make-up torque for 13 3/8” J55 LTC casing. Avoid over-torque (which may cause thread damage) or under-torque (which may cause sealing failure).
Our Service
- Customized Solution Service
We provide fully customized products according to your actual well conditions, including slot opening size, base pipe steel grade, wrap wire material, length and connection type, to meet the needs of different sand control completion projects.
- Full-Process Quality Assurance
All products are produced in strict accordance with API standards, with a complete quality control system for the whole production process. We provide MTC (Material Test Certificate), quality inspection report and relevant certification documents for each batch of products.
- Professional Technical Support
Our experienced engineering team provides one-to-one pre-sales technical support, including formation sand analysis, screen type selection, and completion program optimization. We also provide 24/7 online after-sales technical guidance for on-site operation.
- Global Logistics & Delivery Service
We have rich experience in international trade and logistics, and can provide door-to-door delivery service including customs clearance and commodity inspection, ensuring the safe and timely arrival of products to the designated location.
- Warranty Service
We provide a standard warranty for all our products. For product quality problems caused by non-human factors within the warranty period, we provide free replacement or maintenance solutions.
FAQ
Q1: What kind of well conditions is this 13 3/8” wire wrapped screen suitable for?
A1: This screen is specially designed for sand control completion of oil and gas wells, water wells, geothermal wells and coalbed methane wells. It is suitable for medium-coarse sand formations, and can be widely used in vertical wells, deviated wells and conventional horizontal wells with matching R2 length.
Q2: What is the tolerance of the slot opening of this screen?
A2: We adopt full-automatic CNC production equipment, the slot opening tolerance is strictly controlled within ±0.02mm, which fully meets API standards. We can also customize the slot size from 0.1mm to 5mm according to your formation sand particle size analysis results.
Q3: Can this 304 stainless steel screen be used in highly corrosive downhole environments?
A3: AISI 304 stainless steel has excellent corrosion resistance to fresh water, weak acid and weak alkali media, and is suitable for conventional well conditions. For highly corrosive environments with high content of H₂S, CO₂ or chloride ions, we recommend upgrading to 316L, duplex stainless steel or Hastelloy wrap wire to extend the service life of the screen.
Q4: What is the standard R2 length range of this product?
A4: The R2 length of this screen fully complies with API standard, with a range of 6.10m to 9.14m (20ft to 30ft). We can also customize non-standard lengths according to your actual well depth and on-site operation requirements.
Related Products
Company Information

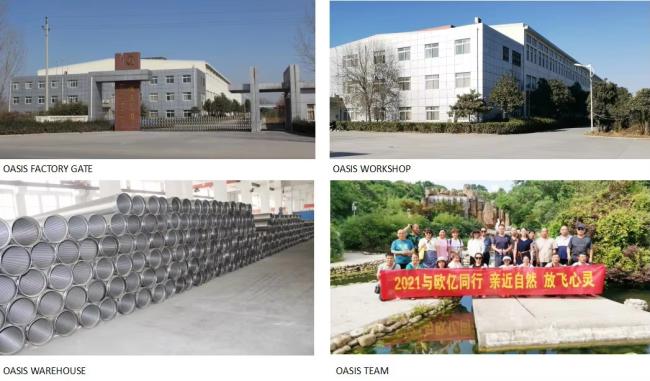

Oasis Oil Tools Co., Ltd(Oasis Well Screen Co.,LTD) based in Xinxiang City, China, is a professional manufacturer and integrated solution provider specializing in oilfield sand control completion equipment, industrial filtration systems and water intake facilities. With deep industry expertise, robust in-house R&D and full-cycle production capabilities, we deliver high-performance, application-tailored products for global clients across the oil & gas, water treatment, marine engineering and geothermal development sectors.
Our core product portfolio covers three major categories:

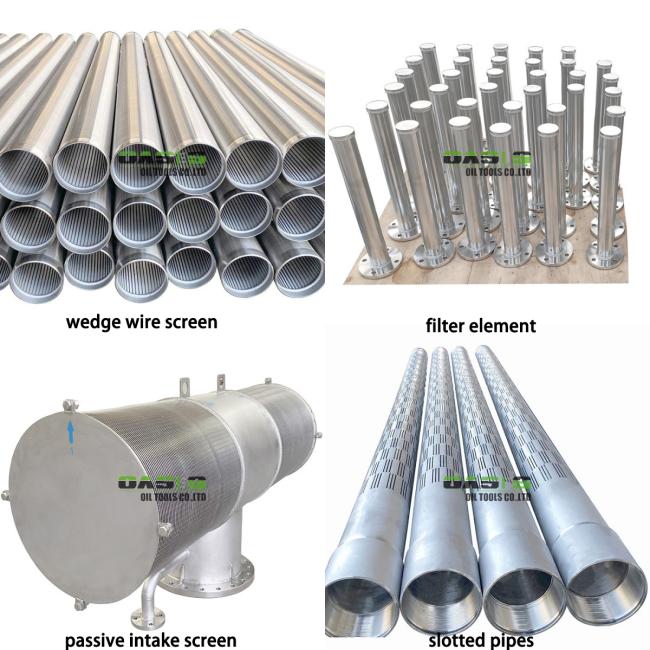

- Downhole sand control completion products: wire-wrapped (Johnson) screens, multi-layer filtration screens, pre-packed screens, perforated screens, oilfield sand control screens, slotted screens, bridge-type screens, as well as API-compliant oil casings and stainless steel casings;
