Stainless Steel Well Screen 304 Wire Wrapped Screen with 3 Meter Length and 1mm Slot Opening for Sand Control in Groundwater Extraction
Product Description

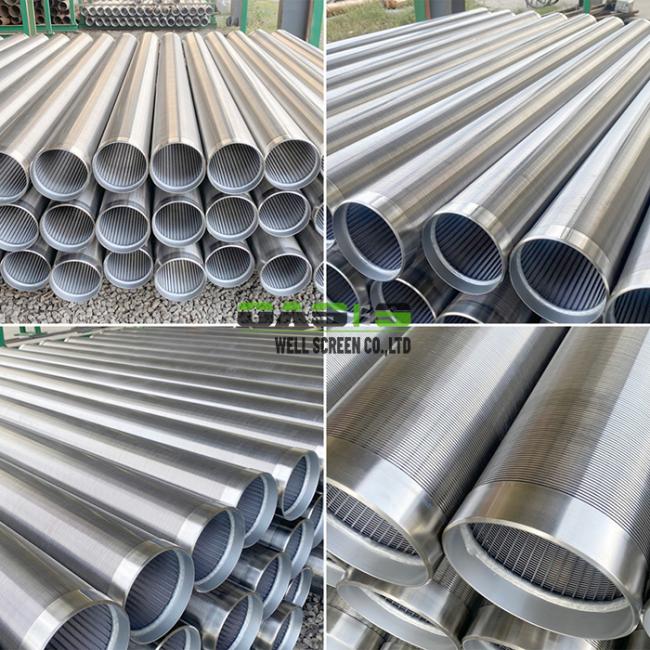

OASIS Downhole Water Well Screen is a high-performance wire wrapped screen specifically designed for water well, oil well, and groundwater extraction applications. Manufactured with precision resistance welding, V-shaped profile wires are continuously wound onto longitudinal support rods, forming consistent and uniform slot openings. The 304 stainless steel construction provides excellent corrosion resistance and durability in downhole environments.
This model features an outer diameter of 219mm, a slot opening of 1mm, and a single section length of 3 meters. Both ends are fitted with welded end rings (weld ring connection) to facilitate easy coupling, stacking, and installation downhole. The unique V-wire profile creates a self-cleaning action, reduces clogging, increases effective open area, and enhances both axial and radial strength. Slot sizes are precisely controlled to ensure reliable sand control across various geological formations, making it an ideal solution for demanding water well completions.
Specifications
| Parameter | Details |
|---|---|
| Product Name | Downhole Water Well Screen (Wire Wrapped Screen) |
| Outer Diameter (OD) | 219 mm (customizable) |
| Slot Opening | 1.0 mm |
| Length (per section) | 3,000 mm (3 meters) |
| Material | SS304 (Stainless Steel 304) |
| Connection Type | Welded end rings (both sides) |
| Winding Wire Profile | V-shaped (wedge wire) |
| Effective Open Area | ≥ 30-50% (depending on slot & rod configuration) |
| Maximum Operating Temperature | Up to 300°C (SS304) |
| Application | Water wells, geothermal wells, dewatering wells, sand control |

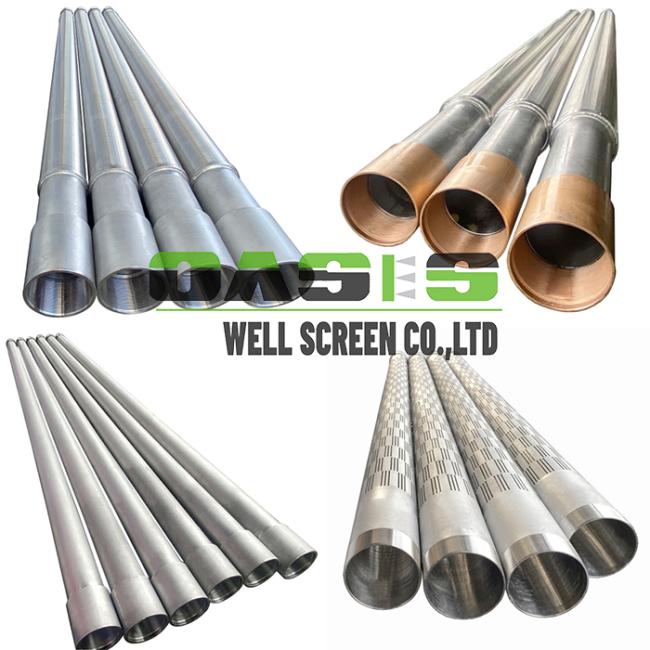

Optional upgrades: SS316L, duplex steel, other slot sizes (0.15–3.0 mm), longer sections (up to 6m), threaded or flush joint connections.
FAQ
Q1: What is the advantage of the 1mm slot opening for water wells?
A: A 1mm slot is ideal for medium to coarse sand formations. It effectively retains sand and gravel while allowing high water flow, reducing sand pumping and well maintenance.
Q2: Why choose SS304 over other materials?
A: SS304 offers good corrosion resistance and cost-effectiveness for most fresh water and mild chemical environments. For high chloride or saline water, we recommend SS316L.
Q3: What are the welded end rings for?
A: The weld rings on both ends allow easy connection between multiple screen sections using couplings or welding on-site. They also protect the screen ends from damage during handling and installation.
Q4: Can you produce other slot sizes or diameters?
A: Yes. We custom manufacture slot openings from 0.10mm to 3.0mm, diameters from 50mm to 800mm, and lengths up to 6m per section. Contact us with your formation sand analysis.
Q5: How is the screen cleaned if it becomes clogged?
A: The V-wire design is self-cleaning – the slot widens outward so particles cannot wedge. If needed, backwashing, brushing, or chemical cleaning can restore performance.
Q6: What is the lead time for this 219mm x 3m screen?
A: Standard production lead time is 15–25 working days after order confirmation and drawing approval.
Packing & Shipping
Packaging:
-
Each screen section is individually packed in bubble bags or woven bags.
-
If threads are present, thread protectors are applied to both ends.
-
Spray marking (labeling) can be done according to customer requirements (e.g., order number, dimensions, slot size).
Shipping:
-
Suitable for sea freight, or truck transport.
-
Sea freight: 20ft or 40ft containers. For 3m sections, screens can be stacked horizontally.
-
For bulk orders, we optimize loading to minimize freight cost.
-
Documents provided: Commercial invoice, packing list, bill of lading, material test certificate, inspection report.
