Stainless Steel Gravel Pack Screen 10 * 12mm Diameter Ceramic Balls Media

Price Negotiable

Price: Negotiation

MOQ: 1 Meter/Meters

Delivery Time: Negotiable

Brand: OASIS

Product Description

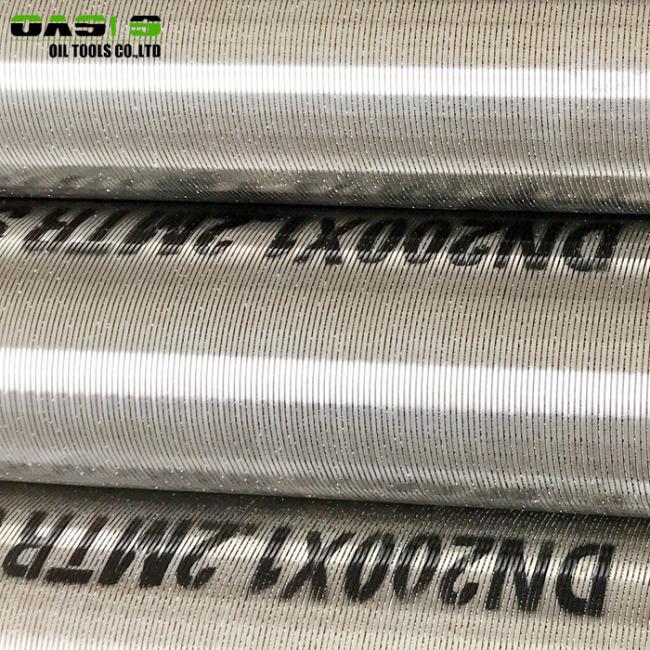

Stainless Steel Grave Prepacked Screen

Specifications

Size (in)	Approx. Screen (in.)	Approx. Screen OD(In.)	Media Annular Thickness (in.)	Inner Screen Open Area(in.2/ft)					Outer Screen Open Area(in.2/ft)					Approx. Screen Weight
				Screen slot size(0.001in.)					Screen Slot Size(0.001in.)					Approx. Screen Weight
				12	20	30	40	50	12	20	30	40	50	(lb/ft)
2x4	2.2	4.5	0.85	13	23	31	38	43	22	39	53	64	74	17
3x5	3.0	5.7	0.97	18	31	42	51	59	27	47	64	77	88	23
4x6	4.0	6.7	0.84	22	39	53	64	74	25	45	62	77	89	25
5x7	5.0	7.7	0.84	27	47	64	77	86	28	51	71	87	101	27
6x8	6.0	8.7	0.84	25	45	62	77	89	33	59	81	100	116	35
8x10	8.0	10.8	0.84	33	59	81	100	116	41	74	101	125	145	55
10x12	10.0	12.8	0.84	41	74	101	125	145	42	77	107	133	155	70
12x15	12.0	15.0	0.84	42	77	107	133	155	39	73	102	129	153	85
14x16	13.2	16.0	0.69	46	84	117	146	170	42	78	110	138	163	100
16x18	15.2	18.0	0.69	42	78	110	138	163	47	88	123	155	185	115
18x20	17.0	20.0	0.78	47	88	123	155	183	52	97	137	172	204	128

Features, advantages and Benefits of the gravel pack screen(muni-pak well screen)

The prepack screen also called gravel pack screen which has larger collapse strength than rod based well screen

Save more value and drilling process than to use the rod base well screens.

The media will help the contractors and the well owner to washing the wells easier.

The wide range of diameters (1-1/4 to 20 in.) and connections,weld rings or threaded fittings,

provides flexibility for meeting most application needs with a variety of standard or custom-end fittings-offering easier adaptation for a wide array of uses.

Packing and delivery of Stainless Steel Grave Prepacked Screen

Each with bubble bags and then in wooden case.
Each case is clearly marked with:
1. Batch number
2. Date of manufacture
3. Safe heating & application temperature
Transported by sea
