Water Filtration Stainless Steel Well Screen Pipe , Nickel White Borehole Screen
Price:
Negotiation
MOQ:
1 Meter/Meters
Delivery Time:
Negotiable
Brand:
OASIS
Product Description
Sand Control Gravel Pack Water Filtration Screen
Product Description
Sand Control Gravel Pack Water Filtration Screen
A pre-packed well screen consists of one screen telescoped inside another, with an annulus filled with filter pack at the factory before shipment. The pre-packed screen is designed especially for high capicity wells, these screens offer unique advantages over conventional rod based screens with respect to strength. it features include: collapse strength equal to pipe; double the tensile strength of standard rod based screen; a bioresistant, hydraulically superior (to silica sand) pack; a greater percentage of open area(for deep applications) than that of a conventional screen, due to the dual support construction.
For the pre-packed screen, base pipe can apply perforated casing with API standard, bridge slot pipe, or continuous slot well screen, while in the middle layer, the filter media could be quartz sand, wier mesh, metal fibre,ceramic beads , etc. The screen jacket could use continuous slot screen, bridge slot pipe.
A pre-packed well screen consists of one screen telescoped inside another, with an annulus filled with filter pack at the factory before shipment. The pre-packed screen is designed especially for high capicity wells, these screens offer unique advantages over conventional rod based screens with respect to strength. it features include: collapse strength equal to pipe; double the tensile strength of standard rod based screen; a bioresistant, hydraulically superior (to silica sand) pack; a greater percentage of open area(for deep applications) than that of a conventional screen, due to the dual support construction.
For the pre-packed screen, base pipe can apply perforated casing with API standard, bridge slot pipe, or continuous slot well screen, while in the middle layer, the filter media could be quartz sand, wier mesh, metal fibre,ceramic beads , etc. The screen jacket could use continuous slot screen, bridge slot pipe.

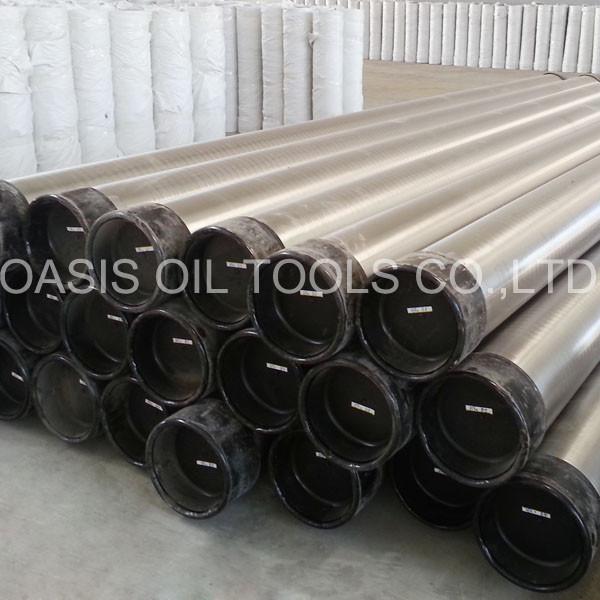

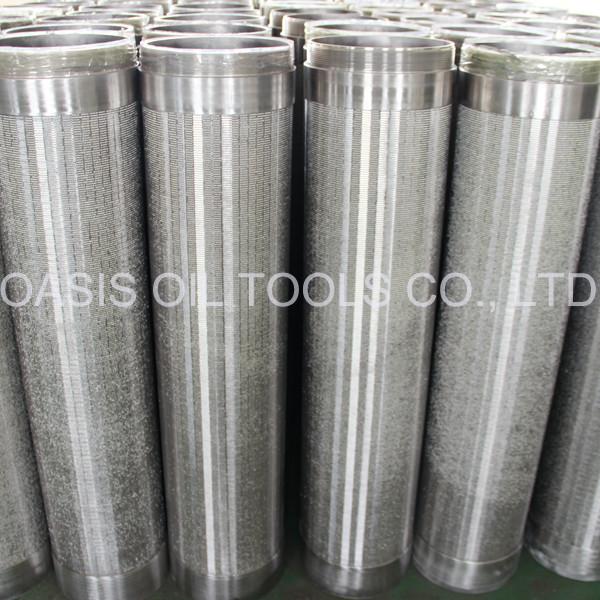

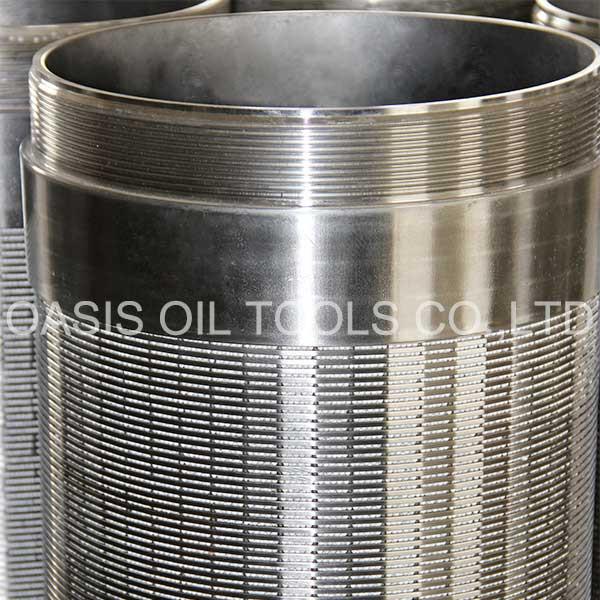

Products Show
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and approved by SGS.
High quality
Approved by SGS third party inspect.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team

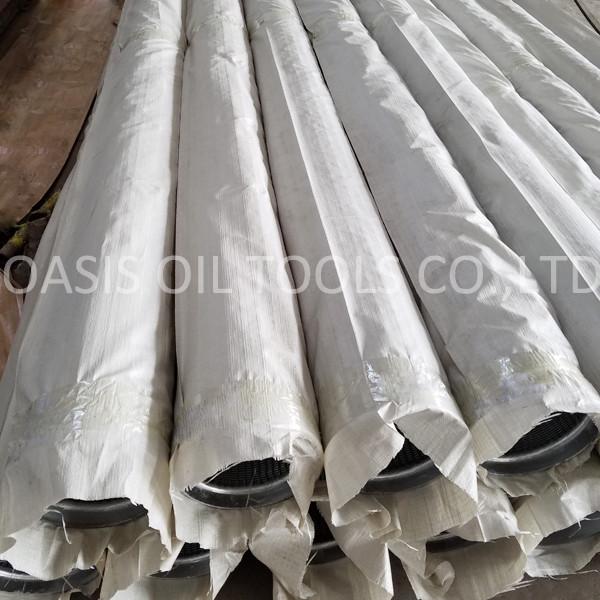

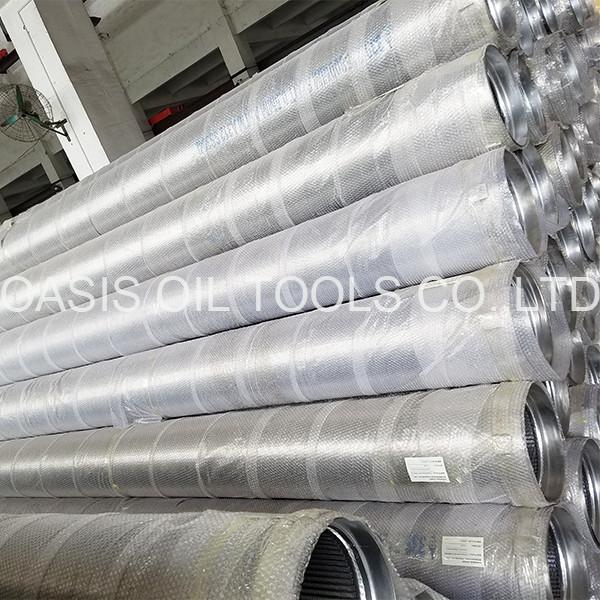

Packing & Delivery
Packing Details : Single with bubble bags or woven bags and then in wooden case.
Delivery Details : 3-30 days after order confirmed and receiving your advance payment.
1. with thread protectors
2. with woven bags
3. with bubble bags

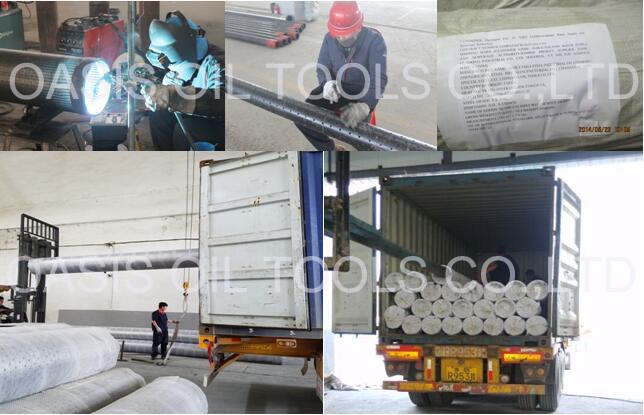

Delivery ways
Different ways of delivery:
According to different ways of transportation, we have different packaged to confirm the goods safe during transportation.

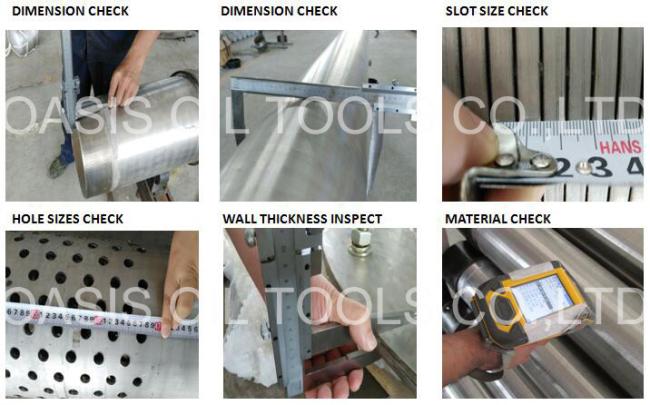

Product Inspect
Favorable Comment
First, when raw materials arrive at our factory, we will inpsect the chemical component and then loaded into our warehouse.
Second, our inspector will check during all the procedure.
Third, before be packaged, our sales manager will inspect the goods with inspector again, approved ones will be labled and packaged.
Fourth, we have person to inspect the loading into container to avoid damage during transportation.
Second, our inspector will check during all the procedure.
Third, before be packaged, our sales manager will inspect the goods with inspector again, approved ones will be labled and packaged.
Fourth, we have person to inspect the loading into container to avoid damage during transportation.
FAQ
If you are satisfied with our gravel packed screens/prepacked screens and willing to know precise price and more information, the following questions is appreciated:
1, What's the material you are going to deal with, stainless steel or carbon steel?
2, What's the OD, length? Diameter from 30-600mm,length from 1-6m
3, What's the slot size of ribbed screen pipes? Usually it is depends on your water outlet and gravel size.
4, What's the depth of the well or tensile strength of the screen that you need?
The tensile strength is important for the screens and each screen will be tested before delivery.
5, We support you consider the transportation too, loading into container at facotry is suggested to avoid damage.
6. We are the direct factory of johnson screens, stainless steel casing, passive water intake screens, prepacked sceens, muni pack screens,etc.
1, What's the material you are going to deal with, stainless steel or carbon steel?
2, What's the OD, length? Diameter from 30-600mm,length from 1-6m
3, What's the slot size of ribbed screen pipes? Usually it is depends on your water outlet and gravel size.
4, What's the depth of the well or tensile strength of the screen that you need?
The tensile strength is important for the screens and each screen will be tested before delivery.
5, We support you consider the transportation too, loading into container at facotry is suggested to avoid damage.
6. We are the direct factory of johnson screens, stainless steel casing, passive water intake screens, prepacked sceens, muni pack screens,etc.
