1 - 13 Meter Long 5 Inch Well Casing , Well Drilling Borehole Steel Casing Pipe

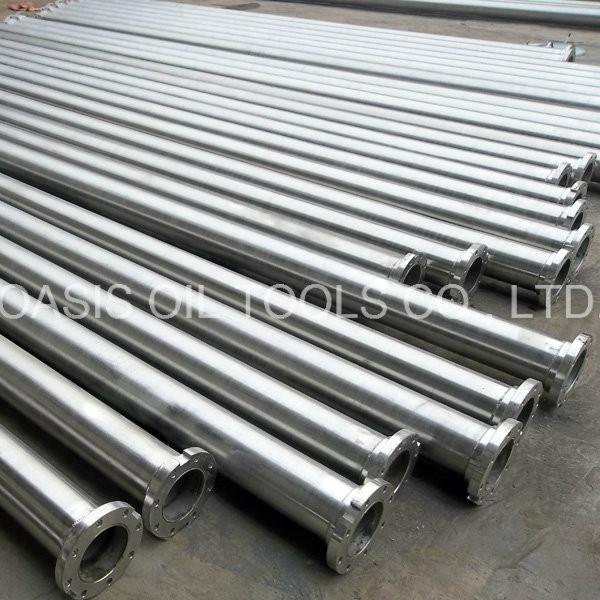

5inch seamless stainless steel 304 casing well drilling pipes
API 5CT 41/2inch seamless steel TP304 stainless steel casing pipes
The stainless steel tubing and casings with the standard thickness as the client requirements.
The material of the stainless steel tubings: ASTM-A312 ss304, ss304L, ss316, SS316L, 2205
Length: 1-13meter per joint (the best choise should be 5.8 meters and 9 meters)
The thickness: 1mm-20mm (we could satisfied the client special requirements)
Ends: STC, BTC, LTC, Plain ends
More specifications according to the below table.
|
Name |
Stainless Steel Pipe |
|
Standard |
ASTM, GB, JIS, DIN, EN, AISI |
|
Material Grade |
TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S |
|
TP410 TP410S TP403 |
|
|
S31803/S32205 S32750 S32760 |
|
|
Outer Diameter |
Seamless Pipe: 4mm-914.4mm |
|
Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm), |
|
|
Thickness |
Seamless Pipe: 0.6mm - 60mm |
|
Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm) |
|
|
Length |
5.8-6.1 m or as customers' request |
|
Tolerance |
Acording to the Standard. |
|
Surface |
180G, 320G, 400G Satin / Hairline |
|
400G, 500G, 600G or 800G Mirror finish |
|
|
Application |
Petrochemical industry, chemical fertilizer industry, oil refining industry, oil and gas industry, light industry and food industry, pulp and paper industry, energy and environmental industries. |
|
Test |
UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers |
If you pay attention to the API standard, please check the table below, we also could produce the goods as your requirement out of the table.
The test facilities of the seamless stainless steel casing and tubes,
our engineer strictly with the collapse strength and the tensile strength, the chemical analysis.
Our goods has passed the SGS and the BV test, if you would like to know more details, please contact with our saler, who will show you more professional service.
The seamless stainless steel casing/tubes has large using area:
The advantage of the manufacturer:
we have the 5 five experiece to produce the stainless steel tubings, you could buy from us with the water well screens and the
bottom plug and etc. The standard API connection to connect them together easilier than any other suppliers.
As the supplier, we also could supply some engineer to your project field to control the install whole process.
We will supply you the best service than any other suppliers who cannot reach to.
