2G 3G 4G WIFI drone FPV dji signal jammer fibierglass RF antenna
2G 3G 4G WIFI drone fpv DJI signal jammer fibierglass RF antenna
This small fiberglass antenna is entirely produced by Shenzhen Texin Electronics Factory and is suitable for various wireless signal interferences. The N-head output can reach over 100W at most. It is compact and portable, convenient for transportation. Welcome to place your order.
| FrequencyRange | Customized |
| Gain(dBi) | 4.5dbi |
| VSWR | ≤2 |
| Horizontal Beamwidth(0º) | 45±10º |
| Vertical Beamwidth(0º) | 38±10º |
| Horizontal non circularity | ±2dbm |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 100W |
| Inpur connector type | N Female |
| Lightning Protection | DC Ground |

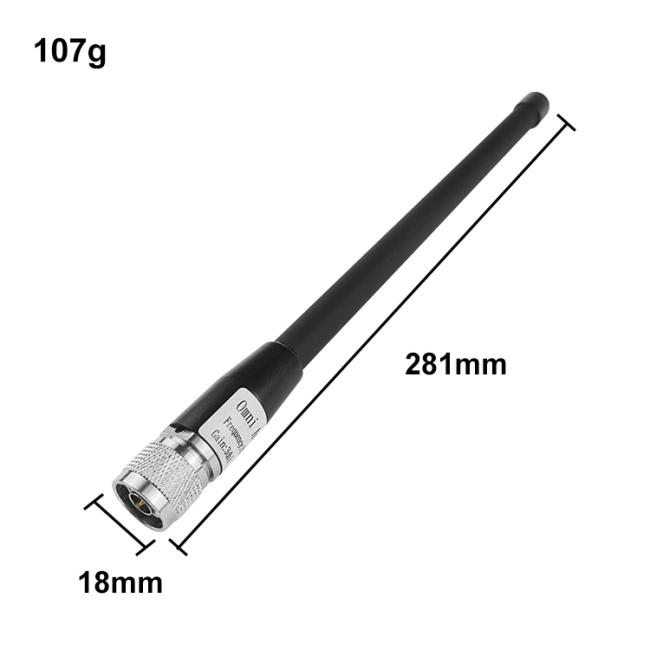

| Packing size(mm) | 281*18MM(8PCS) |
| Operational Humidity(％) | 10- 95 |
| Radome material | UPVC |
Main features:
1. High-power output supports connection to high-power devices
2. Waterproof, durable and high-gain
3. The small size makes transportation convenient
4. It adopts a horizontal polarization mode and radiates 360 degrees
5. Can be customized from 20MHZ to 6.5Ghz such as cell phone signal 2345GHz, WiFi2.4GHz, WiFi 5.8GHz , 5.2GHz ,VHF ,UHF , camera ,bluetooth ,LoJack ,etc.
Attention
1.Do not fold it with external force, as it may cause damage
2.The appropriate input wattage needs to be matched
3.Try to use it in an open and unobstructed area

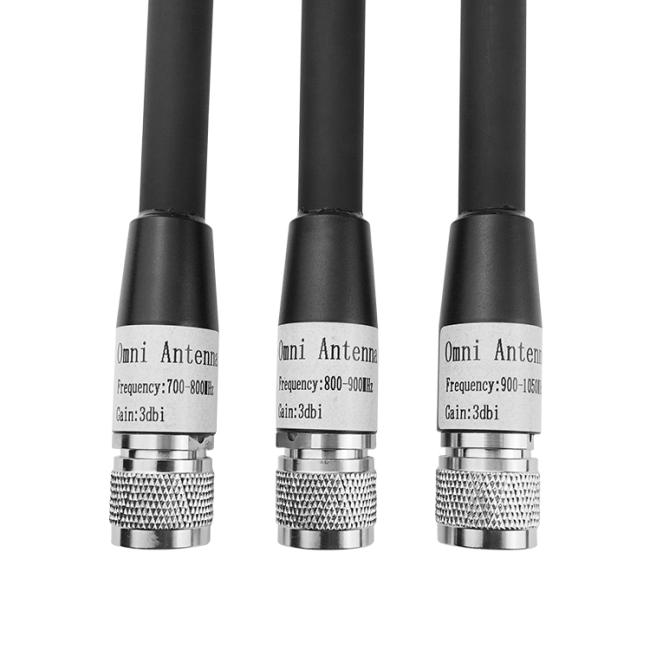

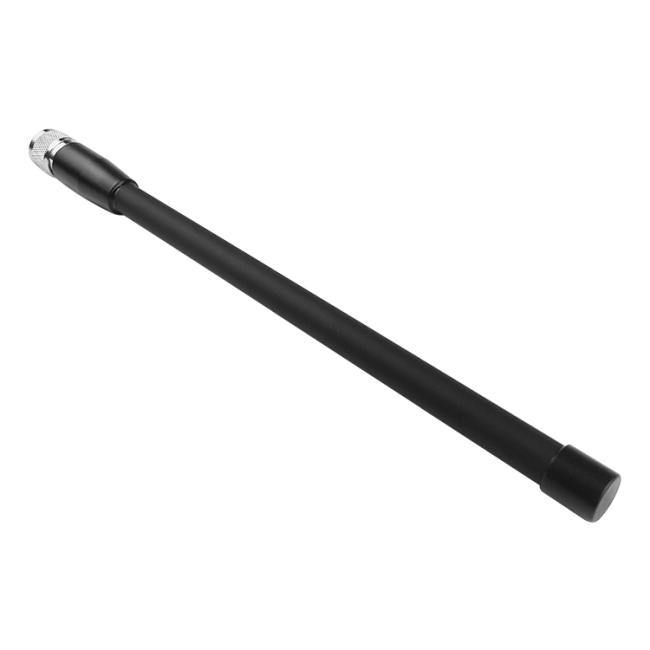

Pictures:
