ABS outshell 800-1600mhz 3.5dbi Circularly polarized antenna for jamming wirless signal
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 3 work days
Brand:
TeXin
Product Description
ABS outshell 800-1600mhz 3.5dbi Circularly polarized antenna for jamming wirless signal
This new designed omni antenna adopts circularly polarized method and RF technology . Compare with regular antenna circular polarized antenna has strong ability of transmit jamming signal and Stronger anti-interference capability .Jamming frequency bands support customization such as GNSS GPS PHS DCS GSM drone signal 868mhz 915mhz 1.2ghz 2345G WiFi5.8G,WiFi2.4G, WiFi5.2G,GPS , VHF ,UHF etc. And the shield range is up to 500-1000meters , very powerful . Which can be used for workplace ,classrooms , prison, examination ,etc.
| FrequencyRange | Customized |
| Gain(dBi) | 3.5±1dBi |
| VSWR | ≤2 |
| Polarization | Circular |
| Horizontal Beamwidth(0º) | 360° |
| Vertical Beamwidth(0º) | 65±10º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 100W |
| Inpur connector type | SMA-k |
| Packing size(mm) | 670*300*240mm |
| Antenna weight(kg) | 186g |
| Rated Wind Velocity(m/s) | 60m/s |
| Operational Humidity(％) | -30～70 º |

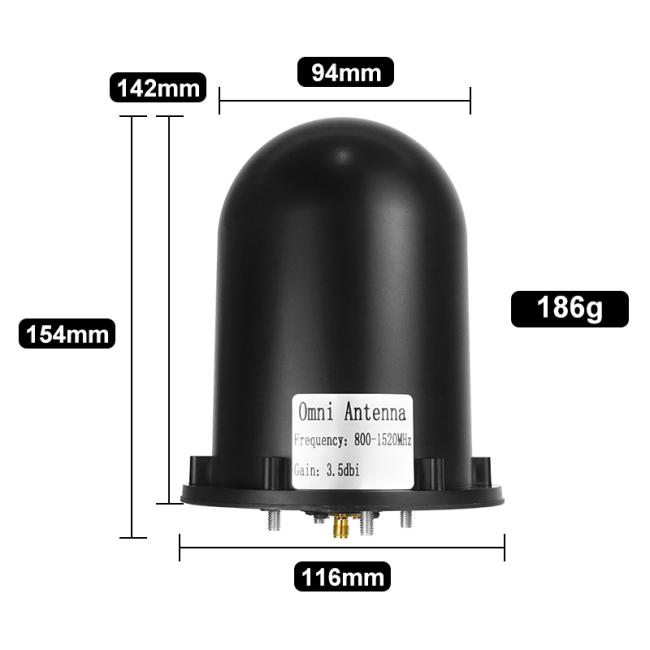

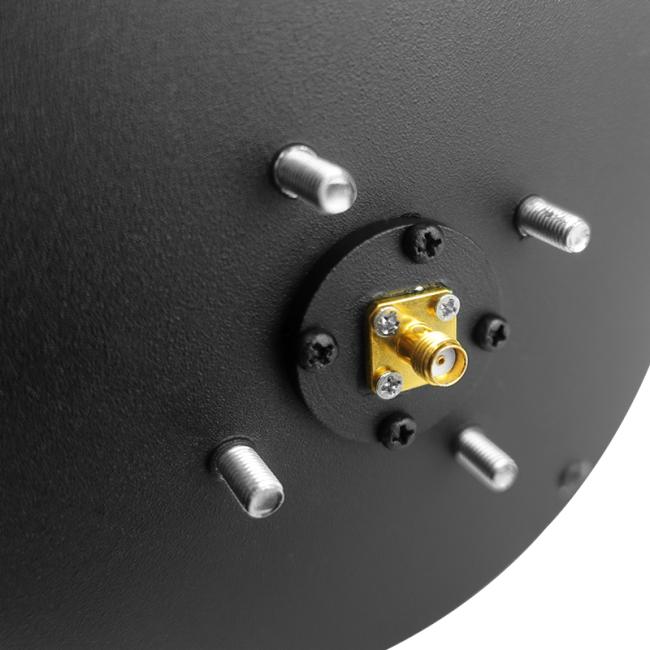

Pictures:
