Waterproof Directional Sector Base Station Antenna Wifi Gps 1.2ghz 1.5ghz 4band Port
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 3 work days
Brand:
TeXin
Product Description
Waterproof directional sector base station antenna wifi gps 1.2ghz 1.5ghz 4band port
700 MHz ~ 2700MHz Donor outdoor Antenna with Type-N male Interface for wifi 3G GSM CDMA DCS WCDMA Single band and Dual band Signal Repeater Amplifier.It features four interfaces, strong integration, and the ability to integrate ultra-wide signals. It covers a wide frequency band.

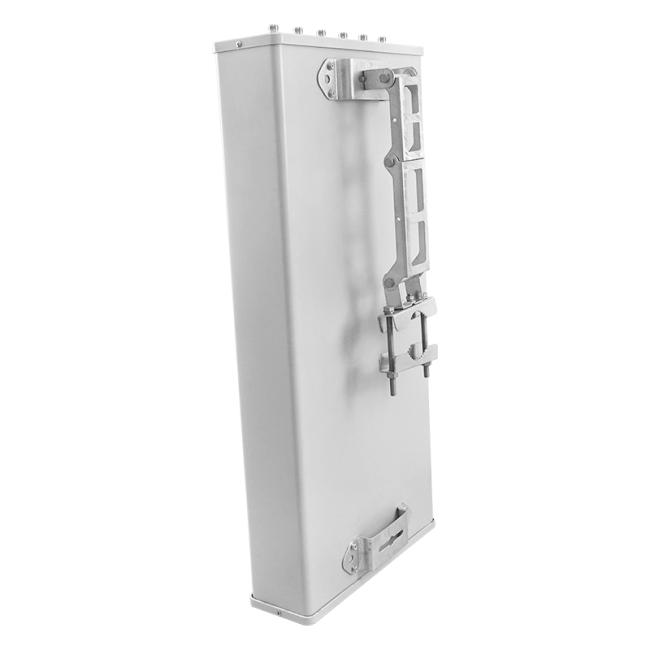

The product has a hook design on the back, allowing you to adjust the angle during installation.
1)GSM /EGSM/ CDMA800/DCS/PCS/ 3G/ AWS
2)Wireless communications and data transmission system Repeater
3)Outdoor Antenna Receiver.
Specification:
| Outdoor antenna | |
| Frequency Range | 700-2700MHz(customized) |
| Recommend Cover area | 1-30 kilometers |
| Bandwidth | 160/790MHz |
| Gain | 15dBi |
| F/B ratio | ≥25dB |
| VSWR | ≤1.7 |
| Polarization | Vertical |
| Max power | 100 W |
| Nominal Impedance | 50Ω |
| MECHANICAL | |
| Connector | N female |
| Antenna Dimension | 900*420*143mm |
| Weight | 9kg |
| Rated Wind Velocity | 60m/s |
| Vertical Beamwidth | 15/9 |
Pictures:
