High gain 800 900 2.4ghz 5.2ghz 5.8ghz spring dual band dipole omni fiberglass antenna
High gain 800 900 fiberglass spring omni dual band dipole antenna
The omnidirectional dipole dual-band antenna features manually modulated frequency bands, supports full-band customization, and is equipped with a spring and suction cup at the bottom to cushion vibrations. It can be used in conjunction with vehicle-mounted drone countermeasure equipment. It is an essential transmission antenna for drone countermeasure equipment, low-altitude security systems, and portable jamming devices.
Product Features.
*Full-band, all-around jamming capability effectively counters UAV image transmission signals (2.4GHz, 5.2GHz, 5.8GHz) and GNSS navigation frequencies.
* The spring structure can buffer vibrations and resist minor impacts, making it suitable for in-vehicle/portable devices.
*Two frequency bands integrated into one antenna, stable output and high cost performance.
*The shell is made of copper, which can withstand high-intensity impact.
*Adopt a high-quality telecommunications-grade feeder, which can be bent at any angle.
*The antenna root is reinforced, and the connection is more reliable and durable.
Specification:
| █Electrical Specifications | |
| FrequencyRange | 1200-1300 MHz |
| (type ) | omnidirectional dipole dual-band antenna |
| Gain(dBi) | 8dBi |
| VSWR | ≤1.5 |
| Polarization | vertical |
|
Horizontal Beamwidth(0º) Vertical Beamwidth(0º) |
360º 55±5º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | N |
| █Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | 20*100mm |
| Antenna weight(kg) | 2.05KG |
| Radome Color | block |
| Operating temperature(ºC) | -40～80 º |
| Installution Method | Threaded docking |

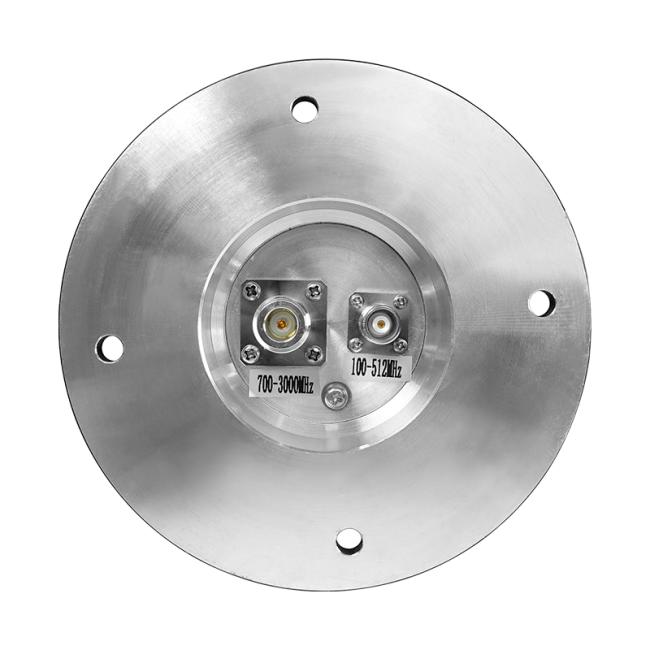

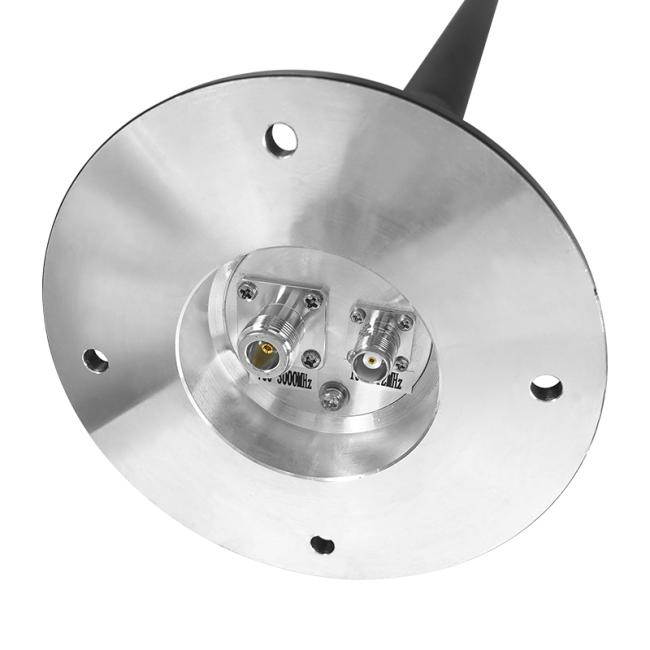

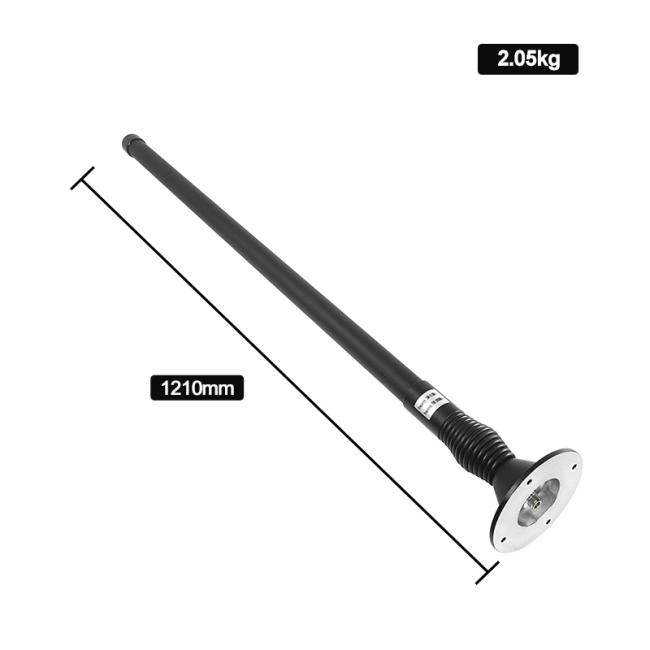

Pictures:
