Antenna Omnidirectional Fiberglass Antenna with Spring Damping LORA UVA Outdoor Antenna Customizable
Price:
Negotiable
MOQ:
1
Delivery Time:
Within 3 work days
Brand:
TeXin
Product Description
Antenna technical parameter
Anti bending omnidirectional antenna
| Frequency Range | Customized |
| Gain | 3±0.5dbi |
| VSWR | ＜2.0 |
| Polarization | Vertical |
| Horizontal Bandwidth | 360° |
| Vertical Bandwidth | 55° |
| Ovality | ±2db |
| Input Impedance | 50Ω |
| Maximum Input | 100W |
| Input Connector | N-J |
| Lightning Protection | DC Ground |

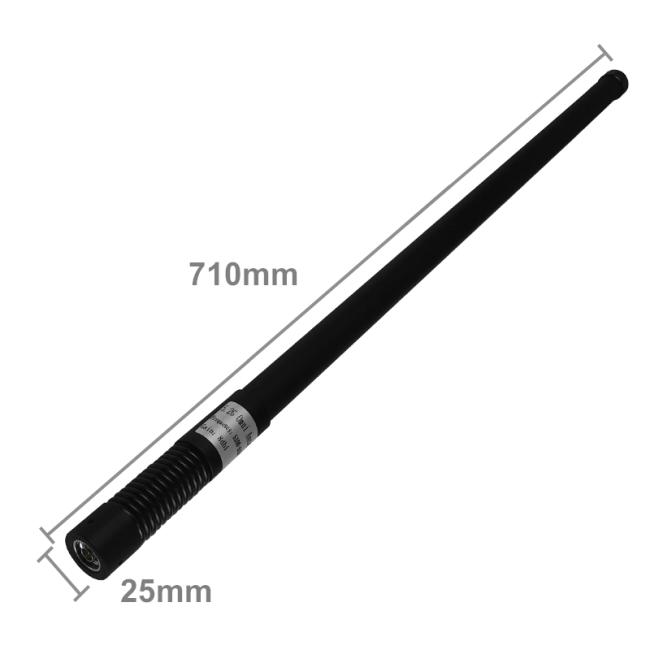

| Dimension | Ø25*710mm |
| Packing Size | 750*200*160mm(20pcs) |
| Antenna Weight | 758g |
| Rated Wind Velocity | 31m/s |
| Radiomen Color | Black |
| Radome Material | Fiberglass |
| Operation Temperature | -55-70°C |
| Installation Method | Machine installallation |
| Model No. | TX-W-BLG-D25L720 |
