100W wifi 2.4ghz long distance directional Yagi commnication antenna
100W wifi 2.4ghz long distance directional Yagi commnication antenna

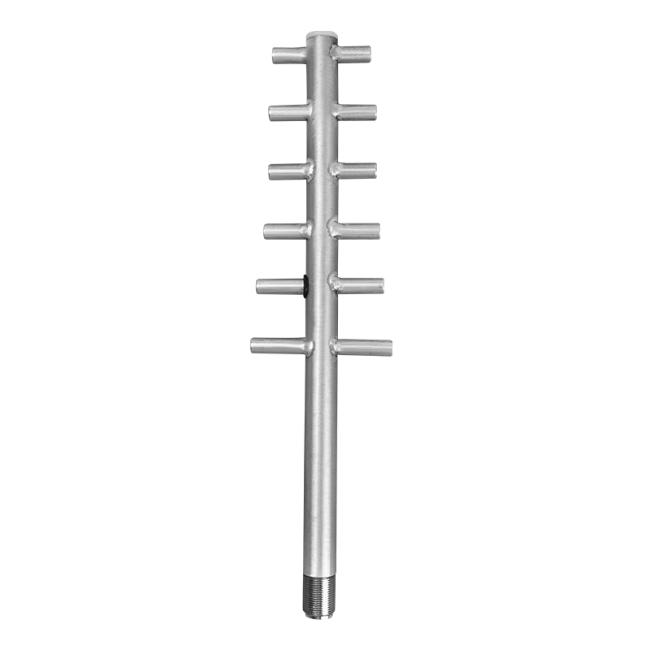

This 100W Yagi antenna is made of high-performance aluminum alloy, featuring a small size, light weight, and high gain, making it suitable for both indoor and outdoor use. It provides directional signal output, covering WiFi signals from 2400-2500MHz; other frequency bands are also available upon request.
Product features:
* Support frequency bands customization .
*Support phone signal 2345G,WiFi 5.2Ghz,2.4GHz,5.8GHz ,VHF,UHF ,GPS frequency bands customization for you need
* Aluminum alloy exterior shell: fast heat dissipation and durable use , good performance .
*High power 100w output
* Small size and light weight
Specifications :
| █Electrical Specifications | |
| FrequencyRange | 2400-2500MHz |
| Gain(dBi) | 10dBi |
| VSWR | ≤1.5 |
| Polarization | Vertical |

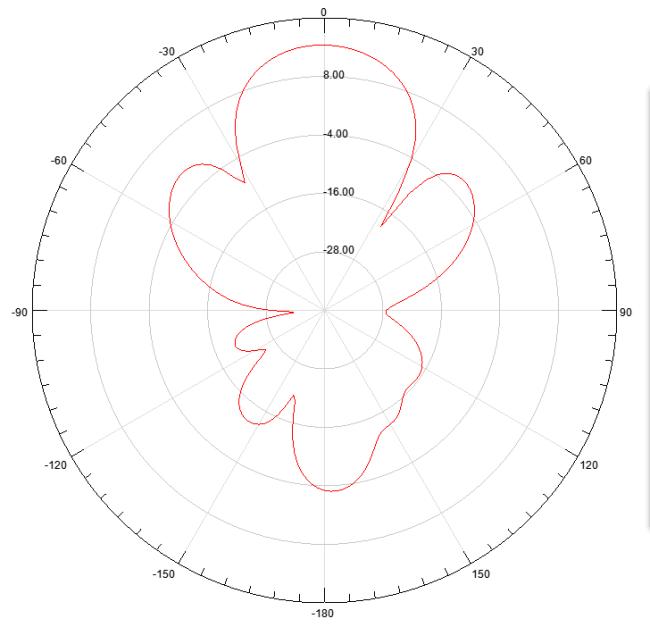

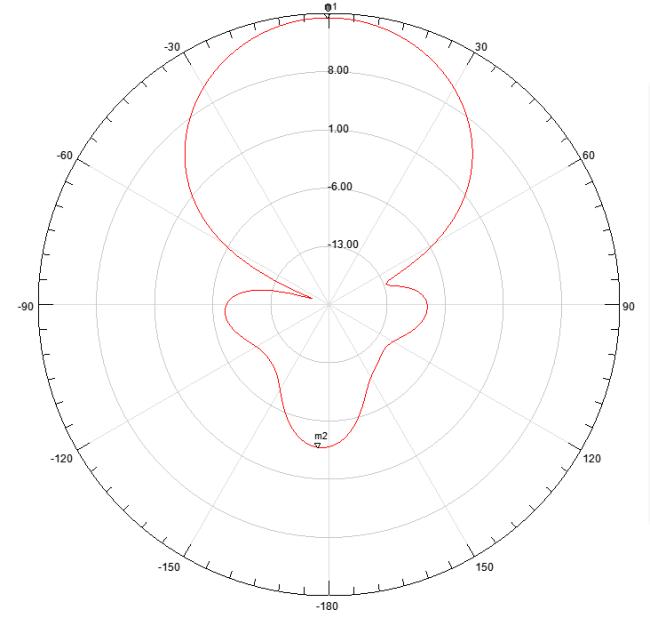

| Horizontal Beamwidth(0º) | 55±10º |
| Vertical Beamwidth(0º) | 30±10º |
| Front-to-back ratio(dB) | ≥18 |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 100W |
| Inpur connector type | N-K |
| Lightning Protection | DC Ground |
| █Mechanical Specifications | |

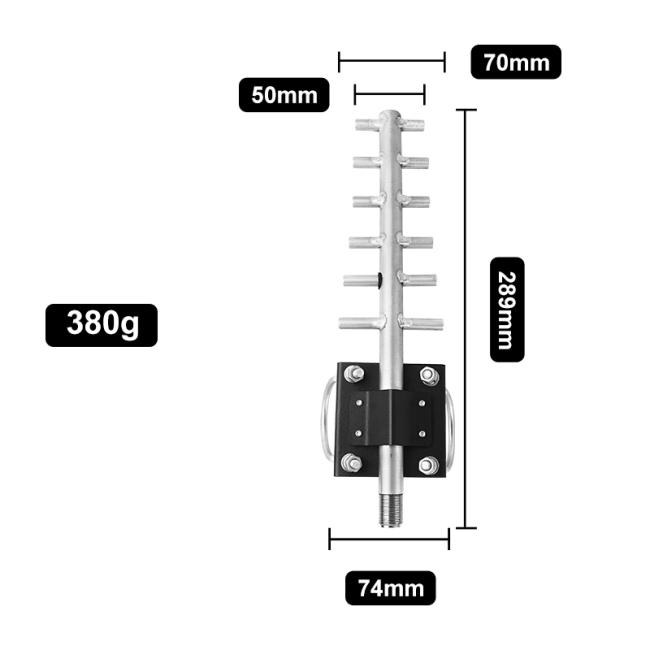

| Dimensionsmm(Height/Width/Depth) | 320*70*16mm |
| Packing | cotton |
| Antenna weight(kg) | 0.4K |
| Rated Wind Velocity(m/s) | 31m/s |
| Operational Humidity(％) | 10- 95 |
| Radome Color | silver |
| Radome material | aluminum |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Pole installation |
| Mounting hardware(mm) | Φ30～Φ50mm |
Pictures:
