50W 400- 2700MHz 24V-28V with circle protection for anti drone FPV UAV solution jammer module
50W 400- 2700MHz 24V-28V with circle protection for anti drone FPV UAV solution jammer module
product Introduction

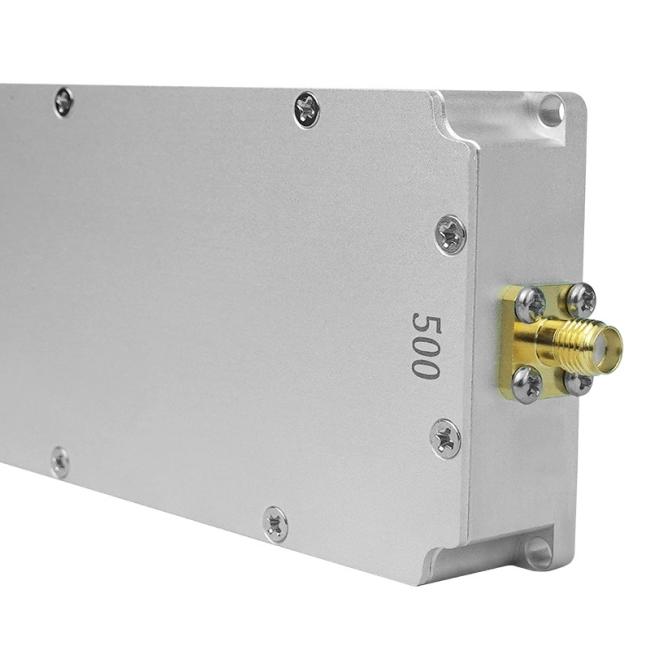

This is 50W with circle protection jammer module for anti FPV drone.Compare with common jammer module this 50W jammer module slowly up temperature when it operating .And this jammer module Bandwidth flat ,supporting customized multiple band 400-2700 MHz.Maching 3 electronic wire that Customers can operate by themselves.
Specification
| No. | Item | Data | Unit |
| 1 | Frequency | 400-2700 | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 4.1 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | SMA / Female | |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Power supply wire | Red+Black+Enable wire | |
| 10 | Enable Control | High ON Low Off | |
| 11 | Out shell Size | 146*55*20 | mm |
| 12 | Mount hole | 141*51 | mm |
| 13 | Weight | 320 | g |
| 14 | Work Temperature | -40~+65 | ℃ |
| 15 | Out shell material | Aluminum | |
| 16 | Vibration need | Car load OK | |
Features
- Outshell made of aluminium material which waterproof well heat resistant
- Multiple screw fixing spaces high quality protection
- Support 50w multiple band customization
- 24-28V voltage offered
- SMA/ female connector fluent signal transmit
Widely use in air protection security
Attention
- Use it before need test and use it need no shield environment
- when you connect power supply must related antenna
- when you installed seperate close band module
- when the out put power over high must matching cooling device
FAQ
Do you have the self development capacity to design the new and creative anti drone solution?
yes, TeXin is with the key know-how and thousands of project experience to offer a new anti drone solution from shape to inside design according to customer specific need.
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
