Indoor ceiling WIFI phone omindirectional Nfemale antenna for communication antenna
Indoor ceiling WIFI phone omindirectional Nfemale antenna for communication antenna
The antenna is omindirectional antenna using for communication field ,the frequency band 2G/3G/4G WIFI 5G the ceiling antenna need to be installed indoors, such as within the range of a signal blocker or signal booster. Lightweight structure Supports self-installation by customers.
Features
■ Wide band 698~960 / 1710~2700MHz, supports 2G/3G/4G.
■ Gain around 1.5dBi
■ VSWR≤2.5
■ABS waterproof material Industrial grade waterproof material
■ Cell phone ,WIFI,GPS application
Applications
■ Class room to cut phone signal

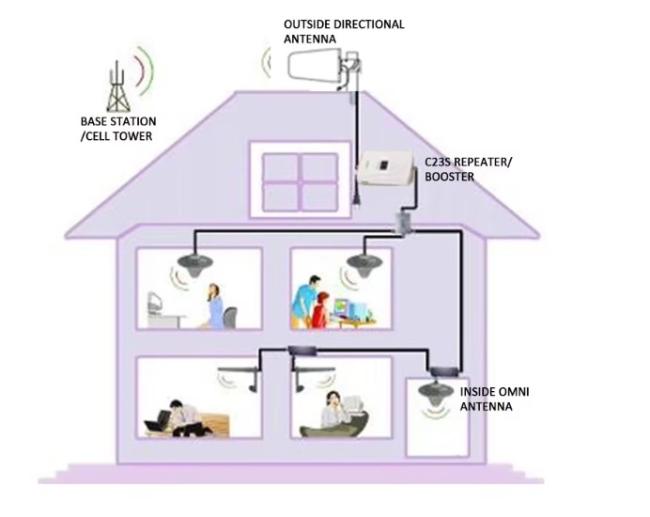

■ Meeting room applicated for signal booster
■ Home signal enhancement
| █Electrical Specifications | |
| Frequency Range | 300-400MHz |
| Gain(dBi) | 1.5dBi |
| VSWR | ≤2.5 |
| Polarization | Vertical |
| Horizontal Beam width(0º) | 360º |
| Vertical Beam width(0º) | 75º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Input connector type | N-K |
| Lightning Protection | DC Ground |
| █Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | ɸ180*86mm |
| Packing size(mm) | 270*120*270mm |
| Antenna weight(kg) | 0.22Kg |
| Rated Wind Velocity(m/s) | 60m/s |
| Operational Humidity(％) | 10- 95 |
| Radome Color | White |
| Radome material | ABS |
| Operating temperature(ºC) | -40～55 º |
| Installation Method | Ceiling mounting |
Ordering Information
■ Indoor for use
■ Match amplifier is best
■ WIFI ,GPS ,Drone defense antenna
