Customized 20W 17GHz 21GHz RF PA power amplifier module for radar and satellite industries.
Price:
Negotiation
MOQ:
1
Delivery Time:
5-8 days
Brand:
TeXin
Product Description
Customized 20W 17GHz-21GHz RF Power Amplifier Module
This 20W ultra-wideband power amplifier (17GHz-21GHz) is designed for high-performance applications in microwave communication, radar detection, and satellite communication. As part of the Ku/Ka edge band power amplifier category, it delivers exceptional bandwidth, power, efficiency, and stability.
Product Overview
Developed and manufactured by Shenzhen Texin Electronics, this 20W 17GHz to 21GHz broadband power amplifier features a compact design with 100% DC and RF full-process testing. It complies with lead-free and RoHS standards and operates in temperatures from -20℃ to +60℃. With anti-interference, shock resistance, and long lifespan characteristics, it ensures continuous stable operation and reduces equipment failure rates.
Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Frequency | 17000-21000 | MHz |
| Test Voltage | 22 | V |
| Current | 3.7 | A |
| Output Power | 20 | W |
| Gain | 43 | dB |
| Output Stability | 1 | dB |
| Connector | SMA/Female | |
| Output Connector VSWR | ≤1.30 (No power and VNA test) | |
| Power Supply | Red+Black+Enable wire | |
| Enable Control | High ON Low Off | |

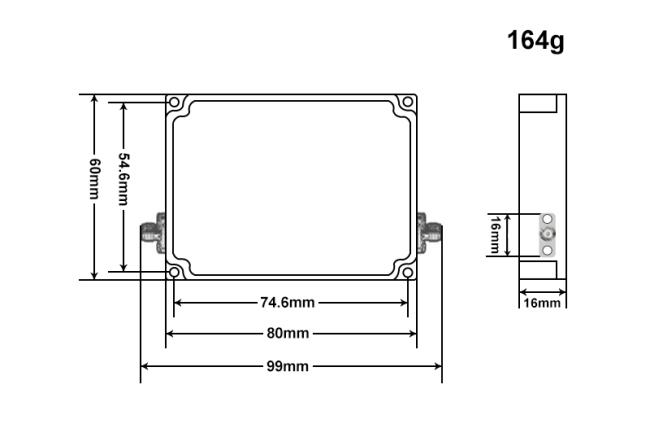

| Dimensions | 80*60*16 | mm |
| Mount Hole | 80*60 | mm |
| Weight | 164 | g |
| Operating Temperature | -40 to +65 | ℃ |
| Housing Material | Aluminum | |
| Vibration Resistance | Car load OK | |
Key Features
- Precise Broadband Coverage: Covers the entire 17GHz-21GHz frequency band (compatible with 17.3-21.2GHz Satcom band) without requiring additional adjustments or segmented debugging
- Integrated Design: Equipped with integrated power detector for system diagnosis and maintenance, with all input/output ports fully matched at 50Ω
- Advanced Ultra-Wideband Technology: Maintains stable output across ultra-wideband frequencies, meeting strict high-end application requirements
- Environmental Adaptability: High-quality aluminum alloy housing with sandblasting oxidation treatment provides excellent heat dissipation, corrosion resistance, and impact resistance
Product Images
Applications
- Satellite Communication: Ground station signal amplification and satellite terminal signal enhancement to increase communication distance and stability
- Radar Detection: civilian radar systems for airborne, shipborne, and ground radar applications
- National Defense & Aerospace: RF signal amplification for defense communication and aerospace equipment meeting grade standards
- Microwave Testing: Core amplification component for microwave testing equipment and RF testing applications
Frequently Asked Questions
- What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples. - What is the price of the 100W anti-drone jamming module?
Prices vary depending on the frequency band. Please contact us for specific pricing. - What payment methods do you accept?
We accept T/T, PayPal, USDT, Alipay, WeChat, and other payment methods. - What is the delivery time?
Orders are typically shipped within 5-7 days after placement.
