50W Jamming Module with Circulator for Anti-Drone UAV Fpv Defense Systems
Price:
Negotiation
MOQ:
1
Delivery Time:
2 Days
Brand:
TX TELSIG
Product Description
TX Long Distance Jamming 50W 100-7200MHz Anti-Drone Power Amplifier Module for Government
It is a wireless information security module dedicated to 100-7200MHz signals. This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.
Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)
Technical Specifications
| No. | Item | Data | Unit |
|---|---|---|---|
| 1 | Frequency | Customized | MHz |
| 2 | Test Voltage | 28 | V |
| 3 | Current | 4 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output Stability | 1 | dB |
| 7 | Connector | SMA / Female | |
| 8 | Output Connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Power Supply Wire | Red+Black | |
| 10 | Enable Control | High ON Low Off | |

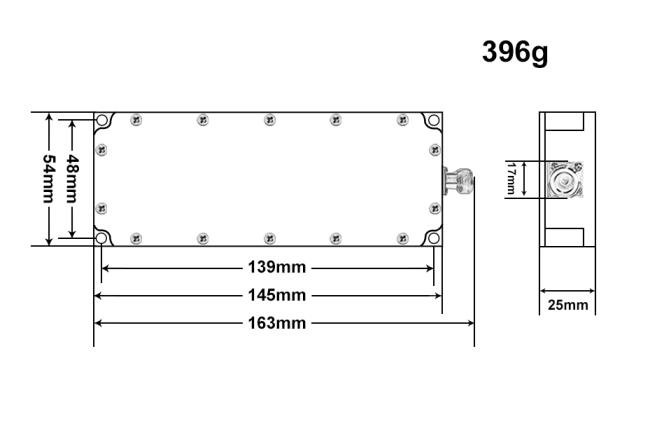

| 11 | Out Shell Size | 145*54*20 | mm |
| 12 | Mount Hole | 17*25 | mm |
| 13 | Weight | 396 | g |
| 14 | Work Temperature | -40~+125 | ℃ |
| 15 | Out Shell Material | Aluminum | |
| 16 | Vibration Need | Car load ok | |
| 17 | Input | 0-10dbm |
Key Features
- 50W output with low power consumption
- Lightweight 396g design suitable for FPV jammer devices
- Aluminum shell with waterproofing and excellent heat dissipation
- Industrial grade construction with no built-in signal source
- Capable of amplifying signals over long distances
- Power amplifier with built-in signal source capability
![]()
Usage Precautions
- Thorough testing required before deployment
- Always connect antenna before powering on
- Install separate close band modules when required
- Use appropriate cooling devices when output power exceeds recommended levels
Frequently Asked Questions
Are you an anti-drone module and jammer manufacturer?
Shenzhen TeXin Electronic Co., Ltd. has over 10 years of experience in China. We independently develop and produce high-tech, professional anti-drone modules, anti-drone signal jammers, and drone detectors. We also provide antennas, heat sinks, and power supplies.
What is the customized frequency range and output power of the anti-drone jammer module?
TeXin anti-drone modules typically offer 5W to 300W output with frequency ranges from 100MHz to 6300MHz. The usual bandwidth is approximately 200MHz (for example, 2300-2500MHz). We can customize specifications according to specific customer requirements, even if they fall outside these standard ranges.
