High power 100W1.2ghz 2.4ghz ldmos circulator GPS drone defense wireless signal blocker module
High power 100W1.2ghz 2.4ghz ldmos circulator GPS drone defense wireless signal blocker module
This 100W LDMOS drone jamming module uses an LDMOS chip and can jam 90% of drones on the market from a distance within 3-5 seconds. Under 28V voltage conditions, it typically maintains a maximum output of around 100-110 watts. It can be used by government departments to protect privacy and security, as a teaching tool in schools, and to protect public safety in public places.
Specifications:
Output Power:100W
Shielding Radius: Up to 500-1000 meters (depends on the drone jammer device )
Power supply: 24-28V

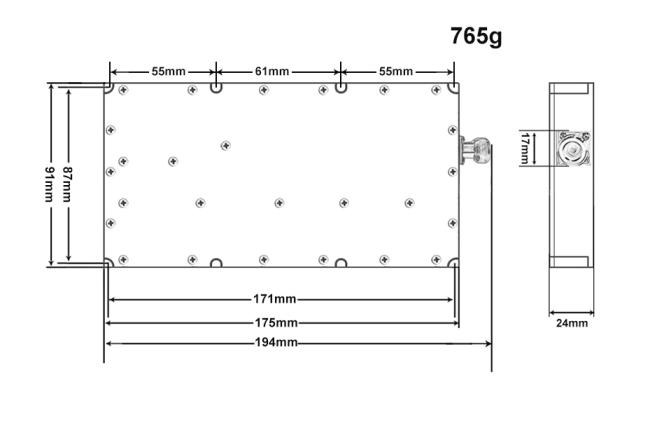

Size :194*91*24mm
Weight : 765g
| 100W RF Power Amplifier Specification | ||||
| No. | Item | Data | Unit | Notes |
| 1 | Frequency | 2600-3600 | MHZ | Bandwidth customize support |
| 2 | Work Temperature | -20~+70 | ℃ | |
| 3 | Max Output Power | 100 | W | |
| 4 | Input power | 5 | dBm |
0-10dbm optional Regular type with VCO inside no need input |
| 5 | Work Voltage | 24-28 | V | |
| 6 | Max Gain | 50 | dB | |
| 7 | Max Current | 10 | A | |
| 8 | Impedance | 50Ω | ||
| 9 | Output Connector | N/F | Customized | |
| 10 | Power Amplifier Efficiency | 45 | when Max Output | |
| 11 | Switch Control | high low level current |
V |
24-28V Or Customized |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |
| 14 | Size | 194*91*24 | mm | |
| 15 | Weight | 0.765 | Kg | |
Notes for jamming distances:
The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
An antenna needs to be connected before use to prevent the module from being burned out.
When the temperature is too high, additional heat dissipation devices are needed.

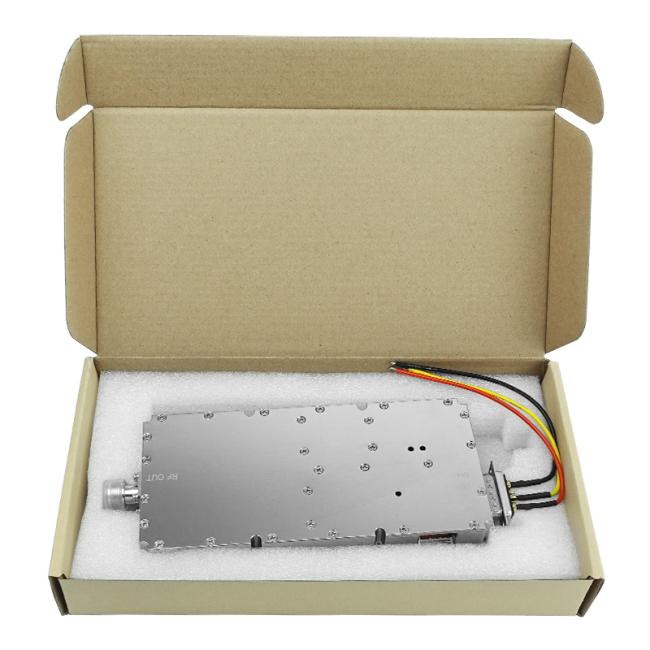

Package contents:
