Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female antenna omnidirectional
Price:
Negotiation
MOQ:
1
Delivery Time:
In 2 work day
Brand:
TX TELSIG
Product Description
Waterproof Lora 1.2ghz 1200-1300mhz uav four leaf clover N-female omnidirectional antenna
Product introduction:
TX-SYC12001300 is specially use in outdoor four leaf clover antenna ,the antenna support different frequency band customization such as 300mhz 400mhz 500mhz 1200mhz 2.4ghz 5.8ghz .Taking vertical polarization Its anti-interference performance in complex electromagnetic environments has been further optimized.On the other hand, the antenna adopts a waterproof structure, making it more suitable for outdoor use.widely used in the family ,cars ,etc, better protect one's privacy .
Specifications :
| Electrical Specifications | |
| Frequency Range | 1200-1300MHz |
| Gain | 3.5dBi |
| VSWR | <1.5 |
| Polarization | Vertical |
| Non-circularity | ±2dB |
| Input lmpedance | 50Ω |
| Max Input Power | 100W |

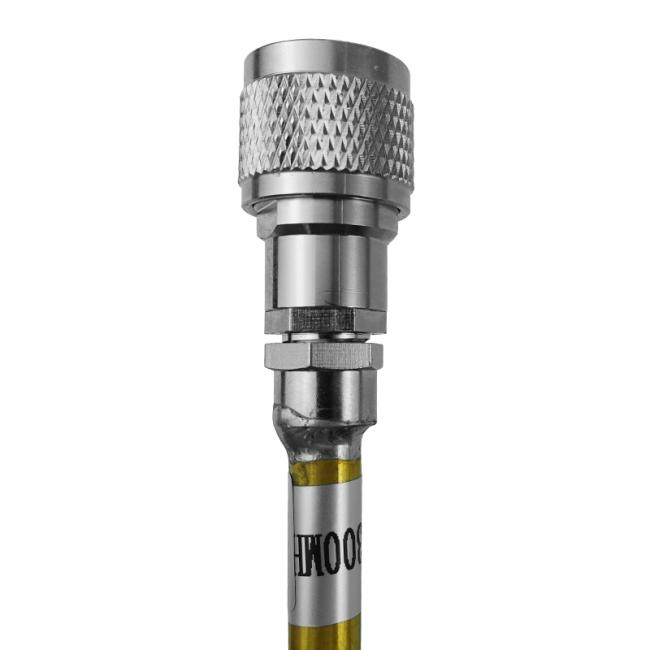

| Connector | N Female |
| Mechanical Specifications | |

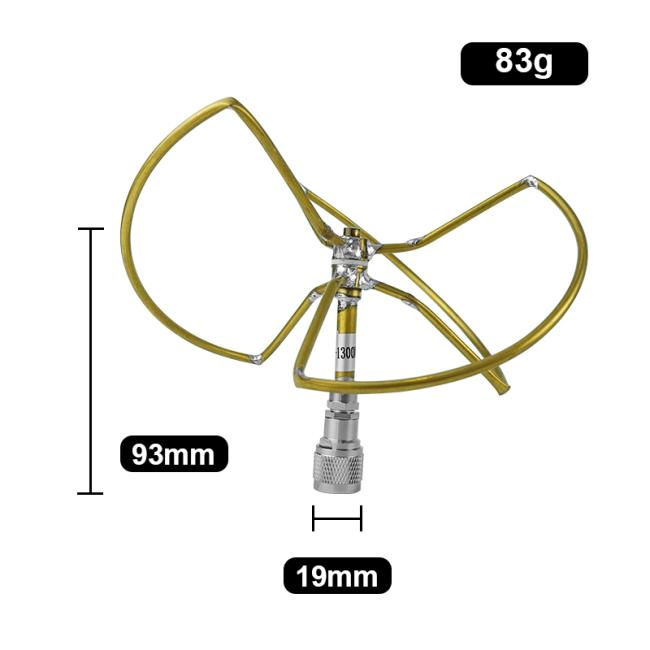

| Dimensions | 93*19mm |
| Weight | 84g |
| Radome Material | fiberglass |
| Radome Color | Gold |
Product features :
- 1. The frequency band customized as requirement, can be compatible multi-signal at the same time;

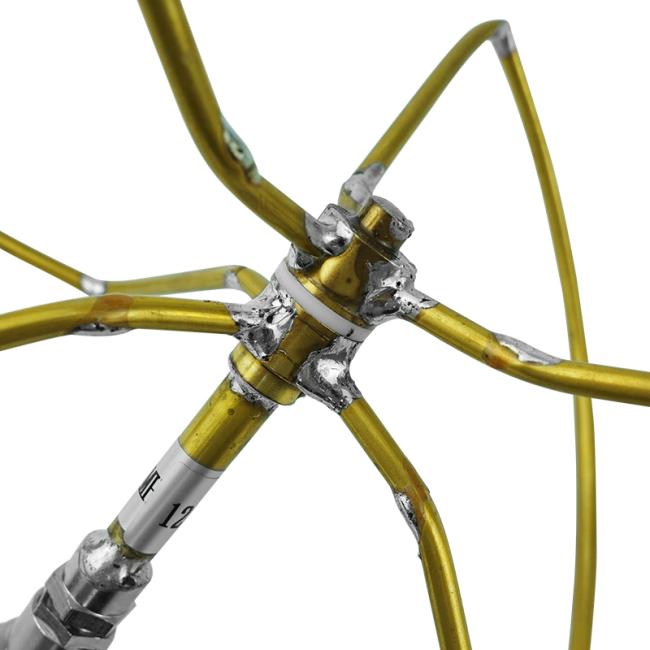

- 2. Shaped like a four-leaf clover, radiating in all directions
- 3. Outshell is a fiberglass , wear-resistant, scratch-resistant, good heat dissipation;
- 4. Updated high gain vertical four leaf clover antenna ;
- 5. Pocket size, compact design;
- Out door use highly efficient to jamming wireless signal such as drone UAV FPV DJI;
- Made of high-quality materials, with low wear and tear and limited durability.
- Reduces energy loss at high altitudes; interference effect is significant.
- Support signal of 2g 3g 4g 5g and wifi gps VHF UHF Lojack ect.
- Packing with kraft box and internal with foam, more safety for shipment
Pictures:
