Customized LDMOS 433mhz 800mhz 900mhz 2.4ghz 28V RF 50W drone FPV jammer module Privacy protection outdroos
Customized LDMOS 433mhz 800mhz 900mhz 2.4ghz 28V RF 50W drone FPV jammer module Privacy protection outdroos
TX-PD50W jammer module is the high power 50W anti drone module . The wireless signal jamming module was designed portable to shipping and high efficient to jamming , with customization frequency bands(that is optional) and can be coverage wireless signal 400mhz 500mhz 800mhz 2G, 3G, 4G wifi and GPS, disable signal of all typedrone fpv signal in seconds.
The blocker signal jammer module with LDMOS solution and circulator designed , of course, the frequency is optional, RF signals like 315, 433, 868, etc, welcome to contact us with your requirements and we will help to design the most suitable plan for you.
TXtelsig is the leading manufacturer to design and produce drone signal jammer module ,antenna ,anti drone system with professional and experienced research and development teams. We have the strength to provide you with the most cost-effective products and plans.
Features
- The signal jammer high power 50W and frequency 2400mhz , but can option different frequency band by your needs
- The jammer is designed light weight , portable size for easy to install.
- Support jamming multi-signal, 800mhz 900mhz 2400mhz 5200mhz in second.
- High output power + high gain omni-antennas= more efficient
- Shielding range up to 500-1000 meters (depends on surrounding signal strength)
- Aluminum material: High heat resistance, waterproof, windproof, and drop-resistant.
- Independent frequency band switch for flexible using and power save
- Equipped with positive and negative terminals and an enable wire, it can be installed in vehicles and on mobile devices.
- Can use with 24V -28V voltage
| 2.4GHz 50W RF Power Amplifier Specification | ||||
| No. | Item | Data | Unit | Notes |
| 1 | Frequency | 2400-2485 | MHZ | |
| 2 | Work Temperature | -20~+70 | ℃ | |
| 3 | Max Output Power | 50 | W | |
| 4 | Work Voltage | DC28 | V | |
| 5 | Max Gain | 47 | dB | |
| 6 | Flatness | ±1 | dB | |
| 7 | Max Current | 4 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | SMA/F 50Ω | Customized | |
| 10 | Power Amplifier Efficiency | 45 | when Max Output | |
| 11 | Switch Control | high low level current | V | 0V off /0.6 on |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |

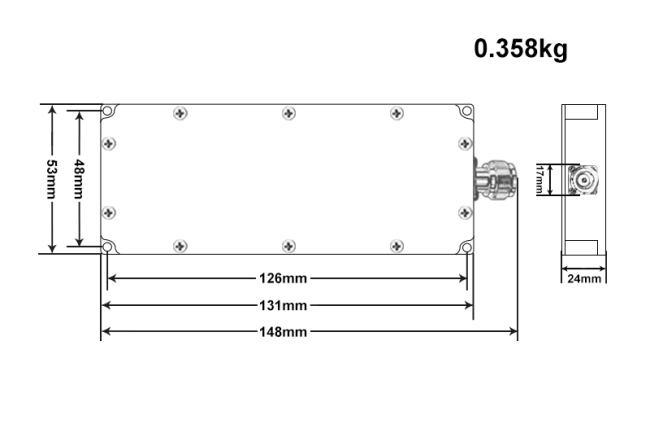

| 14 | Size | 132*53*20 | mm | |
| 15 | Weight | 0.358 | Kg | |
Notes for the jamming distances:
The jamming distances we mentioned are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
The 10 antenna jammer can shield GPS signal up to 50 meters usually
But cause there are so many signals of cell phone and so many base station, the jamming range depend on the surrounding signal strength.
