Panel Antenna FPV counter system Parts For SMA Female Signal blocker RF out door Coverage for air security
Panel Antenna for N-female FPV counter system RF outdoor coverage for air security
This flat panel antenna was independently developed and manufactured by Shenzhen Texin Electronics. When used with existing anti-drone equipment, the anti-drone signal can be transmitted in the range of 500-1000. It is easy to use and the angle can be controlled at will according to the target object to achieve a strong anti-drone effect.TXtelsig is the professional manufacturer for the signal jamming and wireless coverage product.
Specification
| Brand-TXtelsig | Model No. | TX-A-PB |
| Frequency range(MHz) | 806~960 | 1710~2700 |
| Gain | 7dBi±1dB | 8dBi±1dB |
| Horizontal Beamwidth | 90±15 deg | 75±12 deg |
| Vertical Beamwidth | 65 deg | 60 deg |
| Front to Back Ratio | ≥6 dB | ≥8 dB |
| VSWR | ≤1.4 | |
| Input Impedance | 50 Ω | |
| Polarization | Vertical | |
| Maximum Power | 50 W | |
| PIM (IM3) | ≤-107dBm @33dBm*2 | |
| Connector Type | N-Female | |
| Operating Temperature | -40 to +70 C deg | |
| Relative humidity | 5 to 95 % | |
| Dimensions | 210x180x44 mm | |
| Net weight | 430 g | |
| Cable Length | 260 mm | |
| Radome Material | ABS | |
| Radome Colour | White | |
| Operating Temperature | -40 to +70 C deg | |
| Relative humidity | 5 to 95 % | |
| Rated Wind Velocity | 210 km/h | |
Features

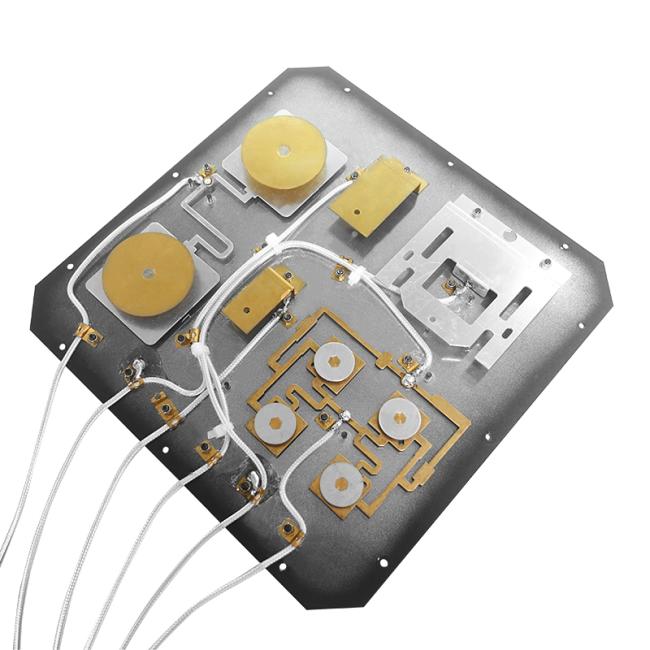

1.The antenna integrates 8 frequency bands and uses a high-gain PCB board.
2.The antenna housing has a compact structure, is waterproof, corrosion-resistant, and is easy to install and carry.
3.Easy to operate and highly flexible
5.High gain, typically 8~20dBi, suitable for long-distance point-to-point countermeasure signal output.
