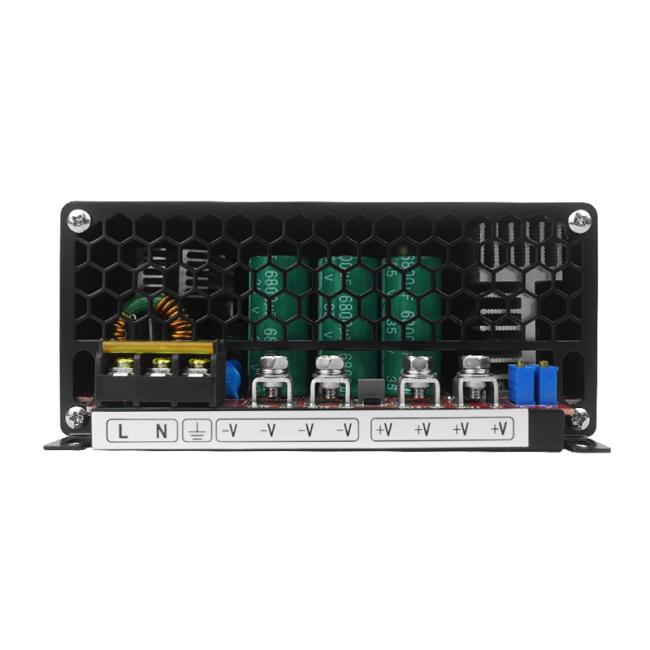

Customized High power power supply 3000W 30V32V36V 100A with fans AC to DC
Customized High power 3000W 30V32V36V 100A with fans power supply AC to DC
TXDC3000W AC to DC power supply can applicate various kinds of area that it produce by Shen Zhen Texin electronics Co.,ltd which has a battery factory in Shen Zhen China .We can meet your requirement customized like 600W 700W 1000W 2000W 300W ect .The TXDC3000W AC to DC power supply can use in multiple area like drone signal jammer ,the signal communication device .
TheTXDC3000W has passed quality testing and possess various certifications. Inquiries and orders are welcome.
Product Feature
1. Factory manufactured for safety and reliability
2. Low power consumption and high efficiency
3. Built-in fan design for efficient heat dissipation
4. Ultra-high power 3000W, supporting the operation of large equipment
Specification
| Parameter | ||
|
model Parameter |
TXDC2000W | |
| Fetures | Output voltage | 0-30Vadjustable |
| Output current | 100A | |
| Current range | 0-100A | |
| Wave | 320mVp-p | |
| Output accuracy | ±1% | |
| Line adjustment rate | ±100% | |
| Load regulation | ±100% | |
| Rated power | 3000W | |
| Output adjustable range | ±100% | |
| Establish, rise, and maintain time | 250ms,30ms,20ms/220VAC | |
| Input Fetures | Input voltage range | 200-260VAC |
| Input current | 22A | |
| Frequency | 47-63HZ | |
| efficiency | 92% | |
| Inrush current | 40A/230V | |
| Leakage current | ＜2Ma/230V | |
| Protective features | Overload protection | 105-110%Rated power, constant current step-down |
| Other functions | Fan temperature control speed adjustment | |
| Environment | -40℃-+50℃@100%LOAD,+60℃@60%LOAD,20%-90%RH | |
| Storage temperature | -20℃-+85℃,10%-95%RH | |
| Humidity drift | ±0.03%/℃(0-50℃) | |
| vibration | 10-500HZ,2G 10min/1cycle,PERLOD ROR 60min.EACHAXES | |
| Safety | MEET GB4943 | |
| Pressure resistance | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O-P/FG:0.5KVAC 1min | |
| Insulation resistance | I/P-O/P,I/P-FG,O/P-FG : 500VDC/100M Ohms | |

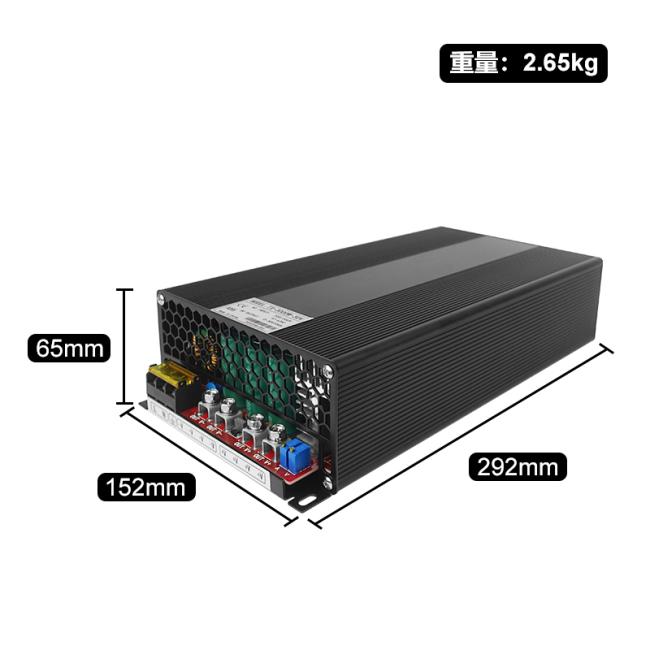

| Other | Size | 292*152*65mm |
| Single weight | 2.65kg | |
| Packing | 6pcs/pieces | 17KG/pieces |
Application
1. Movie, Theatre, Hospital, Religion Places, Churches
2. School, University, Class room, Libraries
3. Prison, Government
4. Petrochemical Industry
5. Sports V enues
6. VIP convoy protection
7. Bomb Prevention&Disposal
