wide band directional 100-1000mhz Horn antenna applicated communication area
wide band directional 100-1000mhz Horn antenna applicated communication area

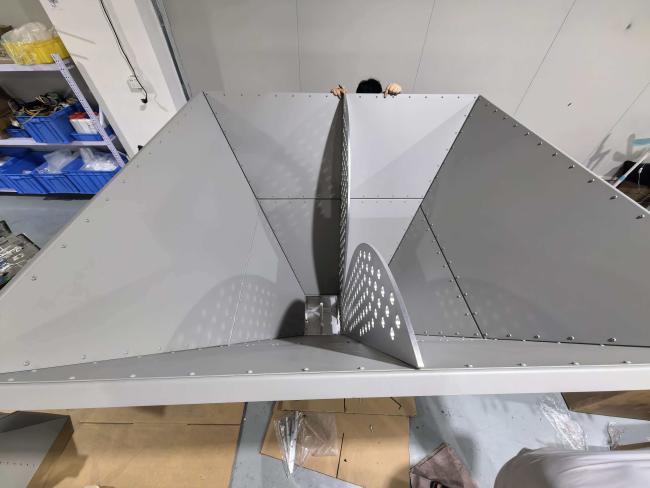

100W 100-1000MHz Double-ridged horn antenna can cover frequency band 100-1000mhz , It can output stably in complex and harsh environments without interference. It is commonly used in satellite communications, signal base station construction, and drone countermeasure equipment.
Product features
1.ultra band cover 100-1000mhz in one horn antenna
2. One receiving port, the signal radiates 360°.
4. The aluminum casing allows it to adapt to complex environments.
5.High power 100W less than2.5of VSWR
Specifiation
| No. | Item | Data | Unit |
| 1 | Frequency | 100-1000 | MHz |
| 2 | Output | 100 | W |
| 3 | VSWR | 2.5 | |
| 4 | Gain | 5-10 | dBi |
| 5 | Polarization | Vertical | |
| 6 | Input Impedance | 50Ω | |
| 7 | Connector | N Female | |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Lightning Protection | DC Ground | |
| 10 | Power supply wire | Red+Black+Enable wire | |
| 11 | Enable Control | High ON Low Off | |

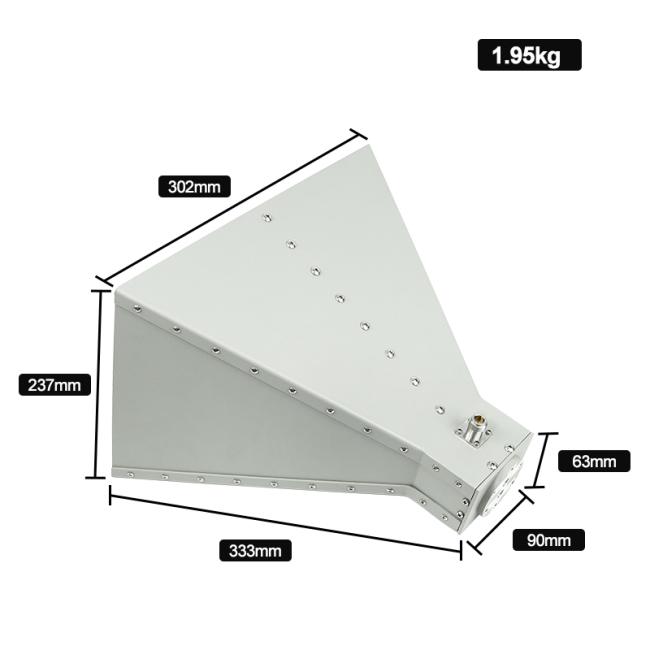

| 12 | Out shell Size | Depends on the frequency | mm |
| 14 | Weight | 1.95 | kg |
| 15 | Work Temperature | -40~+65 | ℃ |
| 16 | Out shell material | Aluminum | |
| 17 | installation | Machine installation | |
Application
Such as Galleries, Church, Training centre , temple, bank, factory, transportation, airportsVIP Convoy, law enforcement, important events, plant protection, agriculture etc.
