Waterproof wifi 2.4ghz 5.8ghz 10W dual band drone signal extender outdoors Drone enthusiasts
Waterproof wifi 2.4ghz 5.8ghz dual band drone signal extender outdoors Drone enthusiasts
The waterproof wifi 2.4ghz 5.8ghz dual band drone signal extender can enhence the image transmit of drone .Outshell using high performance waterproof material that Unaffected by harsh environments.The wifi 2.4ghz 5.8ghz dual band drone signal extender each output 10W .It is more competitive than ordinary 5W drone power boosters on the market.
Product Feature :
Maximum output power 10W
Ultra-large capacity battery, 6400mAh
2.4G/5.2G/5.8G Tri-band dual-port working at the same time, free switching
All-aluminum shell, better cooling effect
Specifications :
| Number | Items | Specifications | |
| 1 | Frequency Range | 2400-2500MHz | 5150-5850MHz |
| 2 | Max Output Power | 40dBm(10W) | 40dBm(10W) |
| 3 | Antenna Gain | 15dB±1 | 18dB±1 |
| 4 | Battery Capacity | 6400mAh | |
| 5 | Receiving Gain | 16dB±1 | 16dB±1 |
| 6 | Transmission Gain: | 18dB±1 | 18dB±1 |
| 7 | Input Trigger Power | Min:3dBm Max:23dBm | Min:3dBm Max:23dBm |
| 8 | EVM | 3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz | 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz |
| 9 | Noise Figure | ＜2.5dB | ＜2.5dB |
| 10 | Current Supply | 2.2A@Pout 40dBm 12V | 2.2A@Pout 40dBm 12V |
| 11 | TX/RX Switch Time Delay | ＜1 us | |
| 12 | Charging Voltage | 22V/1.2A | |
| 13 | RF Connector | N | |
| 14 | Operating Temperature | -30℃～+70℃ | |
| 15 | Storage Temperature | -40℃～+150℃ | |
| 16 | Operating Humidity | Up to 95% rel. humidity | |

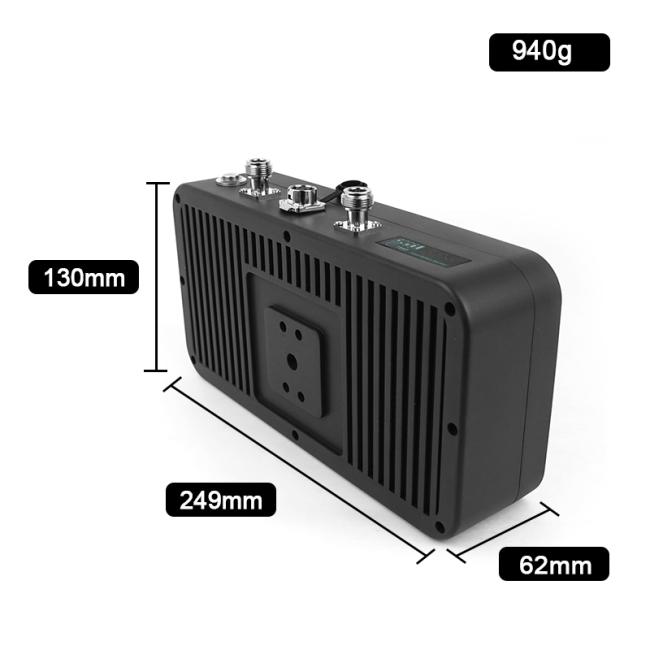

| 17 | Shell Size | (mm) | |
| 18 | Shell Material | Aluminum | |
| 19 | Net Weight | Kg | |

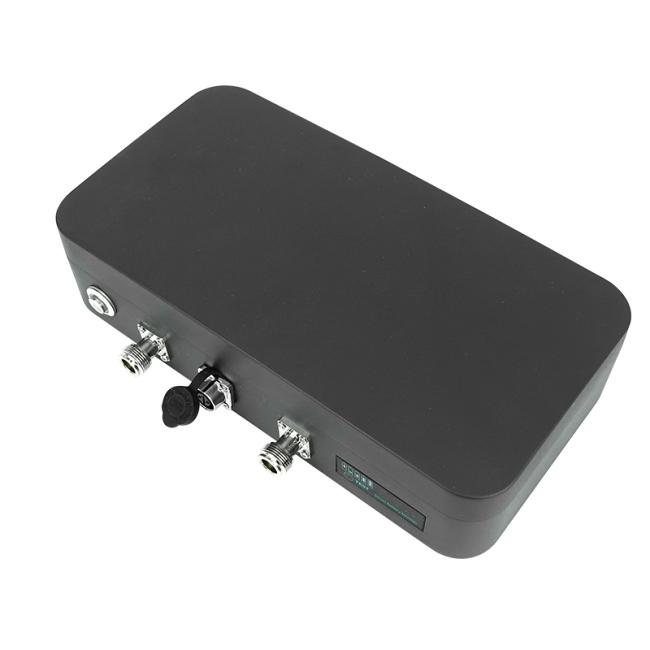

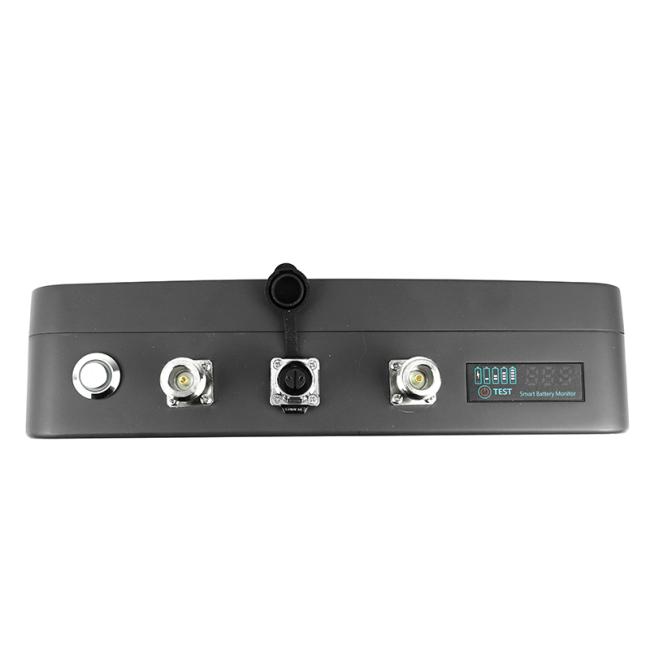

Pictures :
