Customized GaN 433mhz 800mhz 900mhz 2.4ghz 28V RF 50W drone FPV jammer module Drone protection outdroos
5725~5850MHz 50W Anti-Drone Moudle
1.Product Description
The TX60100 - 5800MHz 28V 100W anti-drone power amplifier moudle is specifically developed for 5 . 8GHz anti drone applications . This is a high-power, high-efficiency, and highly reliability product with internal low-temperature drift VCO and small signal control switch, which has good anti jamming effect for frequency hopping
drones . It has a built-in isolator that can provide standing wave protection function .
2. Electrical Characteristics
| Characteristics | Min. | Typ. | Max. | Unit | Conditions |
| Frequency | 5725 | 5850 | MHz | ||
| Output Power | 50.2 | 50.5 | 51.0 | dBm | |
| Operating Voltage | 28 | 32 | V | ||
| Operating Current | 7.6 | A | |||
| Efficiency | 55 | % | |||
| Power Gain | / | dB | Amplifier application |
3. Interface Definition
| Interface | Description | Connector type | Electrical Characteristics |
| RFIN | RF signal input (power amplifier application) | SMA | 50Ω |
| RFOUT | RF signal output | SMA | 50Ω |
| VCC | Supply Voltage | feed-through capacitor | +28V±1V |
| VEN | Enable signal (optional) | feed-through capacitor | +1V～+28V |
4. Working and storage environment requirements
a) Temperature :-40～+70℃;
b) Working Relative Humidity :5%～95% , No condensation；
c) Atmospheric pressure :(70～106)kPa；
d) Storage temperature :-40～+125℃;
e) Storage Humidity:5%～98% , No condensation.

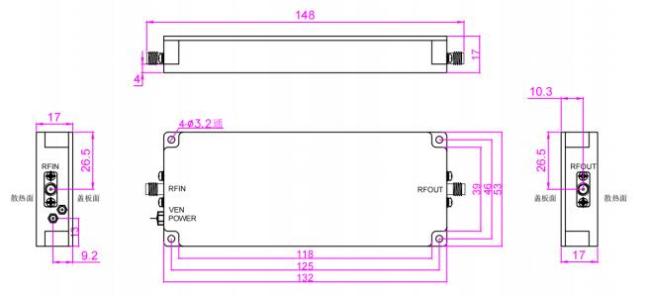

5. Size (Unit: mm)
