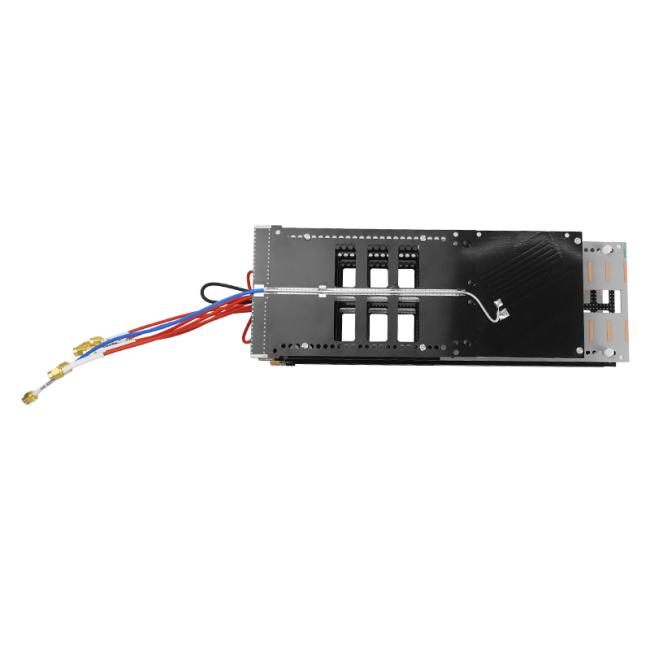

High Gain 7-Band Combined PCB Antenna Low Loss 50W SMA-J for RF Amplification & Signal Management Product
Price:
Negotiated
MOQ:
1
Delivery Time:
1-3 days
Brand:
TX TELSIG
Product Description
High Gain 7-Band PCB Antenna Directional 433M/900M/1.2G/2.4G/5.8G for High Efficiency Signal Transmission
Product Description

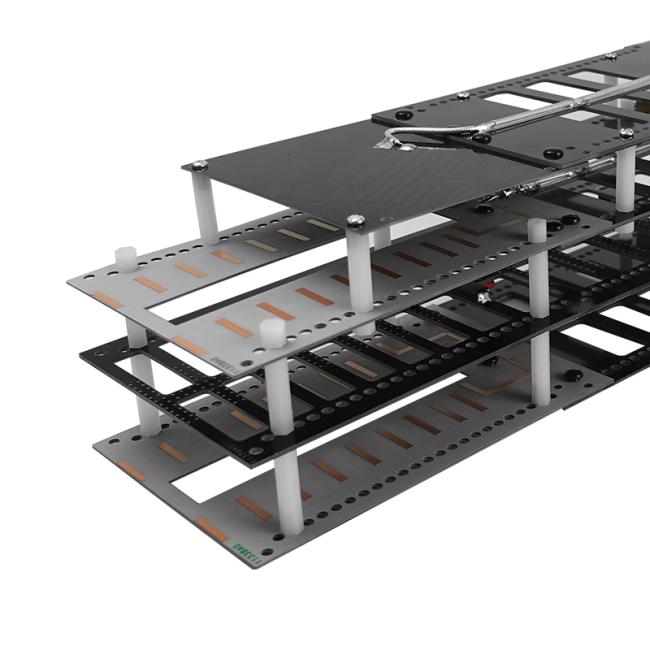

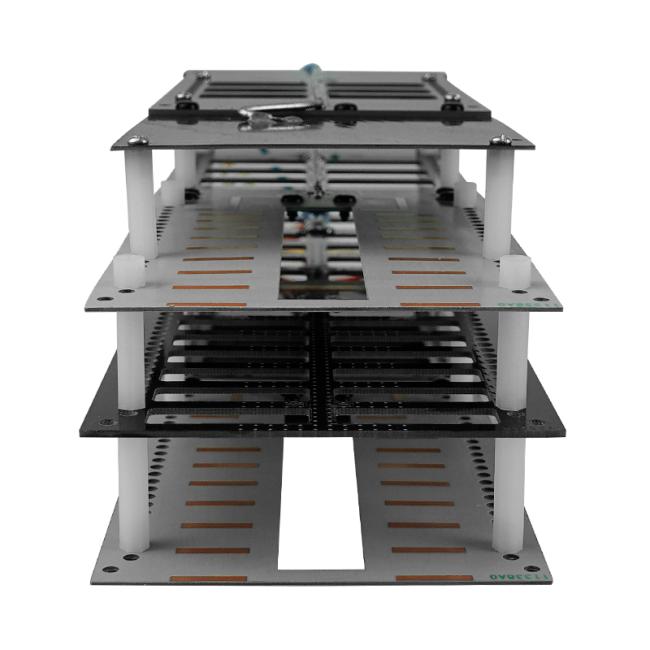

This PCB antenna is a combination of multiple band with the minimum Mutual-interference, the optimized transmission angle and the higher gain；
When connected to the power amplifier, it can high efficiently assist the power amplifier to transmit the boosting or jamming signal.
Product Features
1.High Efficiency & Low Loss
Adopts high-quality PCB design and premium RF materials for low signal attenuation and high transmission efficiency. Excellent impedance matching ensures stable performance even under long‑term high‑power use.
2.High Gain Performance
High‑gain directional design enhances signal transmission and reception distance, providing stronger signal strength and higher system sensitivity for long‑range applications.
3.Seven‑band Synthesis Technology
Supports 7 communication bands covering 2G, 3G, 4G, and 5G. Integrated structure reduces interference and replaces multiple single‑band antennas for easier integration.
4.High Reliability & Stability
Industrial‑grade construction with low VSWR and strong anti‑interference ability. Stable performance in complex environments, ensuring long‑term reliable operation.
Specification
| Performance Parameter | |||||
| Type | Frequency (Customized) |
Gain | VSWR | Horizontal Beam width |
Vertical Beam width |
| 433MHz | 428-438 MHz | 1 dBi | ≤1.5 | 75-90º | 68-80º |
| 900MHz | 803-930 MHz | 5 dBi | 72-88º | 57-74º | |
| 1.2G | 1160-1280 MHz | 8 dBi | 62-75º | 55-68º | |
| 1.4/1.5/1.6G | 1160-1620 MHz | 8 dBi | 55-75º | 52-68º | |
| 2.4G | 2400-2500 MHz | 16 dBi | 48-58º | 27-38º | |
| 5.2G | 5100-5350 MHz | 17 dBi | 35-45º | 27-38º | |
| 5.8G | 5700-5900 MHz | 17 dBi | 35-45º | 27-38º | |
| Front-to-back ratio | ≥18 dB | ||||
| Input Impedance | 50Ω | ||||
| Maximum input | 50W | ||||

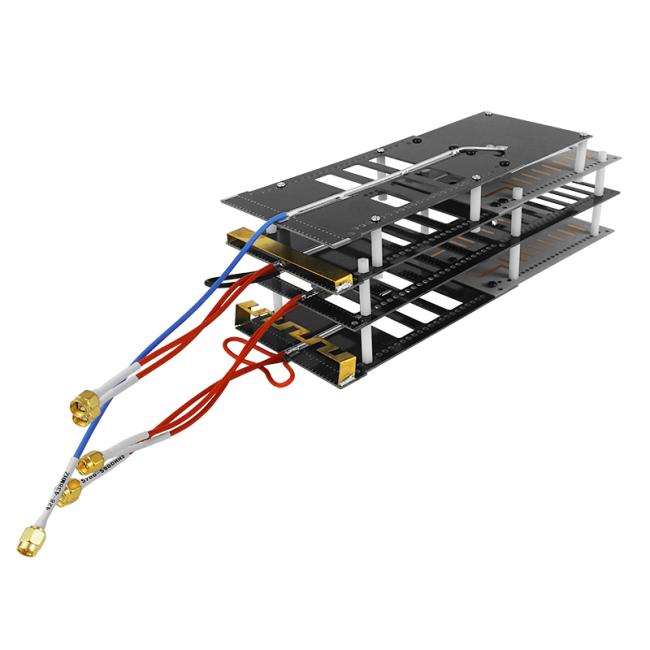

| Input connector type | 086 cable 7pcs*SMS-J | ||||
|
Mechanical Parameter |
|||||

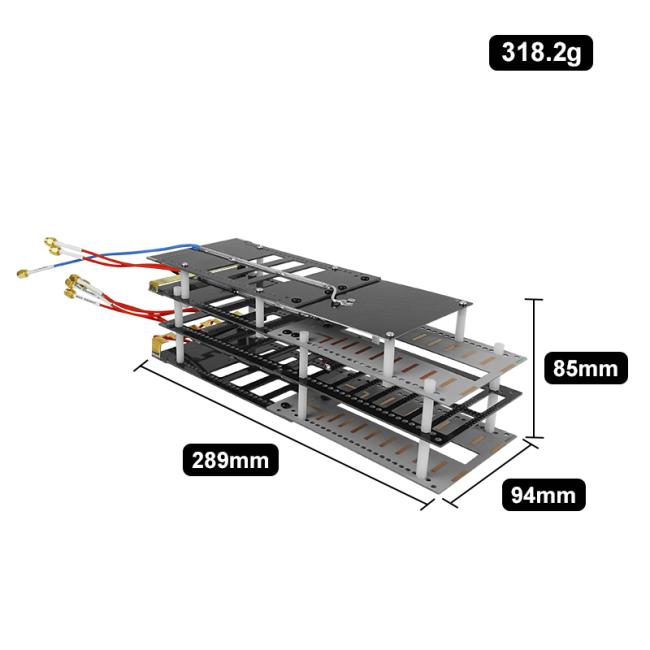

| Dimension(L*W*H) | 284*97.5*60mm | ||||

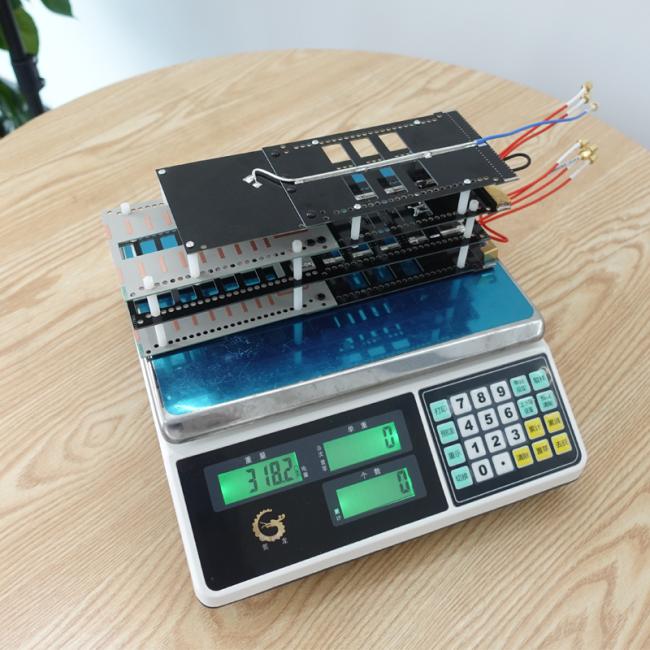

| Antenna weight(kg) | 0.35kg | ||||
| Work Humidity(％) | 10%- 95% | ||||
| Surface Color | Black & grey color | ||||
| Work temperature(ºC) | -40～65 º | ||||
Ideal Applications
1.RF power amplifier module integration
- 2.Signal amplification & countermeasure systems
- 3.Drone & device signal management
- 4.Industrial wireless communication testing
- 5.R&D and engineering development projects
