Product Description
 30W 40W 50W Aluminum outshell wireless radio drone counter frequency drone jamming module

The TXPD 50W is a high-performance aluminum alloy housing module manufactured by Texin. This module features excellent heat dissipation and high-temperature resistance, making it ideal for large-scale equipment. It employs radio frequency interference technology, with the internal VCO chip vibrating to emit signals that can jam drones within 3-5 seconds. Customization is available, offering different power ratings such as 20W, 30W, 40W, and 50W. Welcome to purchase!



50W Aluminum signal  Jammer module
1. Product Introduction

This 50W jammer module  is high efficient and compact, with LDMOS solution and outshell aluminum material . Available in different frequency aband and wattage , suitable fordrone wifi, signal shielding, if you need to shield other signals, please contact us to customize.



2,Product specification

2.4GHz 50W RF Power Amplifier Specification
No. Item Data Unit Notes
1 Frequency 2400-2485 MHZ
2 Work Temperature -20~+70
3 Max Output Power 50 W
4 Work Voltage DC28 V
5 Max Gain 47 dB
6 Flatness ±1 dB
7 Max Current 4 A
8 Output VSWR ≤1.5
9 Output Connector SMA/F 50Ω   Customized
10 Power Amplifier Efficiency 45   when Max Output
11 Switch Control high low
level current
V 0V off /0.6 on
12 Standing Wave Protection OK
13 Temperature Protection 75°

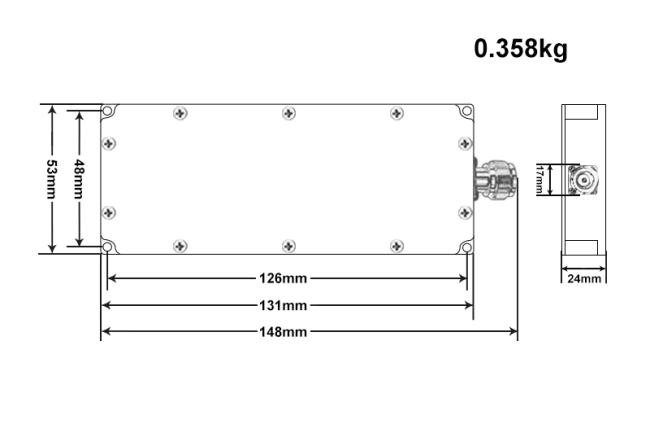

14 Size 132*53*20 mm
15 Weight 0.358 Kg

3,Feature

  • Power supply needs to carry 24V 4A
  • If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.
  • When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power

4,Application

This handheld shield

*Outdoors , car

*room, examination room, church

*For anti-drone  and personal security protection, anti-terrorism

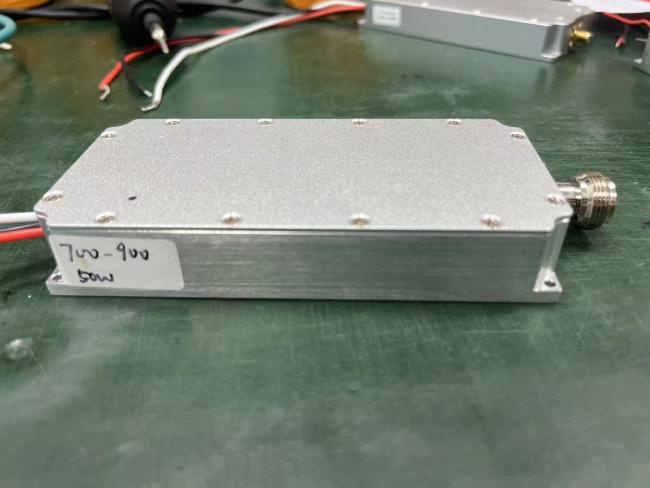

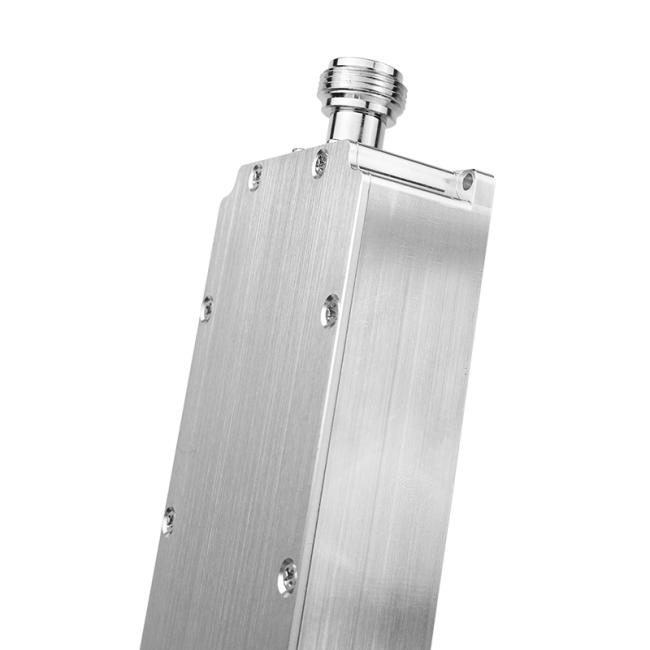

5,Picture
