Government high power 100W 4-8ghz broadband PA power amplifier module applicate drone signal Blocking
Government high power 100W 4-8ghz broadband PA power amplifier module applicate drone signal Blocking
This PA power amplifier module developed by Texin ,it is a high power output 100W cover 4ghz -8ghz the PA signal amplifiers typically amplify received signals. This 100W 4GHz-8GHz amplifier is specifically designed for drone countermeasures. By inputting a jamming signal, it enhances the output signal, thereby interfering with the drone.
High power 100W 4-8ghz broadband PA power amplifier
- Product Introduction
Thehigh power 100W 4-8ghz broadband PA is different from ordinary PA power amplifier module , and it is wider frequency band for government anti drone system of business occasions and important places. It can effectively shield 5.2ghz 5.8ghz that high HD image transmit drone FPV and wireless signals.This pa power amplifier working principle is to connect to a signal source, amplify the countermeasure signal, and output it to interfere with the drone.We can customize shielded frequency bands according to your needs and national frequencies.
- Product Specification
| No. | Description | Symbol | Min | Typ | Max | Unit | Remark |
|
|
Operating Frequency | BW | 4000 | 8000 | MHz | ||
|
|
Input Power | Pin | 0 | dBm | |||
|
|
Output Power CW | Psat | 49 | 50 | 51 | dBm | Continuous Wave |
|
|
Power Gain | Gp | 47 | 49.5 | dBm | @ Pin=0 dBm | |
|
|
Power Gain Flatness | △Gp | ±1.5 | dB | @ Pin=0 dBm | ||
|
|
Small Signal Gain | G | 49 | 50.5 | 52 | dB | @ Pin=-5dBm |
|
|
Small Signal Gain Flatness | △G | ±2 | dB | @ Pin=-5dBm | ||
|
|
Input Return Loss | S11 | -15 | dB | |||
|
|
Operating Voltage | Vdc | 28 | 28 | 32 | V | |
|
|
Current Consumption | A | 6 | 8 | A | @ Pout=50~90W | |
|
|
Working Temperature | -40℃~+50℃ | |||||
|
|
RF Connector Input | SMA, Female | |||||
|
|
RF Connector Output | SMA, Female | |||||
|
|
Weight | 0.439 | 0.50 | Kg | |||
|
|

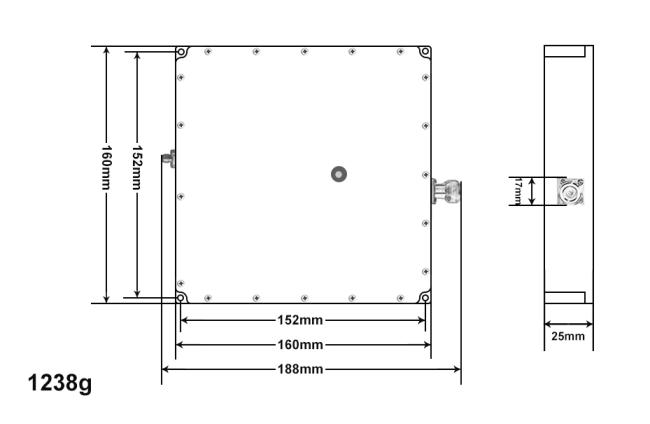

Length*Width*Height | 134*80*22 | mm | ||||
|
|
Input Power | PinMax | -5 | 5 | dBm | ||
|
|
Interface Definition (7W2 Female) |
VDD | A1 | Ground | |||
| GND | A2 | 28Vdc | |||||
| Current Sense | 1 | Analog voltage relative to Module’s current@100mV/A | |||||
| Temp Sense | 2 | Analog voltage relative to Module’s Temperature@10mV/℃ | |||||
| Enable | 3 | Amplifier Enable |
Amplifier Enable:TTL Logic High(3.3V) (Internally Pulled-Low) |
||||
- Feature
* High power shielding performance；
* Portable to carry, no installation required, fast shielding can be achieved by connecting to the power supply；
* The hole design on the back of the shield can be hung or placed, and placed in a specific area；
* High performance heat sink and material , designed with a larger heat dissipation port, which can help the shield to play a better shielding role.
* Under the influence of the base station, the shielding range is relatively larger;
* High efficiency, high precision, only shielding downlink channels, will not cause any damage to shielding equipment and base stations;
* Aluminum alloy shell design, pressure-resistant, heat-resistant, waterproof;
* Green and environmentally friendly, no harm to human health.
- Application
* It can be used in places where the use of drone is prohibited, such as government courts, gas stations, etc;
* High-power shielding performance is more suitable for uniform use in prisons;
* It can be used to block drone FPV signals outdoors when we working;
* Can block multiple signal in frequency 4ghz-8ghz.

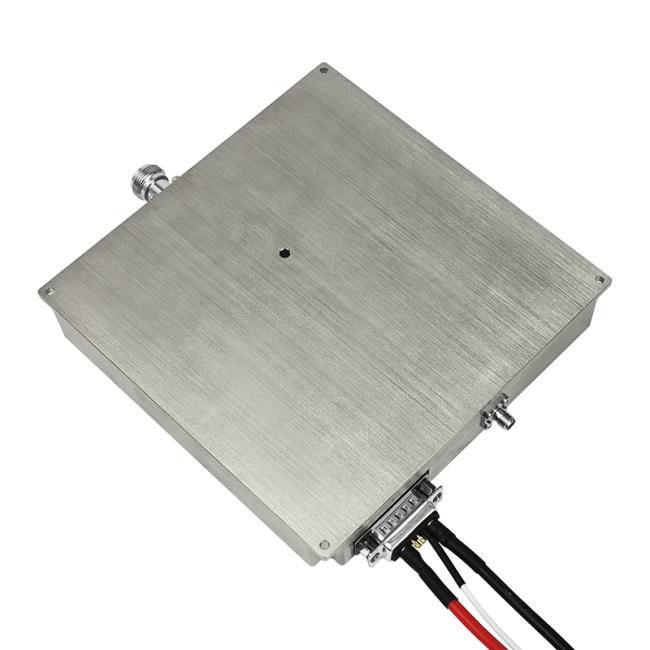

- More Photo
