Customized GPS wifi GNSS 1500mhz directional Log periodic antenna for anti drone jammer
Customized GPS wifi GNSS 1500mhz directional Log periodic antenna for anti drone jammer
This directional antenna covers a frequency band of 400-2000MHz, offering wide bandwidth and stable electrical performance. The angle can be adjusted as needed during use. Manufactured directly by Texin factory, it boasts reliable quality and efficient signal transmission. It is commonly used in EMC testing, communications, signal monitoring, and other fields.
1.Product Specification
| Technical Specification | |
| (Frequency Range) | 400-2000 MHz |
| (Gain) | 6-10dbi |
| (VSWR) | ＜2.0 |
| (Polarization) | Vertical |
| (Horizontal Bandwidth) | 42-50° |
| (Vertical Bandwidth) | 55° |
| (Front to back ratio) | 12db |
| (Input Impedance) | 50Ω |
| (Maximum Input) | 100W |
| (Input Connector) | N-K |
| (Lightning Protection) | DC Ground |
| Mechanical specifications | |
| Dimension | 650*350*75mm |
| (Packing Size) | 750*450*400mm(5pcs) |
| (Antenna Weight) | 758g |
| (Rated Wind Velocity) | 31m/s |
| (Operational Humidity) | 10-95％ |
| (Radiomen Color) | Boack matte finish |
| (Radome Material) | / |
| (Operation Temperature) | -55-70°C |
| (Installation Method) | Flange mounting |
| (Radiation Pattern) | |

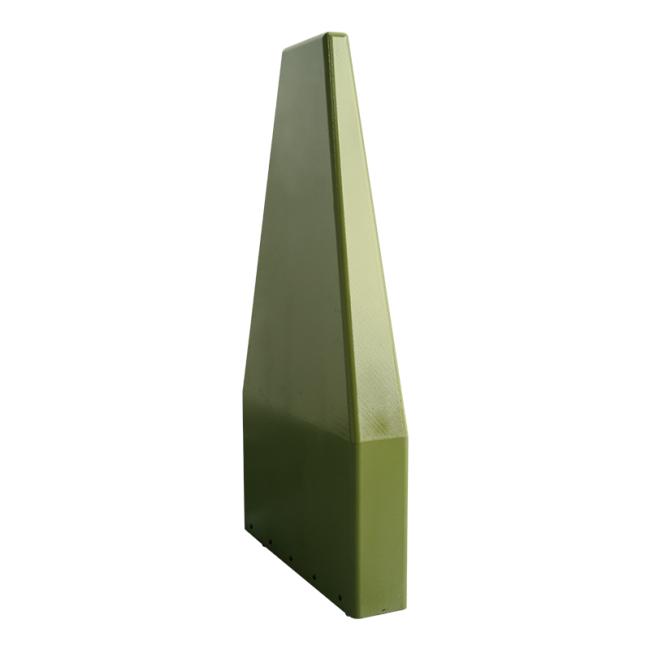

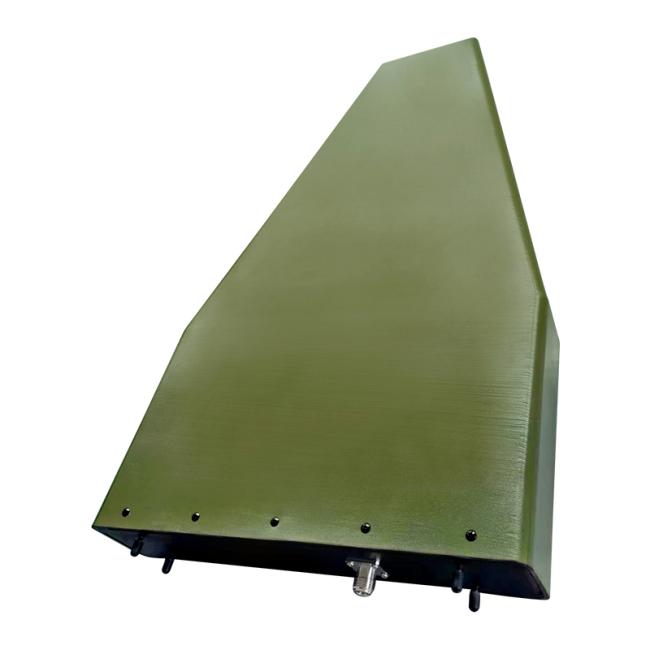

Directional 400-2000mhz Log periodic antenna
* Directional antenna high efficient transmit the signal
* Can cover 2G 3G 4G 5G WIFI GPS VHF GPS gnss 5.8ghz and other signals, choose and customize according to your needs
* Aluminum alloy shell, strong, durable, heat-resistant, dust-proof and shock-proof,waterproof
* Can be used in large conferences and other occasions like the government ,village
* High output power more than 100W
Application
Directional 400-2000mhz Log periodic antenna
* Gas station, chemical plant
* Jail, conference rooms, prisons, troops, etc. Concert hall mobile phone scrambler jammer
