Original VCO Chip 300MHz 600MHz 800MHz SM150 For Jammer Module Parts
Price:
Negotiated
MOQ:
1
Delivery Time:
1-3 days
Brand:
TX
Product Description
Original VCO chip 300MHz 600MHz 800MHz SM150 for jammer module parts
The VCO (Voltage Control Unit) is an indispensable component of an RF module, its main function being to up-convert (transmit) and down-convert (receive) RF signals. It is primarily used in base stations, mobile communications, and other RF equipment.
2. Product Specification
| Parameter | Mini | Typical | Max | unit | Remark | |
| Working voltage (Vcc) | 4.75 | 5.0 | 5.25 | Vdc | ||
| Output Level | 10 | dBm | Vcc = 5.0 V | |||
| Current consumption(Icc) | -- | 25 | mA | |||
| Tuning sensitivity (average) | 10 | -- | -- | MHz/V | Vt = 0.5~4.5 V | |
| Tuning voltage (Vt) | 0.5 | -- | 4.5 | Vdc | ||
| Phase noise/carrier | @1KHzOffset | -- | -65 | dBc/Hz | Vcc = 5.0 V, Vt = 2.5 V | |
| @10KHzOffset | -- | -92 | dBc/Hz | Vcc = 5.0 V, Vt = 2.5 V | ||
| @100KHzOffset | -- | -120 | dBc/Hz | Vcc = 5.0 V, Vt = 2.5 V | ||
| @1MHzOffset | -- | -130 | dBc/Hz | Vcc = 5.0 V, Vt = 2.5 V | ||
| Oscillation frequency |
-- 175 |
-- -- |
135 -- |
MHz |
Vcc = 5.0 V, Vt = 0.5 V Vcc = 5.0 V, Vt = 4.5 V |
|
| Tuning terminal capacitance | -- | 56 | -- | pF | ||
| Second Harmonic | -- | -- | -15 | dBc | ||
| Load impedance | -- | 50 | -- | Ω | ||
| Operating temperature | -40 | -- | +85 | °C | ||

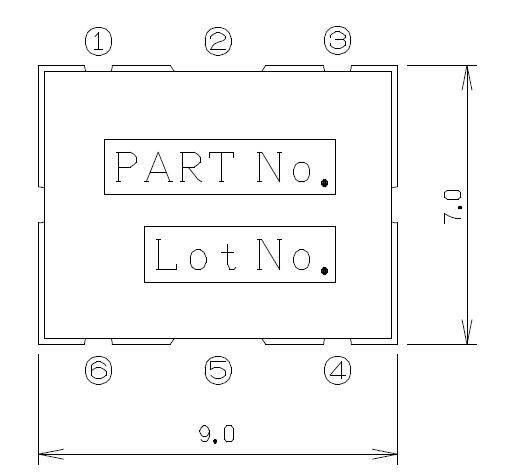

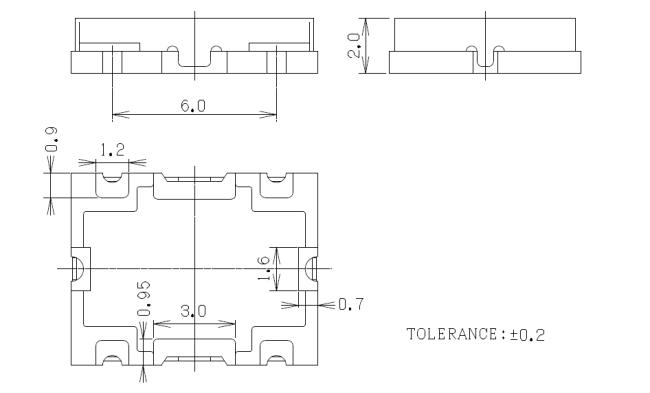

3. Feature
-Low noise;
-High frequency stability;
-Low voltage operation: +3.3 +5V;
-Operating temperature range: -40°C~+85°C;
-Small size.
4. Application
