DR 25 Pin SPCC D Sub Connector 90 Degree Male To Female With Harpoon
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
DR 25 Pin 1*2 Dual interface 90 Degree Male To Female D Sub Connector With Harpoon
Product Features:
According to number of pin rows: two rows, three rows,
According to mount type: solder type, DIP type,
According to number of interface: common is single interface, dual interface;
According to gender: male/female or 1 male 1 female(dual interface).
Common categories:
HDB (three row solder type)
HDP (three row 180 degree)
HDR (three row right angle type)
DB (dual row solder type)
DP (dual row 180 degree)
DR (dual row right angle type)
Product Application:
1. There are a wide range of past and present uses for D-sub connectors. These include printer cables, computer game joysticks and external floppy disk drives. They are also used in some multi-channel audio recording systems.
2. It most common use of the D-sub connector is as a video connector. This is in a plug and socket known as DE15, meaning it is D-shaped, size E in ITT Cannon's system, and has 15 pins. These are arranged in three rows of five.
| Name | D SUB Connector |
| Gender | Male/Female |
| Type | Solder type |
| Shell | SPCC, Nickel Plated |
| Insulator Color | Black |
| Number of pins | 25Pin |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 5 Amp |
| Contact | Brass |
| Operation Temperature | -55℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm Min. at 500V DC |
| Contact Resistance | 30mΩ Max |
| Contact Plated | Tin over Gold |
| Dielectric Strength | 500V for one minute |
| Insulator material | PBT+30%G.F, (UL94V-0) |
| Packing | Tray Packing |
| OEM/ODM | Accepted |

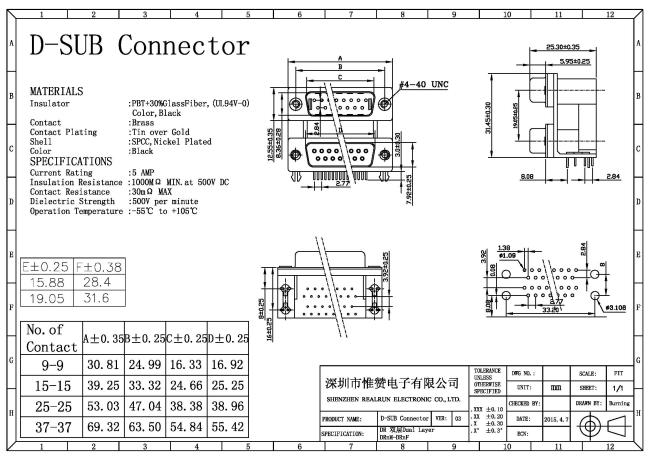

Please feel free to contact us and we will send you the drawings you need.
