Product Description:

Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

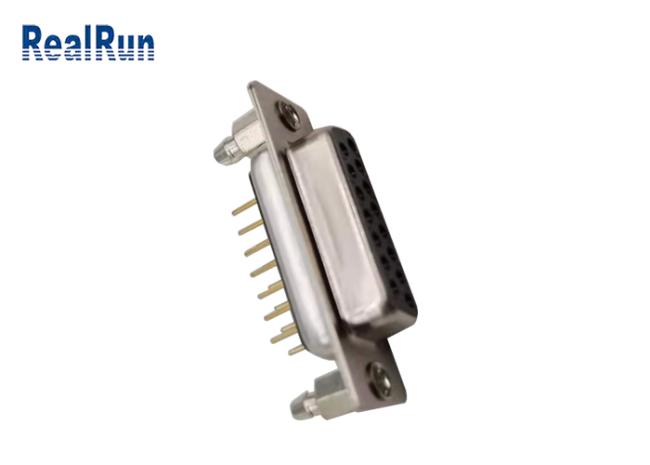

Male And Female D-sub Connector Straight DP 15 Pin PCB Connector

1. D-SUB is short for D-subminiature. The D-SUB connector uses a series of pins that slot into a socket, with the plug usually screwed into place to prevent it coming loose.

2. D-SUB can be divided into two rows, three rows of welding line series, male head series, with rivets, with a high degree of close reactivity and a variety of fixed ground accessories, is a universal D-SUB., so that socket and plug protection cover combined.

3. It is very good at shielding EMI. High-current D-SUB can complete high-density and high-current series and can be mixed with the signal at the same time. The maximum current is 50A. The coaxial D-SUB allows mixed contact in mixed use, including signals, Gaodianya and Fiber, this new type of connector, are improved by combining military products.

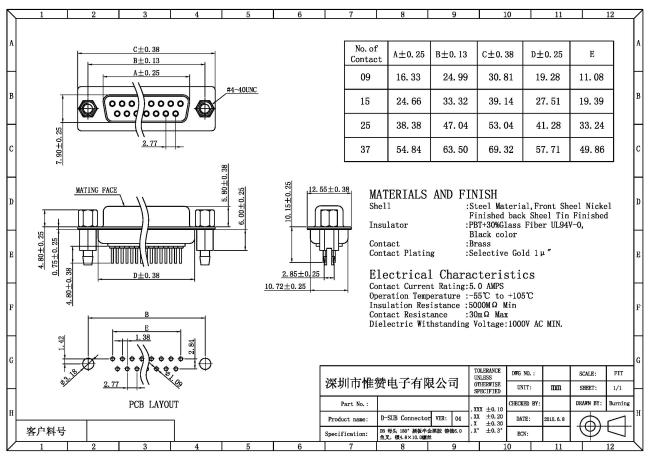

Please feel free to contact us and we will send you the drawings you need.

Feedback:

Buyer’s early confirmation will be highly appreciated after receiving the goods.

Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.

Precautions for welding:

(1) It is suggested to wrap a layer of heat insulation adhesive tape on the inner mold before wrapping copper foil to prevent the core wire from being scalded when welding copper foil or injection molding the outer mold;

(2) The coated copper foil is not allowed to have slit or damage;

(3) If it is found that the copper foil is damaged, the damaged part can be covered with copper foil, and then the joint between the repaired copper foil and the original copper foil shall be completely welded with solder;

(4) After the copper foil is completely wrapped, no inner mold or core wire is allowed to be exposed from any angle;

(5) Pay attention not to scald the core wire during welding.

(6) It is not allowed for the solder to dissolve into the gap between the internal mold and the connector and the solder to penetrate into the insulation tape of the internal mold.
