Jacket Colour: Black
Jacket Material: PVC
Conductor Material: Silver Plated Copper
No. of Max Strands x Strand Size: 7 x 0.75mm
External Diameter: 10.8mm
RG214 50 ohm Coaxial cable with silver-plated copper conductor and natural solid PE insulation
Price:
$0.10 - $2.00/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Product Overview
RG214

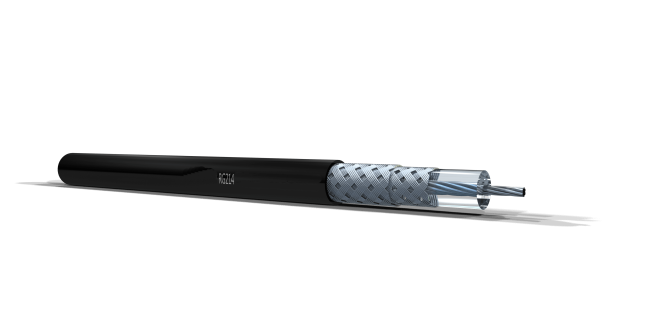

A Coaxial Cable with silver-plated copper conductor and natural solid PE insulation.
This RG214 coaxial cable comes with a black PVC jacket and silver-plated copper braid shield.
FEATURES AT A GLANCE
Impedance: 50ohm
Jacket Colour: Black
Jacket Material: PVC
Conductor Material: Silver Plated Copper
No. of Max Strands x Strand Size: 7 x 0.75mm
External Diameter: 10.8mm
Jacket Colour: Black
Jacket Material: PVC
Conductor Material: Silver Plated Copper
No. of Max Strands x Strand Size: 7 x 0.75mm
External Diameter: 10.8mm
PRODUCT SPECIFICATIONS
Conductor | Material | Silver Plated Copper |
Construction:(mm) | 0.75 ±0.01 × 7 | |
Dia:(mm) | 2.3 | |
Insulation | Material | Solid PE,Nature colour |
Thickness:(mm) | 2.6 | |
Dia:(mm) | 7.25±0.05 | |
1st Braiding | Material | Silver Plated Copper |
Construction | 0.16 ±0.008 × 24 × 6 | |
Coverage | 80% | |
2nd Braiding | Material | Silver Plated Copper |
Construction | 0.16 ±0.008 × 24 × 7 | |
Coverage | 90% | |
Jacket | Material | PVC |
Thickness:(mm) | 0.9 | |
Dia:(mm) | 10.8±0.30 | |
Color | Black |
