4 Pair 24awg Utp Cat5e Cable 305m Box Rohs Compliant PVC 23 AWG Solid Copper(0.48bc) UL Rohs Standard PVC Grey
Price:
$39.00/boxes 1-9 boxes
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Products Show

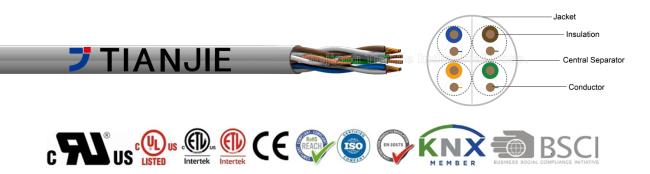

4Pair 24AWG UTP Cat5E cable
Applications IEEE 802.3: 1000 BASE-T Gigabit Ethernet, 100 BASE-TX, 10 BASE-T, 155 Mb/s and 622 Mb/s ATM, ANSI X3.263: 100 Mb/s, Broadband and Baseband Analog Video and transport of High Definition 1920x1080p and Ultra High Definition 4K/2k signals when used in conjunction with an HDMI or HD BASE-T extender between a source and a display Features & Benefits Cable is flexible and easy to install For applications that require Optimum Cat5e Performance with flexibility for the future Third-party verified for guaranteed performance and RoHS compliance Free from restricted metals and hazardous compounds Combines indoor/outdoor applications into one product. Complies with the UL 1581 sunlight resistance requirement for outdoor installations
Product Paramenters
TIANJIE brand
In stock, ready to ship.
Physical Characteristics | Certifications |
Conductor: 24 AWG (0.48mm) Solid Bare Copper | ISO9001: 2008, ISO14001: 2004, OHSAS 18001 |
Insulation: 0.9mm HDPE | ANSI/ TIA 568-C.2 |
Conductor Color Code: | UL listed Type: CMR (UL 1666), CM(UL 1681)，NEC 760 |
Pair 1: Blue – White/Blue Pair 2: Orange – White/Orange | UL 444 |
Pair 3: Green – White/Green Pair 4: Brown – White/Brown | RoHS / REACH Compliant |
Rip Cord: Yes | |
Jacket: PVC Grey | Electrical Characteristics |
Nominal Cable Diameter: 5.2mm | Max Capacitance (nF/100m @ 1 kHz): 5.6 |
Nominal Cable Net Weight (1000 ft): | Max DC Resistance (Ω/100m @ 68℉): 9.38 |
Minimum Bend Radius : | DC Conductor Resistance Unbalance: 5% |
Maximum Pulling Force : | Max Delay Skew (ns/100m): 45 |
Temperature Rating : | Nom Velocity of Propagation (%): 69 |
Installation: 0℃ to + 60℃ | Characteristic Impedance (Ω@ 1- 100 MHZ): 100±15 |
Storage & Operation: -20℃ to + 75℃ |
