3 Pairs 22AWG Twisted RS485 shielded Cable RVVP Communication Cable
Price:
$0.30 - $10.00/meters
MOQ:
1000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM

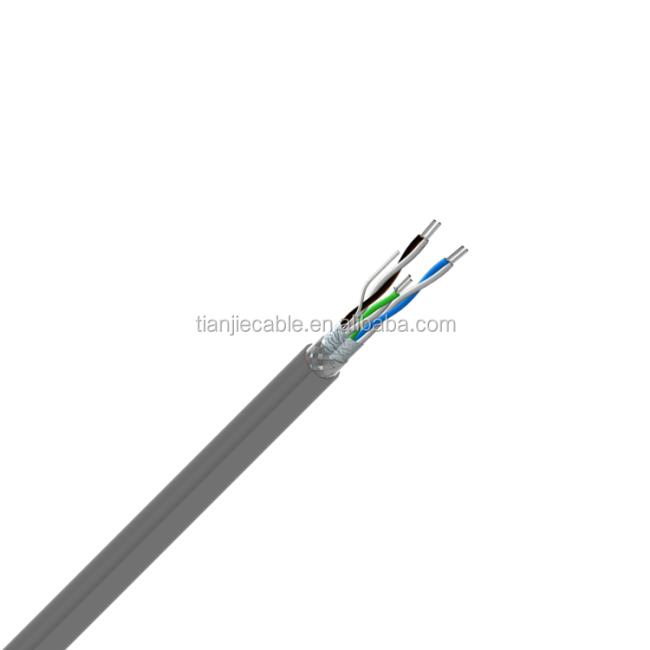

Product Description
Products Show

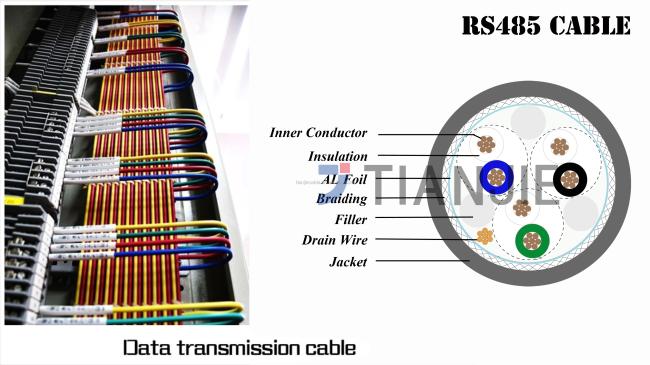

RS485 CABLE
Application:
For multi-dropped, medium-speed, serial data communication in electrically noisy industrial environments. Application includes industrial networks using RS-485 / RS-422 / RS-232 transceivers, RS-422 systems for Process Automation (chemicals, brewing, paper mills), factory automation (autos, metal fabrication), HVAC, security, motor control and motion control.

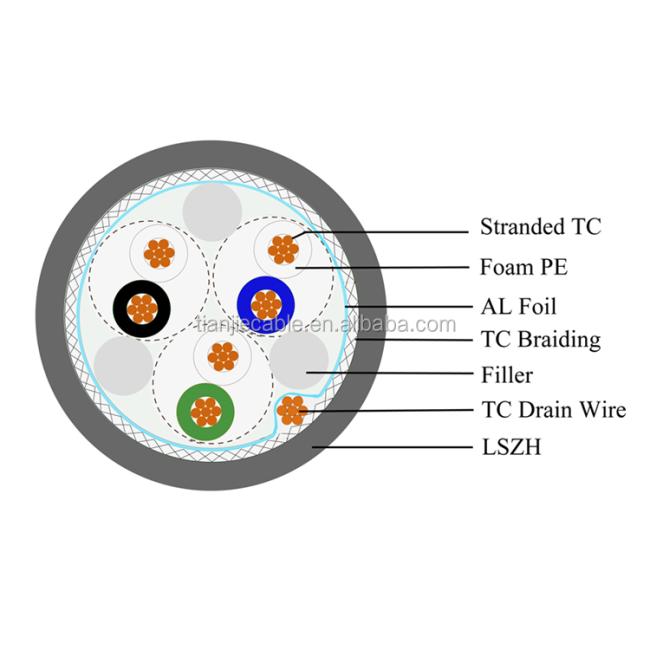

Physical Structure | RS485 2Px22AWG | RS485 3Px22AWG | RS485 4Px22AWG | |||||||||||
1.1 | Conductor | Stranded Copper, 22AWG Diameter 7 x 0.254mm 0.78± 0.2mm | Stranded Copper, 22AWG Diameter 7 x 0.254mm 0.78± 0.2mm | Stranded Copper, 22AWG Diameter 7 x 0.254mm 0.78± 0.2mm | ||||||||||
1.2 | Insulation | FPE 2.0± 0.1 mm | FPE 2.0± 0.1 mm | FPE 2.0± 0.1 mm | ||||||||||
1.3 | Color code | Pair 1: White*Orange Pair 2: White*Blue | Pair 1: White*Orange Pair 2: White*Blue Pair 3: White*Black | Pair 1: White*Orange Pair 2: White*Blue Pair 3: White*Black Pair 4: White*Green | ||||||||||
1.4 | 1st screen | 1 x AL-Mylar Wrap Overlapping ≥25% | 1 x AL-Mylar Wrap Overlapping ≥25% | 1 x AL-Mylar Wrap Overlapping ≥25% | ||||||||||
1.5 | Drain wire | 7/0.254mm Stranded Tinned Copper | 7/0.254mm Stranded Tinned Copper | 7/0.254mm Stranded Tinned Copper | ||||||||||
1.6 | Braid shield | Tinned copper | Tinned copper | Tinned copper | ||||||||||
1.7 | Coverage | ≥85% | ≥85% | ≥85% | ||||||||||
1.8 | Jacket | PVC UV 9.0±0.2mm | PVC UV 10.0±0.2mm | PVC UV 11.0±0.2mm | ||||||||||
Mechanical Properties | ||||||||||||||
Rated temperature | 80℃ | |||||||||||||
Bend radius | 10 x D | |||||||||||||
Operating temperature range: | -20℃ to 70℃ | |||||||||||||
Electrical Properties | ||||||||||||||
Conductor resistance (at 20 ± 5 °C) | ≤ 58 Ω/km | ≤ 58 Ω/km | ≤ 58 Ω/km | |||||||||||
Impedance(1MHz) | 120Ω+10% | 120Ω+10% | 120Ω+10% | |||||||||||
Capacitance Conductor to Conductor | 34nF/km | 34nF/km | 34nF/km | |||||||||||
Capacitance Conductor to other Conductor & Shield | 68.2nF/km | 68.2nF/km | 68.2nF/km | |||||||||||
Voltage | 300V | 300V | 300V | |||||||||||
Insulation Resistance | ≥5000MΩ.km | ≥5000MΩ.km | ≥5000MΩ.km | |||||||||||
