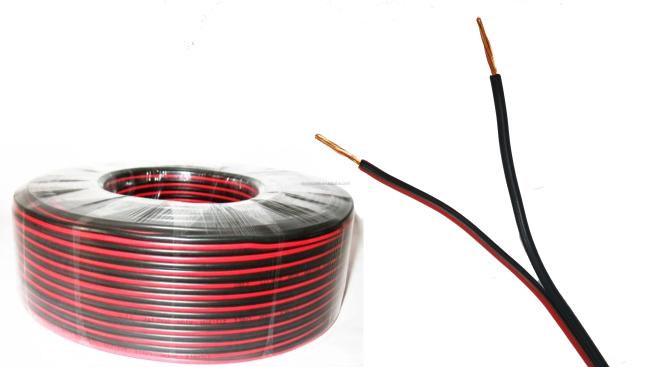

2 Core 22awg Led Speaker Wire Red And Black Flat Speaker Cable
Price:
$0.05 - $0.50/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
2 Core Flat 22AWG Red/Black Stranded Copper 300V Cable
It is a low voltage flat power cable; cables pull apart for quick separation, polarity is easily identifiable for DC applications.
Product benefits
Ideal for use with single colour LED flex
Easy to solder directly to LED pad or extend existing cable tail.
Construction Tinned Copper conductors
Red/Black Insulation for polarity identification.
PVC Insulation Conductor: 22 AWG (0.33 sqmm)
No. of Conductors: 2
Conductor structure: 17/0.14 AWG/mm
Insulation Nominal Wall: 0.46 mm
Nominal outer diameter: 1.6/3.2 mm
Temperature Rating: -30 to +80 Degrees
Voltage (AC/DC): 300 V
Current Rating: 2.1 A
It is a low voltage flat power cable; cables pull apart for quick separation, polarity is easily identifiable for DC applications.
Product benefits
Ideal for use with single colour LED flex
Easy to solder directly to LED pad or extend existing cable tail.
Construction Tinned Copper conductors
Red/Black Insulation for polarity identification.
PVC Insulation Conductor: 22 AWG (0.33 sqmm)
No. of Conductors: 2
Conductor structure: 17/0.14 AWG/mm
Insulation Nominal Wall: 0.46 mm
Nominal outer diameter: 1.6/3.2 mm
Temperature Rating: -30 to +80 Degrees
Voltage (AC/DC): 300 V
Current Rating: 2.1 A
Product Show
|
Model
|
Section (mm2)
|
OD(mm)
|
||
|
10AWG X2C
|
5.26
|
5.5X11.0
|
||
|
12AWG X2C
|
3.31
|
4.5X9.0
|
||
|
14AWG X2C
|
2.08
|
3.5X7.0
|
||
|
16AWG X2C
|
1.31
|
3.0X6.0
|
||
|
18AWG X2C
|
0.823
|
2.5X5.0
|
||
|
20AWG X2C
|
0.519
|
2.2X4.4
|
||
|
22AWG X2C
|
0.324
|
2.0X4.0
|
||
|
24AWG X2C
|
0.205
|
1.8X3.6
|
||
|
|
|
|
||
|
0.5MM2 x2c
|
0.5
|
2.4X4.8
|
||
|
0.75MM2 x2c
|
0.75
|
2.5X5.0
|
||
|
1.0MM2 x2c
|
1
|
2.8X5.6
|
||
|
1.5MM2 x2c
|
1.5
|
3.2X6.4
|
||
|
2.0MM2 x2c
|
2
|
3.8X7.6
|
||
|
2.5MM2 x2c
|
2.5
|
4.2X8.4
|
||
|
4.0MM2 x2c
|
4
|
5.0X10.0
|
||
|
6.0MM2 x2c
|
6
|
5.5X11.0
|
||
Product packaging
