22AWG/3P Shielded Copper Control Cable Overall Riser Rated Access Control Cable
Price:
$0.70 - $1.00/meters
MOQ:
2000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Products Show

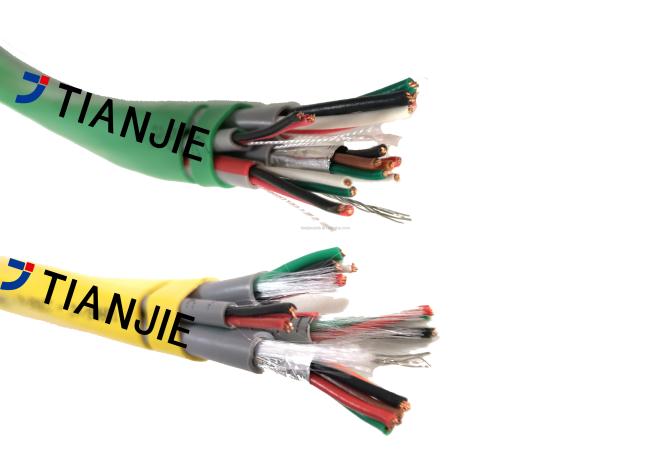

Access Control Cable

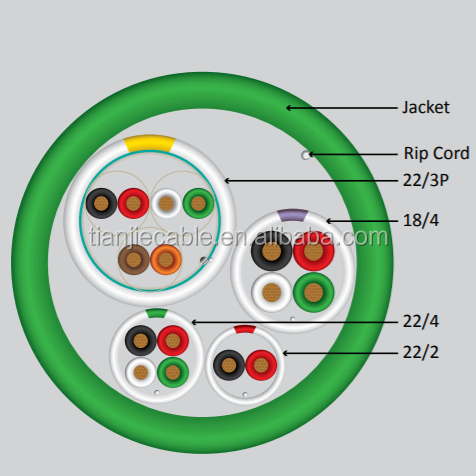

·2C/22 AWG + 4C/22 AWG + 4C/18 AWG + 3P/22 AWG SHIELDED - BUNDLED TYPE

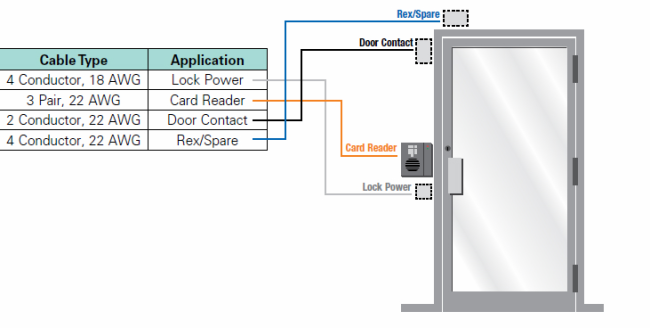

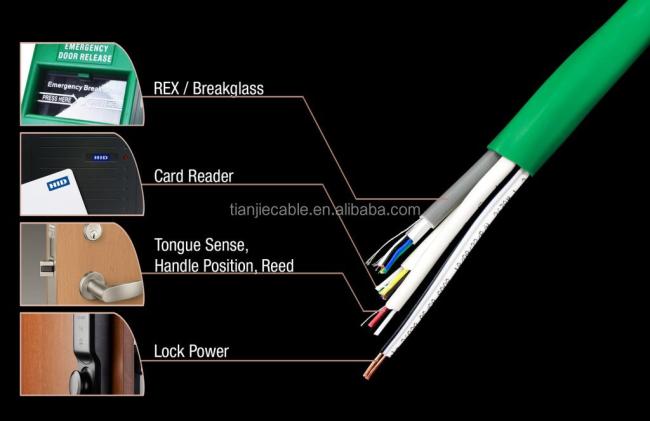

• Each component contains a rip cord • Overall PVC Riser Rated Jacket • Applications Include: Access Control Panels, Security Panels, Card Readers, Sensors, Keypads, Power, Speakers, Alarm Systems • ETL Listed, RoHs Compliant
22AWG/3P (Shielded) Conductors: 22AWG / 3 Twisted Pair (6 Conductors) Material: Stranded Bare Copper Diameter: 7 x 0.24 (±0.004mm) Insulation Material: PVC Average Thickness: 0.19 mm Insulation Diameter: 1.10 (±0.05mm) Insulation Colors: Pair 1 Black & Red Pair 2 White & Green Pair 3 Brown & Orange Shield Aluminum Foil Drain Wire: 7 x 0.20 (mm) Stranded TC PE Tape: Yes
Jacket Material: PVC Average Thickness: 0.50 mm Jacket Diameter: 5.40 (±0.10mm) Jacket Color: White with Yellow Stripe Rip Cord: Nylon 22AWG/4C Conductors: 22AWG 4 Conductors Material: Stranded Bare Copper Diameter: 7 x 0.24 (±0.004mm) Insulation Material: PVC Average Thickness: 0.19 mm Insulation Diameter: 1.10 (±0.05mm) Insulation Colors: Black, Red, Green, White
Jacket Material: PVC Average Thickness: 0.45 mm Jacket Diameter: 3.60 (±0.10mm) Jacket Color: White with Red Stripe Rip Cord: Nylon
22AWG/2C Conductors: 22AWG 2 Conductors Material: Stranded Bare Copper Diameter: 7 x 0.24 (±0.004mm) Insulation Material: PVC Average Thickness: 0.19 mm Insulation Diameter: 1.10 (±0.05mm) Insulation Colors: Black, Red Jacket Material: PVC Average Thickness: 0.45 mm Jacket Diameter: 3.10 (±0.10mm) Jacket Color: White with Green Stripe Rip Cord: Nylon 18AWG/4C Conductors: 18 AWG 4 Conductors Material: Stranded Bare Copper Diameter: 16 x 0.24 mm Insulation Material: PVC Average Insulation Thickness: 0.30 mm Insulation Diameter: 1.70 (±0.05mm) Insulation Colors: Black, Red, Green, White
Jacket Material: PVC Average Thickness: 0.50 mm Jacket Diameter: 5.10 (±0.10mm) Jacket Color: White with Purple Stripe Rip Cord: Nylon OVERALL OUTER JACKET Jacket Material: PVC Average Thickness: 0.65 mm Jacket Color: Green Diameter over Outer Jacket: 12.00 (±0.20mm) Rip cord: Nylon
MECHANICAL PROPERTIES Rated Voltage: 30V Rated Temperature: 70°C Test Material: PVC Before Tensile Strength (Mpa): ≥13.8 Aging Elongation (%): ≥100 Aging Condition (°Cxhrs): 100x168 After Tensile Strength (Mpa): ≥85% of unaged Aging Elongation (5): ≥50% if unaged Cold Bend (-20±2°Cx4hrs): No Crack
