BVVB 3Core Flat twin sheath Solid Copper Conductor house wiring electric cables and wires 300/500V 450/750V
Price:
$0.05 - $1.00/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Details Images

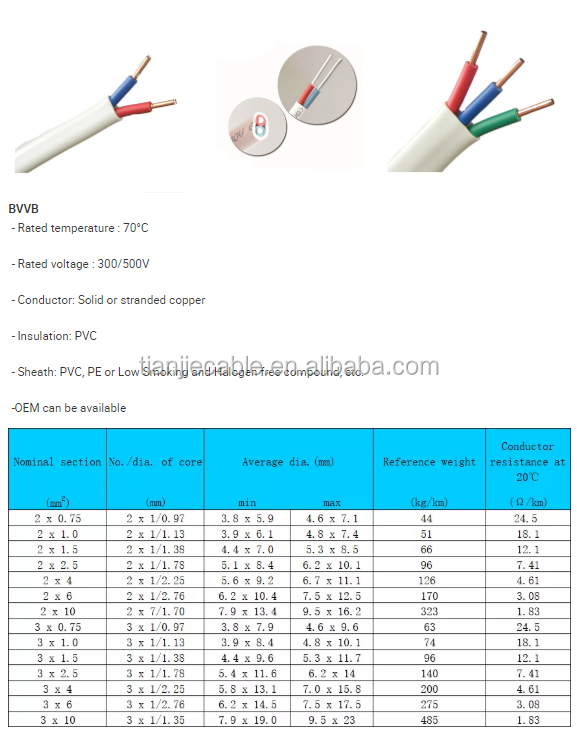

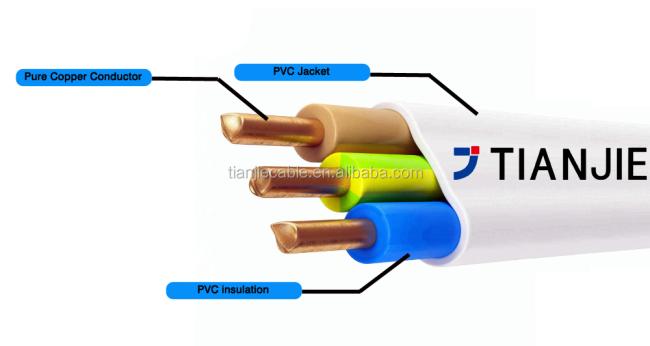

BVVB
-Rated temperature:70℃
-Rated voltage:300/500V
-Conductor:Solid or stranded copper
-Insulation:PVC
-Sheath:PVC,PE,LSZH
-OEM available
Nominal Section (mm2) | No./Dia.of Core (mm) | Average Dia(mm) Min | Conductor Resistance at 20℃ （Ω/km） | |
2*0.75 | 2*1/0.97 | 3.8*5.9 | 4.6*7.1 | 24.5 |
2*1.0 | 2*1/1.13 | 3.9*6.1 | 4.8*7.4 | 18.1 |
2*1.5 | 2*1/1.38 | 4.4*7.0 | 5.3*8.5 | 12.1 |
2*2.5 | 2*1/1.78 | 5.1*8.4 | 6.2*10.1 | 7.41 |
2*4.0 | 2*1/2.25 | 5.6*9.2 | 6.7*11.1 | 4.61 |
2*6.0 | 2*1/2.76 | 6.2*10.4 | 7.5*12.5 | 3.08 |
2*10.0 | 2*7/1.70 | 7.9*13.4 | 9.5*16.2 | 1.83 |
3*0.75 | 3*1/0.97 | 3.8*7.9 | 4.6*9.6 | 24.5 |
3*1.0 | 3*1/1.13 | 3.9*8.4 | 4.8*10.1 | 18.1 |
3*1.5 | 3*1/1.38 | 4.4*9.6 | 5.3*11.7 | 12.1 |
3*2.5 | 3*1/1.78 | 5.4*11.6 | 6.2*14 | 7.41 |
3*4.0 | 3*1/2.25 | 5.8*13.1 | 7.0*15.8 | 4.61 |
3*6.0 | 3*1/2.76 | 6.2*14.5 | 7.5*17.5 | 3.08 |
3*10.0 | 3*7/1.70 | 7.9*19 | 9.5*23 | 1.83 |
