TIANJIE - BVVB 2Core+E Flat twin sheath Solid Copper Conductor with Earth power electrical cables and wires 300/500V 450/750V
Price:
$0.05 - $1.00/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Details Images

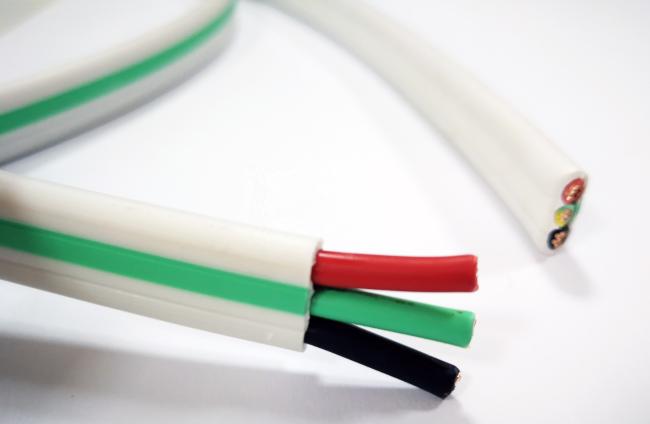

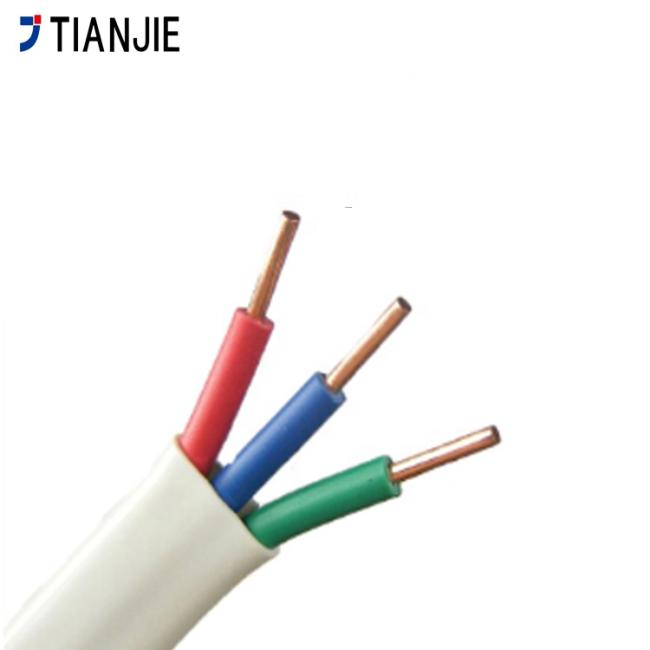

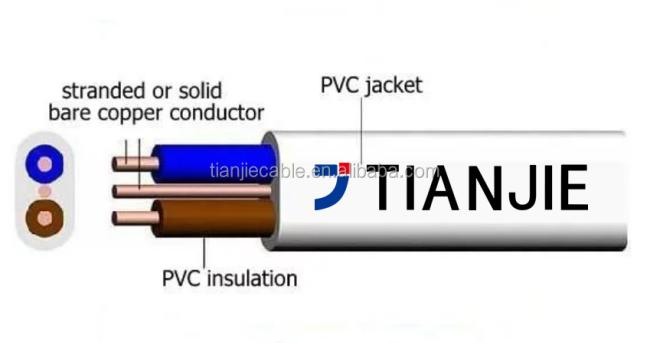

PVC Insulated and PVC sheathed Flat cable Construction:
Core number: 2core, 3core
Conductor:
Class 1 solid plain copper
Class 2 stranded plain copper
Insulation: PVC (Polyvinyl Chloride)
Outer sheath: PVC (Polyvinyl Chloride)
Rated voltage Uo/U (Um) : 300/500V; 450/750V
Test voltage: 2000V(300/500V); 2500V(450/750V)
Physical characteristics
Max working temperature: 70°C
Core number: 2core, 3core
Conductor:
Class 1 solid plain copper
Class 2 stranded plain copper
Insulation: PVC (Polyvinyl Chloride)
Outer sheath: PVC (Polyvinyl Chloride)
Rated voltage Uo/U (Um) : 300/500V; 450/750V
Test voltage: 2000V(300/500V); 2500V(450/750V)
Physical characteristics
Max working temperature: 70°C
SPECIFICATIONS
PVC Insulated and PVC sheathed Flat cable Technical Sheet
PVC Insulated and PVC sheathed Flat cable Technical Sheet
Nom. Cross Section Area (mm²) | Approx O.D mm | Thickness of insulation | Thickness of sheath | 20℃max. Conductor resistance (Ω/km) | 70℃min. Insulation resistance(mΩ/km) |
2×0.75 | 4.6×7.1 | 0.6 | 0.9 | 24.5 | 0.013 |
2×1.0 | 4.8×7.4 | 0.6 | 0.9 | 18.1 | 0.012 |
2×1.5 | 5.3×8.5 | 0.7 | 0.9 | 12.1 | 0.012 |
2×2.5 | 6.2×10.1 | 0.8 | 1.0 | 7.41 | 0.010 |
2×4 | 6.7×11.1 | 0.8 | 1.0 | 4.61 | 0.0087 |
2×4 | 6.9×11.5 | 0.8 | 1.0 | 4.61 | 0.0083 |
2×6 | 7.5×12.5 | 0.8 | 1.1 | 3.08 | 0.0074 |
2×6 | 7.8×13.0 | 0.8 | 1.1 | 3.08 | 0.0070 |
2×10 | 9.5×16.2 | 1.0 | 1.2 | 1.83 | 0.0067 |
3×0.75 | 4.6×9.6 | 0.6 | 0.9 | 24.5 | 0.0013 |
3×1.0 | 4.8×10.1 | 0.6 | 0.9 | 18.1 | 0.0012 |
3×1.5 | 5.3×11.7 | 0.7 | 0.9 | 12.1 | 0.0011 |
3×2.5 | 6.2×14 | 0.8 | 1.0 | 7.41 | 0.0010 |
3×4 | 7.0×15.8 | 0.8 | 1.0 | 4.61 | 0.0087 |
3×4 | 7.1×16.3 | 0.8 | 1.0 | 4.61 | 0.0083 |
3×6 | 7.5×17.5 | 0.8 | 1.1 | 3.08 | 0.0074 |
3×6 | 7.8×18.2 | 0.8 | 1.1 | 3.08 | 0.0070 |
3×10 | 9.5×23 | 0.8 | 1.2 | 1.83 | 0.0067 |
