Application:

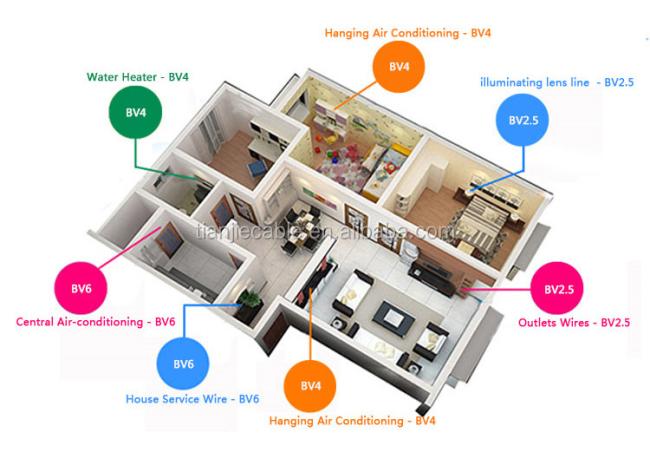

Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required. Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
16mm2 BVR Stranded Copper Conductor PVC insulated electric cable CCC certified cable comply with gb/t5023.3-2008
Price:
$0.05 - $1.00/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Details Images
Products Description
CCC certified products: PVC Insulated Flexible Cables and Wires.
60227 IEC 01(BV): 450/750V 1.5-25mm2
Flame retardant properties: IEC 60332-1
60227 IEC 01(BVR): 450/750V 2.5-25mm2
Rated Temperature:0°C to +70°C
Related Standards:
GB/T 5023.3-2008,IEC60227-3:1997,JB/T8734.2-2016
Flame retardant properties: IEC 60332-1

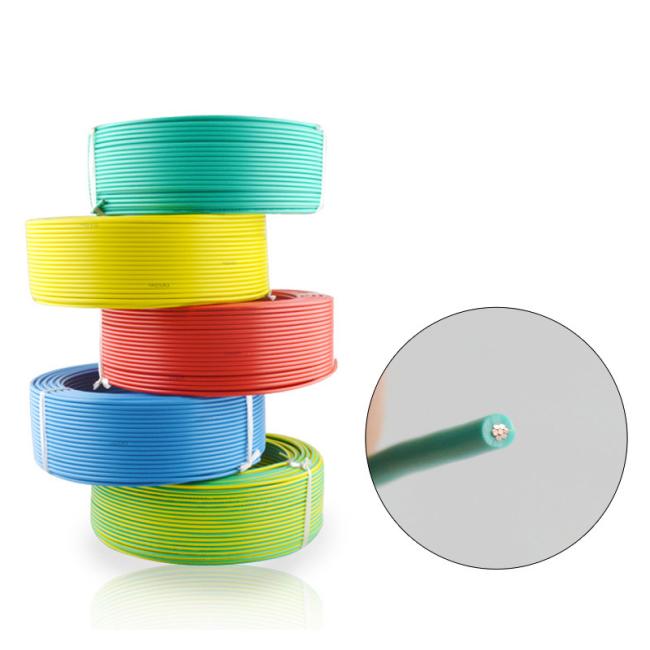

Packing method: 100m/roll or customized.
Area of Conductor | Conductors | (kg/km) | Maximun outer diameter | Max. Resistance at 20℃(Ohms/km) |
2.5 | 19/0.41 | 34.7 | 4.2 | 7.41 |
4 | 19/0.52 | 51.4 | 4.8 | 4.61 |
6 | 19/0.64 | 73.6 | 5.6 | 3.08 |
10 | 49/0.52 | 129 | 7.6 | 1.83 |
16 | 49/0.64 | 186 | 8.8 | 1.2 |
25 | 98/0.58 | 306 | 11 | 1.15 |
