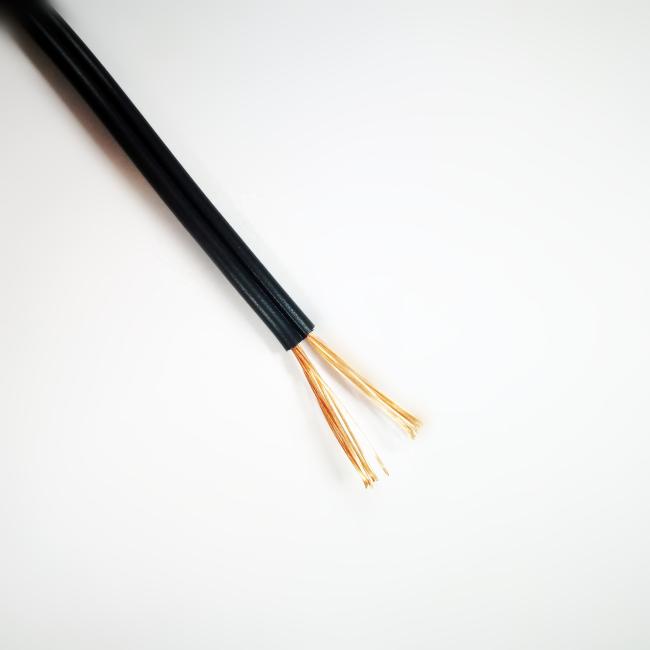

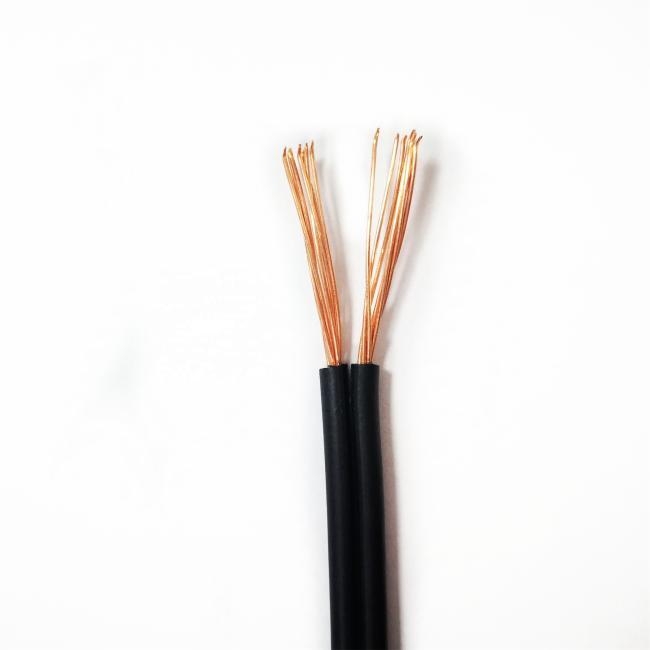

TIANJIE - ULECC Cable UL1493 Approved Direct Burial Underground Copper Cable Landscape Lighting Wire and Cable PVC Insulated
Price:
$0.05 - $2.50/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description








ULECC
Application:
Underground Low Energy circuit Cable (Landscape Lighting Wire) is a superior multi-purpose product.

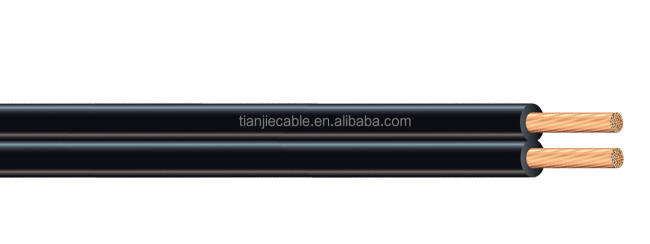

Parallel lay UL 1493 Underground Low Energy Circuit Cable .
Underground Low Energy Circuit Cable for low energy landscape lighting .Direct burial high power or long run speaker level audio for outdoor speakers.
Size (AWG) | Stranded Bare Copper Conductor | Insulation Nom. | Dimensions Nom. |
18 | 16/30 | 0.045"Nom. | 0.145x0.290" Nom |
16 | 26/30 | 0.045"Nom. | 0.160"X0.320" Nom |
14 | 41/30 | 0.045"Nom. | 0.175"X0.350"Nom |
12 | 65/30 | 0.045"Nom. | 0.195"X0.390"Nom |
10 | 105/30 | 0.045"Nom. | 0.220"X0.440"Nom |
8 | 165/30 | 0.06" Nom. | 0.295"X0.590"Nom |
Physical Structure: | ||||||
Conductor | Stranded Bare Copper, 8AWG, Diameter 168x 0.254mm 4.30±0.1mm | |||||
Insulation/Jacket | SR-PVC(Black) | |||||
Insulation/Jacket Size | Min:5.7x18.0± 0.5 mm | |||||
A | Min:0.76mm | |||||
B | Min:0.69mm | |||||
C | Min:0.33mm | |||||
D | Min:1.19mm | |||||
Mechanical Properties: | ||||||
Rated temperature | 75℃ | |||||
Bend radius | 20 x D | |||||
Operating temperature range: | -20℃ to 75℃ | |||||
Electrical Properties: | ||||||
DCR Conductor to Conductor | 2.1Ω/km | |||||
Voltage | 150V | |||||
Insulation Resistance | ≥5000MΩ.km | |||||

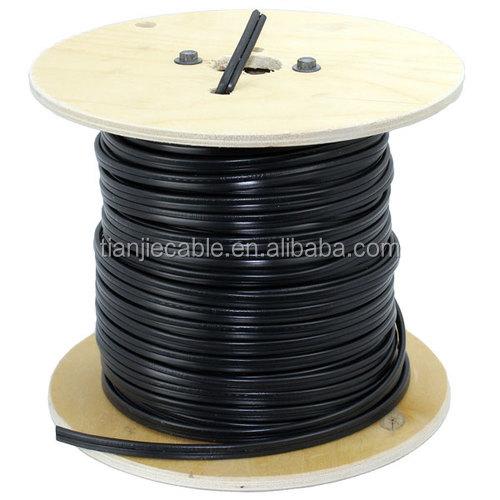

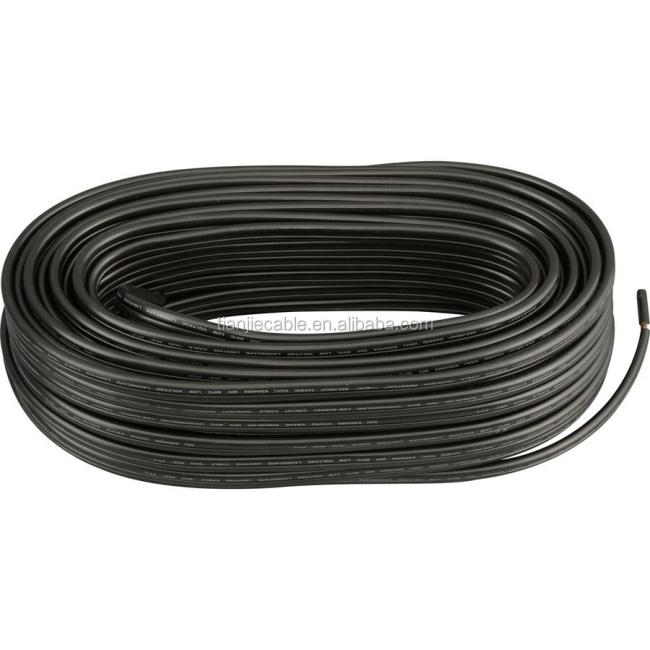

Product packaging
