TIANJIE - 24AWG UL1015 600V 105C Copper or Tinned Copper Electronic Wire PVC hook-up wire Appliance Wiring Material (AWM) style
Price:
$0.05 - $1.00/meters
MOQ:
10000 meters
Delivery Time:
Negotiable
Brand:
Tianjie/OEM
Product Description
UL1015 / AWM 1015 wire
The UL1015 hook-up wire is a PVC hook-up wire which is an Appliance Wiring Material (AWM) style that is based on the requirements of UL Standard 758, Appliance Wiring Materials. AWM 1015 is a general style for a single conductor wire that has an 80, 90 or 105°C temperature rating.
UL 1015 wire also has a wide variety of applications including internal wiring for appliance and electronic equipment, panels, meters, point-to-point wiring, wiring and cable assemblies in data and electronic equipment and many other applications.
Most UL1015 / AWM 1015 wires you'll find on the market are 105°C with a 600 Vac, 750 Vdc voltage rating, a Horizontal flame test rating, and an Optional 60 or 80°C Oil.
Most UL1015 / AWM 1015 wires you'll find on the market are 105°C with a 600 Vac, 750 Vdc voltage rating, a Horizontal flame test rating, and an Optional 60 or 80°C Oil.
UL1015 / AWM 1015 Construction:

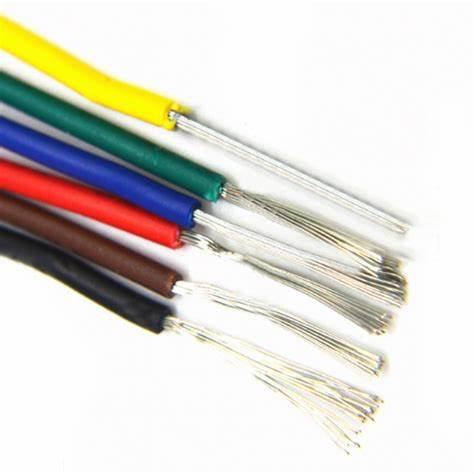

* Conductor: Stranded or Solid Tinned Copper (denoted by 'T' in the part number) or Bare Copper (denoted by 'B' in part number)
* Insulation: Polyvinylchloride (PVC), Nominal Insulation Thickness: 0.031"
UL1015 / AWM 1015 Characteristics:
* Temperature Range: -40°C to +105°C
* Voltage Rating: 600 Volts
UL1015 / AWM 1015 Applications:
* UL1015, AWM 1015 may be used for the internal wiring of appliances where exposed to oil at a temperature not exceeding 60°C or 80°C.
* Conductor: Stranded or Solid Tinned Copper (denoted by 'T' in the part number) or Bare Copper (denoted by 'B' in part number)
* Insulation: Polyvinylchloride (PVC), Nominal Insulation Thickness: 0.031"
UL1015 / AWM 1015 Characteristics:
* Temperature Range: -40°C to +105°C
* Voltage Rating: 600 Volts
UL1015 / AWM 1015 Applications:
* UL1015, AWM 1015 may be used for the internal wiring of appliances where exposed to oil at a temperature not exceeding 60°C or 80°C.

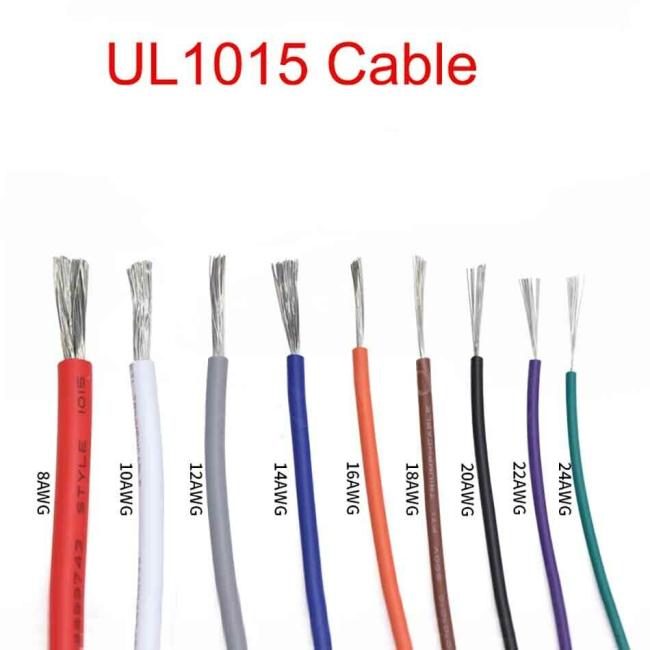

Part Number | AWG Size | Conductor Stranding | Nom. O.D. (in) | Approx LBS/MFT | UL Style | Nom. Insul. Thick. (in) |
15-26-1T | 26 | Solid | 0.0800 | 3.91 | 1015 | 0.031 |
15-26-7T | 26 | 7/34 | 0.0830 | 4.00 | 1015 | 0.031 |
15-24-1T | 24 | Solid | 0.0840 | 4.97 | 1015 | 0.031 |
15-24-7T | 24 | 7/32 | 0.0880 | 5.11 | 1015 | 0.031 |
15-22-1T | 22 | Solid | 0.0890 | 6.04 | 1015 | 0.031 |
15-22-7T | 22 | 7/30 | 0.0950 | 6.27 | 1015 | 0.031 |
15-20-1T | 20 | Solid | 0.0960 | 7.59 | 1015 | 0.031 |
15-20-10T | 20 | 10/30 | 0.1000 | 8.50 | 1015 | 0.031 |
15-18-1T | 18 | Solid | 0.1040 | 10.10 | 1015 | 0.031 |
15-18-1B | 18 | Solid | 0.1040 | 10.10 | 1015 | 0.031 |
15-18-7T | 18 | 7/0.0152 | 0.115 | 10.00 | 1015 | 0.030 |
15-18-16T | 18 | 16/30 | 0.1100 | 10.16 | 1015 | 0.031 |
15-18-16B | 18 | 16/30 | 0.1100 | 10.16 | 1015 | 0.031 |
15-16-1T | 16 | Solid | 0.1150 | 14.12 | 1015 | 0.031 |
15-16-26T | 16 | 26/30 | 0.1240 | 14.36 | 1015 | 0.031 |
15-16-26B | 16 | 26/30 | 0.1240 | 14.36 | 1015 | 0.031 |
15-14-1T | 14 | Solid | 0.1280 | 22.00 | 1015 | 0.031 |
15-14-41T | 14 | 41/30 | 0.1410 | 20.10 | 1015 | 0.031 |
15-14-19B | 14 | 19/.0147 | 0.1340 | 21.00 | 1015 | 0.032 |
15-14-41B | 14 | 41/30 | 0.1410 | 20.10 | 1015 | 0.031 |
15-12-1T | 12 | Solid | 0.1450 | 29.23 | 1015 | 0.031 |
15-12-19B | 12 | 19/30 | 0.1560 | 0.00 | 1015 | 0.031 |
15-12-65T | 12 | 65/30 | 0.1600 | 0 | 1015 | 0.031 |
15-12-65B | 12 | 65/30 | 0.1600 | 29.66 | 1015 | 0.031 |
15-10-1T | 10 | Solid | 0.1640 | 41.70 | 1015 | 0.031 |
15-10-105T | 10 | 105/30 | 0.1940 | 42.20 | 1015 | 0.031 |
15-10-105B | 10 | 105/30 | 0.1940 | 42.20 | 1015 | 0.031 |
15-10-19B | 10 | 19/0.0234 | 0.181 | 43.00 | 1015 | 0.030 |
