European Standard H05V H07V single core stranded copper electric cables and wires
Price:
$0.05 - $0.50/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Details Images
Products Description
Technical Data: Max. operating temperature 70 ºC; Short circuit temperature 160 ºC
Construction | Application | Nominla Cross Section | Wire Diameter | Thickness of Insulation | Approx. Overall Dia | |
mm2 | mm | mm | mm | |||

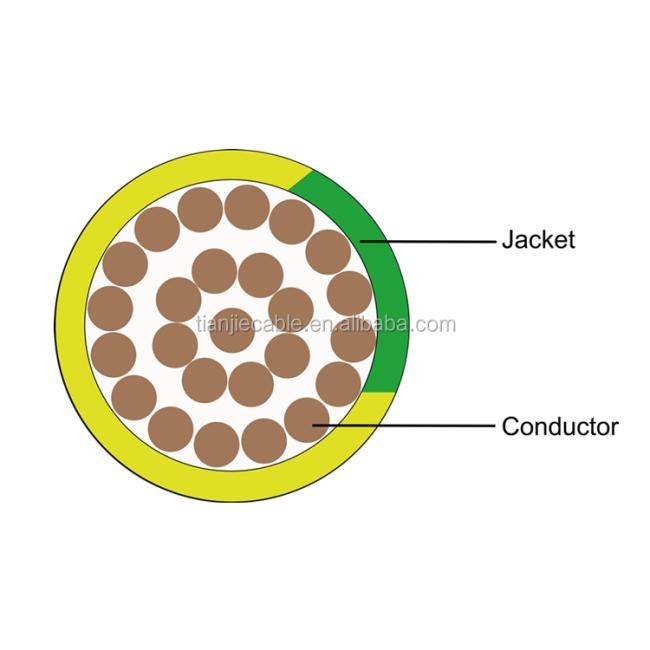

H05V-K 300 / 500 V | 1- Flexible Copper Conductor 2- PVC Insulation | For protected installation in equipment and lighting fitting. Also for in conduit, on and under plaster. | 0.5 | 15X0.2 | 0.6 | 2.2 |
0.75 | 22X0.2 | 0.6 | 2.3 | |||
1 | 30X20 | 0.6 | 2.6 | |||
H07V-K 450 / 750 V | 1- Flexible Copper Conductor 2- PVC Insulation | For protected installation in equipment and lighting fitting. Also for in conduit, on and under plaster. | 1.5 | 27X0.25 | 0.7 | 2.9 |
2.5 | 45X0.25 | 0.8 | 3.6 | |||

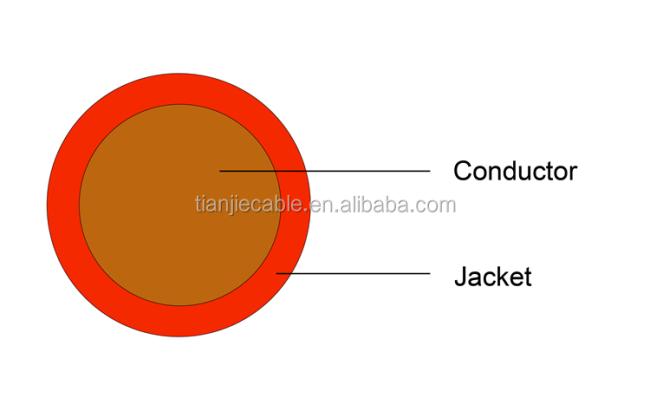

H07V-U 450 / 750 V | 1- Solid Copper Conductor 2- PVC Insulation | Preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. | 1.5 | 1.35 | 0.7 | 2.7 |
2.5 | 1.73 | 0.8 | 3.2 | |||
4 | 2.19 | 0.8 | 3.7 | |||
6 | 2.68 | 0.8 | 4.2 | |||
10 | 3.5 | 1 | 5.4 | |||

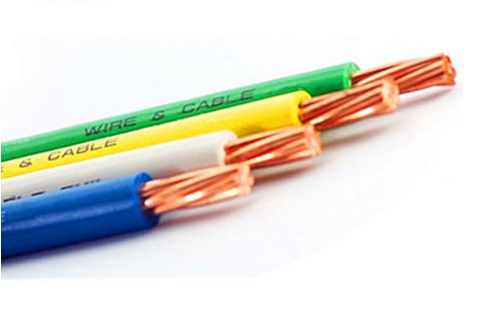

H07V-R 450 / 750 V | 1- Stranded Copper Conductor 2- PVC Insulation | Preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. | 1.5 | 7X0.51 | 0.7 | 2.8 |
2.5 | 7X0.66 | 0.8 | 3.4 |
