European Standard H05V H07V multi cores stranded copper PVC Installation Copper electric cables and wires
Price:
$0.05 - $1.00/meters
MOQ:
1000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Details Images
Product | H05VV-H |
Insulation Colour | Green/Yellow,White, Black, Blue, Brown and Grey |
Core | 2/3/4/5/6/, strand or solid available on request |
Outer Sheath | PVC Compound ; colours are grey, white and black |
Related Voltage | 300 / 500 V |
Temperature Range | 0°C to +70°C |
Features | Radiation Resistant, Flame Retardant and Low smoke and halogen free |
Products Description

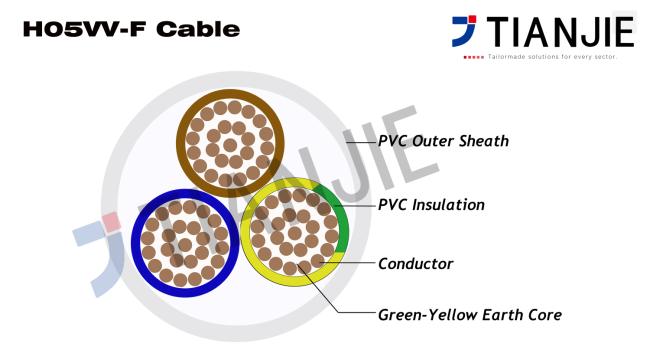

H05VV-F cable has been specially designed for connecting small home appliances such as vacuum cleaners, washing machines, refrigerators, kitchen utensils, heating and cooking equipment, etc. It is recommended for household installations and can also be used for light mobile services. These cables are also suitable for fixed applications in furniture, wall partitions, and in hollow spaces of prefabricated building parts.
Core Identification:
2 cores: Blue, Brown
3 cores: Green/Yellow, Brown, Black
4 cores: Green/Yellow, Brown, Black, Grey
5 cores: Geen/Yellow, Brouwn, Black, Grey, Blue
2 cores: Blue, Brown
3 cores: Green/Yellow, Brown, Black
4 cores: Green/Yellow, Brown, Black, Grey
5 cores: Geen/Yellow, Brouwn, Black, Grey, Blue
NO. of Cores &Nominla Cross Section | No. of wires &Diameter | Thickness of Insulation | Thickness of Sheath | Approx. Overall Dia | Conductor DC Resistance at 20°C | Max.Current Carrying Capacity at 30°C |
mm2 | mm | mm | mm | mm | ohms/km | Air A |
2x0.75 | 22x0.2 | 0.6 | 0.8 | 6.4 | 26 | 8 |
2x1 | 30x0.2 | 0.6 | 0.8 | 6.6 | 19.5 | 12 |
2x1.5 | 27x0.25 | 0.7 | 0.8 | 7.4 | 91 | 18 |
2x2.5 | 45x0.25 | 0.8 | 1 | 9.2 | 7.98 | 26 |
2x4 | 50x0.3 | 0.8 | 1.1 | 11 | 189 | 32 |
3x0.75 | 22x0.2 | 0.6 | 0.8 | 6.8 | 26 | 8 |
3x1 | 30x0.2 | 0.6 | 0.8 | 7 | 19.5 | 12 |
3x1.5 | 27x0.25 | 0.7 | 0.9 | 8.1 | 109 | 18 |
3x2.5 | 45x0.25 | 0.8 | 1.1 | 10 | 7.98 | 26 |
3x4 | 50x0.3 | 0.8 | 1.2 | 11.9 | 4.95 | 32 |
4x0.75 | 22x0.2 | 0.6 | 0.8 | 7.4 | 26 | 8 |
4x1 | 30x0.2 | 0.6 | 0.8 | 7.9 | 19.5 | 12 |
4x1.5 | 27x0.25 | 0.7 | 0.8 | 9 | 13.3 | 18 |
4x2.5 | 45x0.25 | 0.8 | 1.1 | 10.9 | 7.98 | 26 |
4x4 | 50x0.3 | 0.8 | 1.2 | 13.2 | 306 | 32 |
5x0.75 | 22x0.2 | 0.6 | 0.9 | 8.3 | 101 | 8 |
5x1 | 30x0.2 | 0.6 | 0.9 | 8.6 | 19.5 | 12 |
5x1.5 | 27x0.25 | 0.7 | 1 | 10.1 | 13.3 | 18 |
5x2.5 | 45x0.25 | 0.8 | 1.2 | 12.8 | 7.98 | 26 |
5x4 | 50x0.3 | 0.8 | 1.4 | 14.8 | 4.95 | 32 |
