TIANJIE - 60227 IEC 53(RVV) 300/500V RVV 4C*1.0mm2 PVC insulated flexible electric cables and wires
Price:
$0.01 - $1.00/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description

Details Images







Application
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible
required.

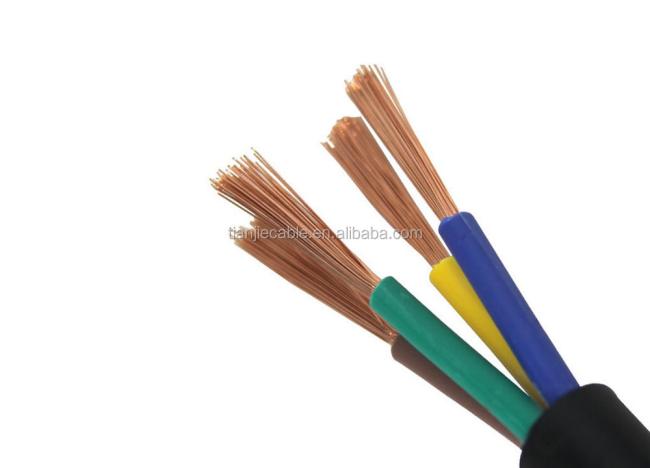

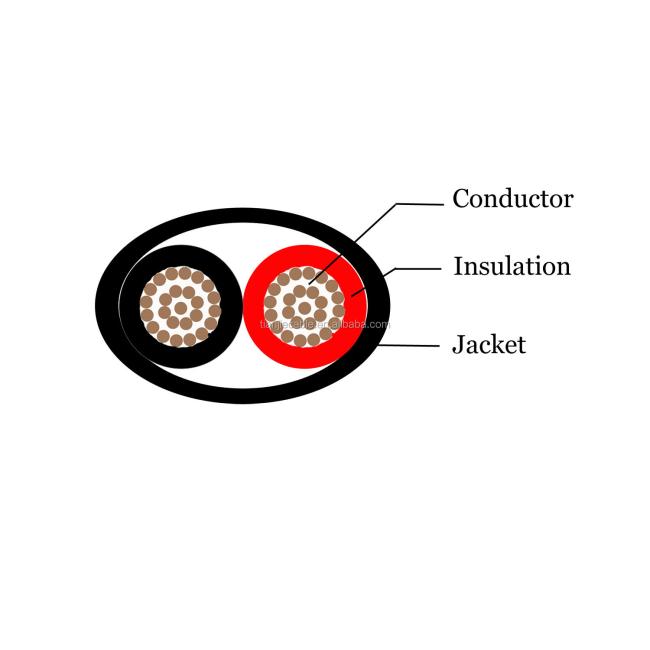

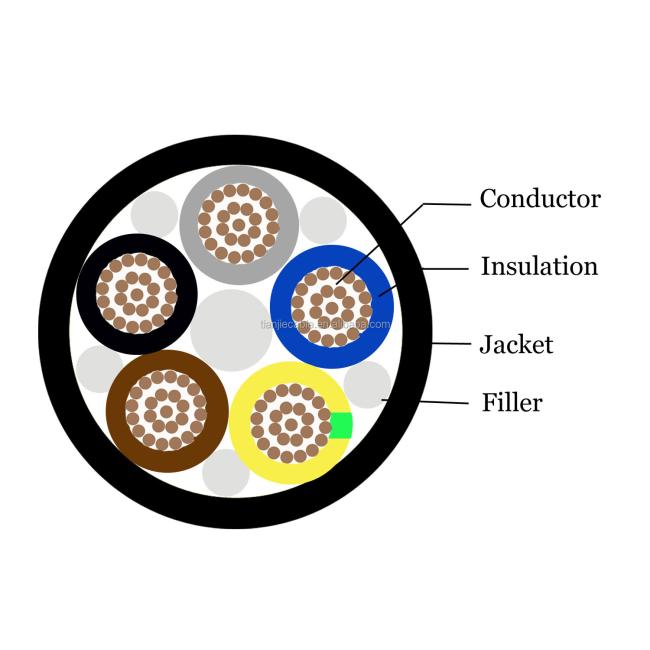

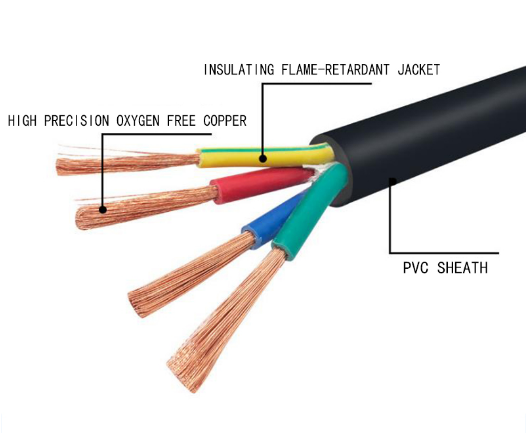

Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
CCC certified products: PVC Insulated Flexible Cables and Wires.
60227 IEC 52: 300/300V 0.5-0.75mm2(2-3cores)
60227 IEC 53: 300/500V 0.75-2.5mm2(2-5cores)
Rated Temperature:-30°C to +70°C
Related Standards:GB/T 5023.5-2008,IEC60227-5:2003
Flame retardant properties: IEC 60332-1
Packing method: 100m/roll or customized.
required.
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
CCC certified products: PVC Insulated Flexible Cables and Wires.
60227 IEC 52: 300/300V 0.5-0.75mm2(2-3cores)
60227 IEC 53: 300/500V 0.75-2.5mm2(2-5cores)
Rated Temperature:-30°C to +70°C
Related Standards:GB/T 5023.5-2008,IEC60227-5:2003
Flame retardant properties: IEC 60332-1
Packing method: 100m/roll or customized.
Core | Area of Conductor | Number of wires | Diameter of Each wire | Max. Resistance at 20℃ | Nominal Insulation Thickness | Nominal Jacket Thickness | Maximun outer diameter | |
mm2 | mm | mm | Ohms/km | mm | mm | mm | ||
300/ 300V | 2 | 0.5 | 16 | 0.2 | 39 | 0.5 | 0.6 | 6.2 |
2 | 0.75 | 24 | 0.2 | 26 | 0.5 | 0.6 | 6.6 | |
3 | 0.5 | 16 | 0.2 | 39 | 0.5 | 0.6 | 6.6 | |
3 | 0.75 | 24 | 0.2 | 26 | 0.5 | 0.6 | 7 |
Core | Area of Conductor | Number of wires | Diameter of Each wire | Max. Resistance at 20℃ | Nominal Insulation Thickness | Nominal Jacket Thickness | Maximun outer diameter | |
mm2 | mm | mm | Ohms/km | mm | mm | mm | ||
300/ 500V | 2 | 0.75 | 24 | 0.2 | 26 | 0.6 | 0.8 | 7.6 |
2 | 1 | 32 | 0.2 | 19.5 | 0.6 | 0.8 | 7.8 | |
2 | 1.5 | 48 | 0.2 | 13.3 | 0.7 | 0.8 | 8.8 | |
2 | 2.5 | 80 | 0.2 | 7.98 | 0.8 | 1 | 11 | |
3 | 0.75 | 24 | 0.2 | 26 | 0.6 | 0.8 | 8 | |
3 | 1 | 32 | 0.2 | 19.5 | 0.6 | 0.8 | 8.4 | |
3 | 1.5 | 48 | 0.2 | 13.3 | 0.7 | 0.9 | 9.6 | |
3 | 2.5 | 80 | 0.2 | 7.98 | 0.8 | 1.1 | 11.5 | |
4 | 0.75 | 24 | 0.2 | 26 | 0.6 | 0.8 | 8.6 | |
4 | 1 | 32 | 0.2 | 19.5 | 0.6 | 0.9 | 9.2 | |
4 | 1.5 | 48 | 0.2 | 13.3 | 0.7 | 1 | 11 | |
4 | 2.5 | 80 | 0.2 | 7.98 | 0.8 | 1.1 | 12.5 | |
5 | 0.75 | 24 | 0.2 | 26 | 0.6 | 0.9 | 9.4 | |
5 | 1 | 32 | 0.2 | 19.5 | 0.6 | 0.9 | 11 | |
5 | 1.5 | 48 | 0.2 | 13.3 | 0.7 | 1.1 | 12 | |
5 | 2.5 | 80 | 0.2 | 7.98 | 0.8 | 1.2 | 14 |
