RVV 5*1.5mm2 PVC insulated flexible electrical cables and wires 60227 IEC 53(RVV) 300/500V CCC certified

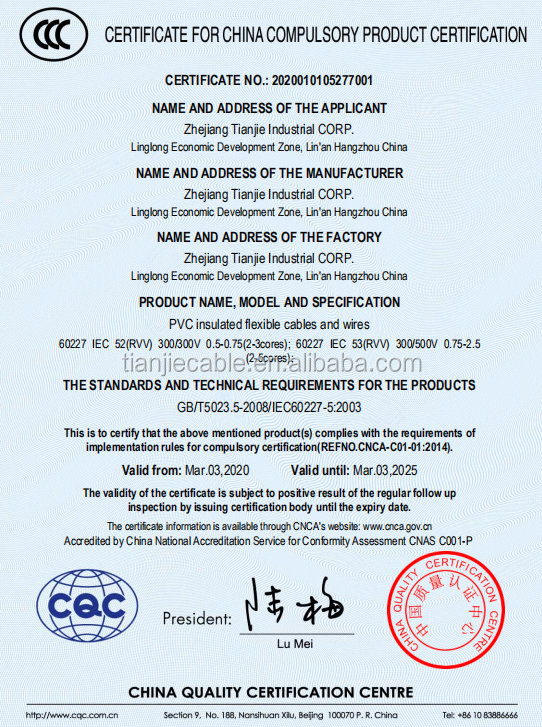

Name: RVV 5*1.5mm2 PVC insulated flexible electrical cables and wires 60227 IEC 53(RVV) 300/500V CCC certified
Brand: ZHEJIANG TIAN-JIE Industrial Corp

Price Negotiable

Price: $0.01 - $0.45/meters

MOQ: 10000 meters

Delivery Time: Negotiable

Brand: TIANJIE/OEM

Product Description

Details Images

Application

Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required.

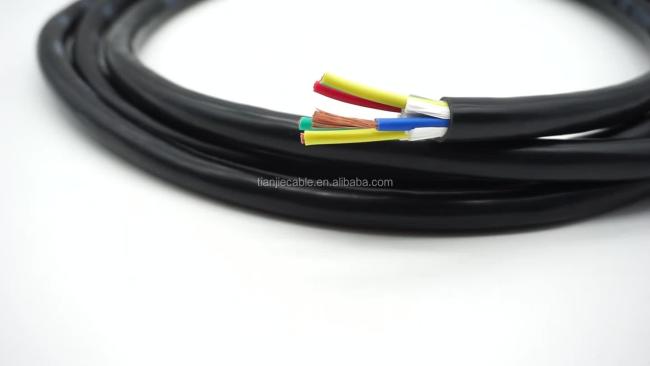

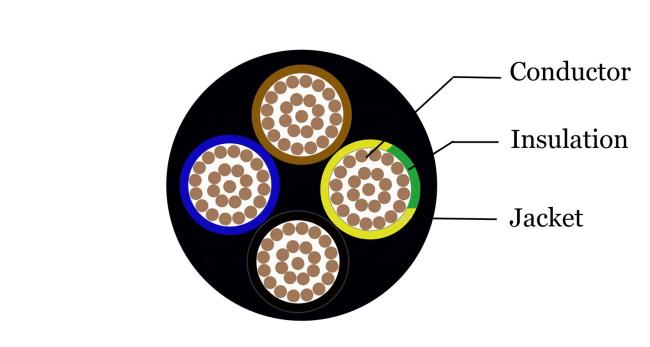

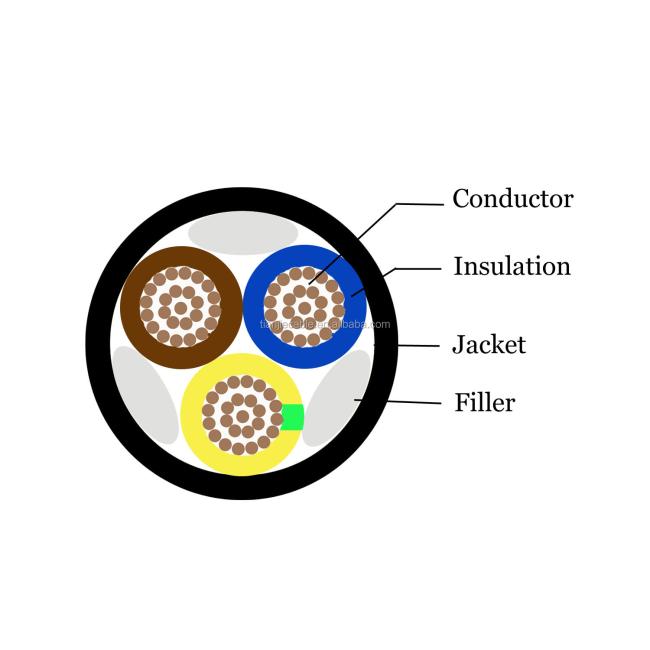

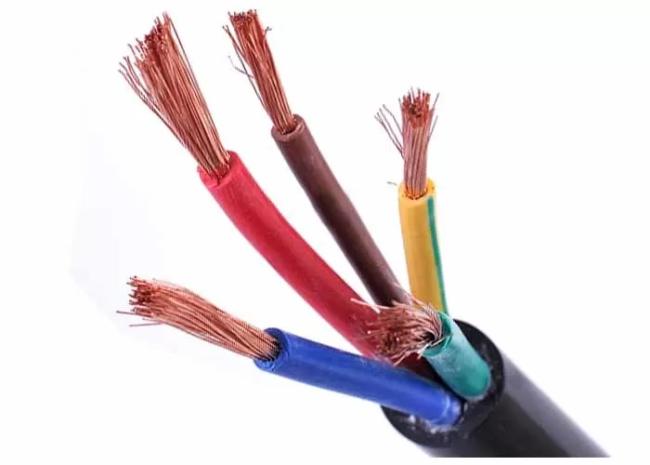

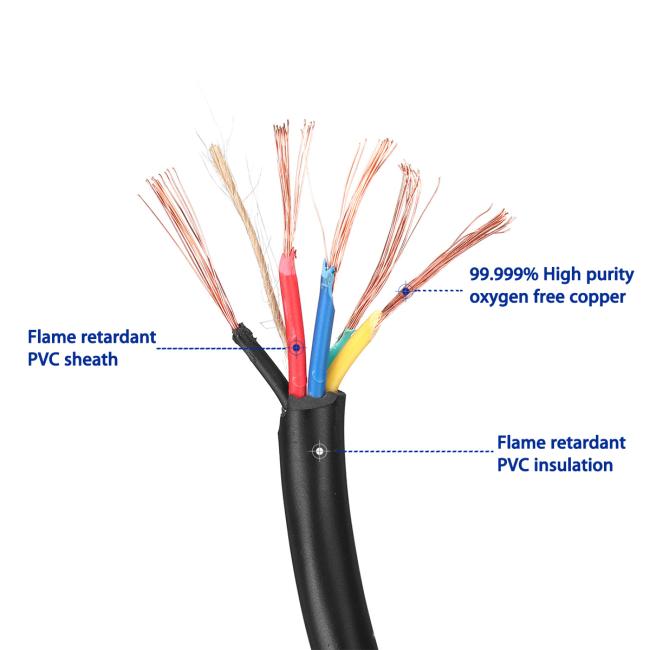

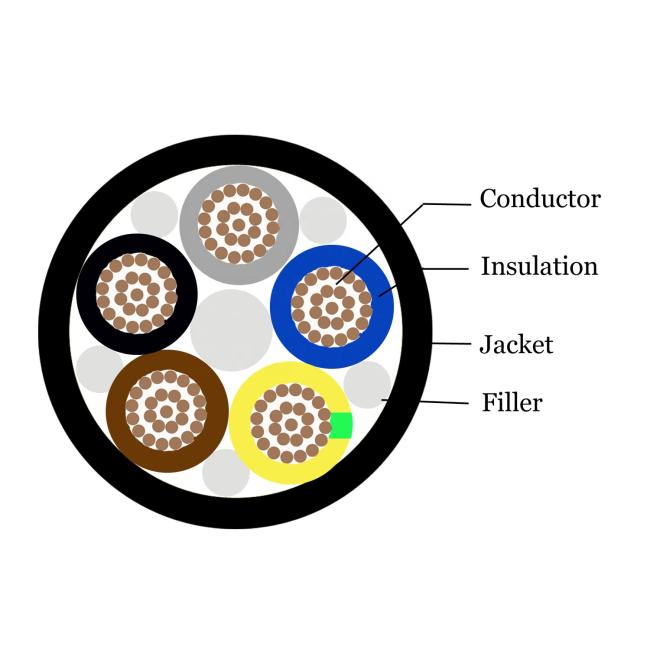

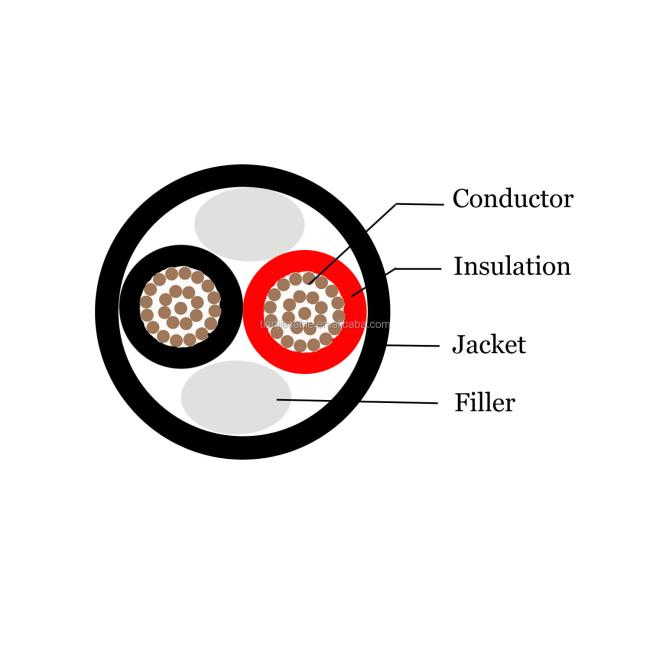

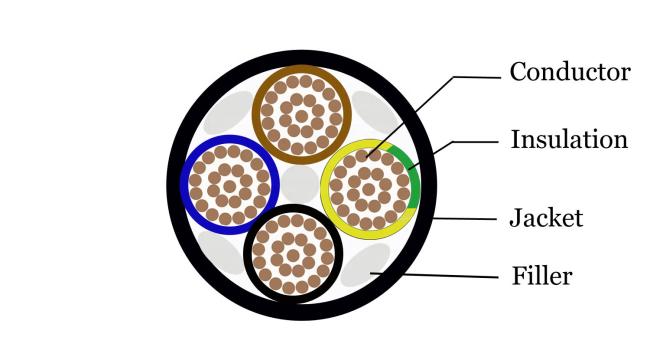

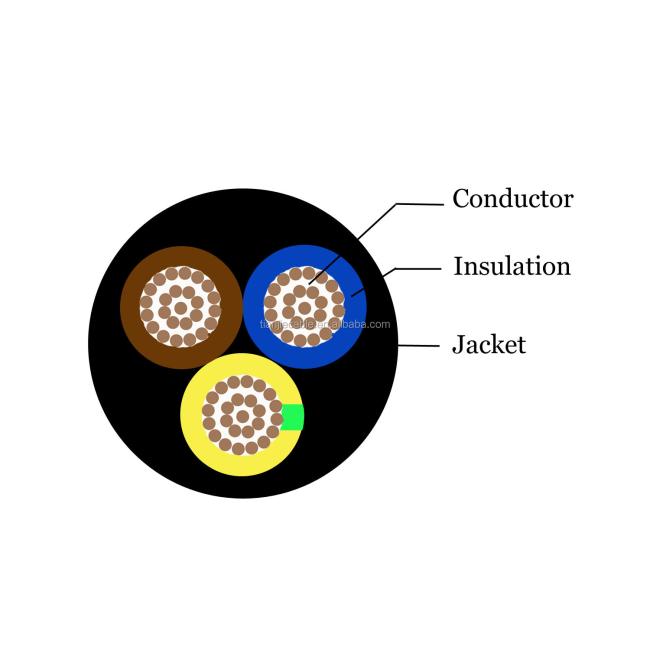

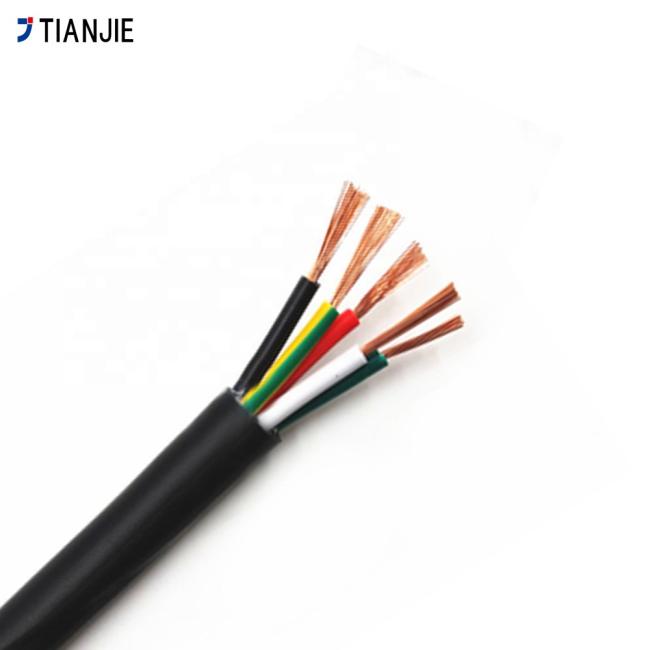

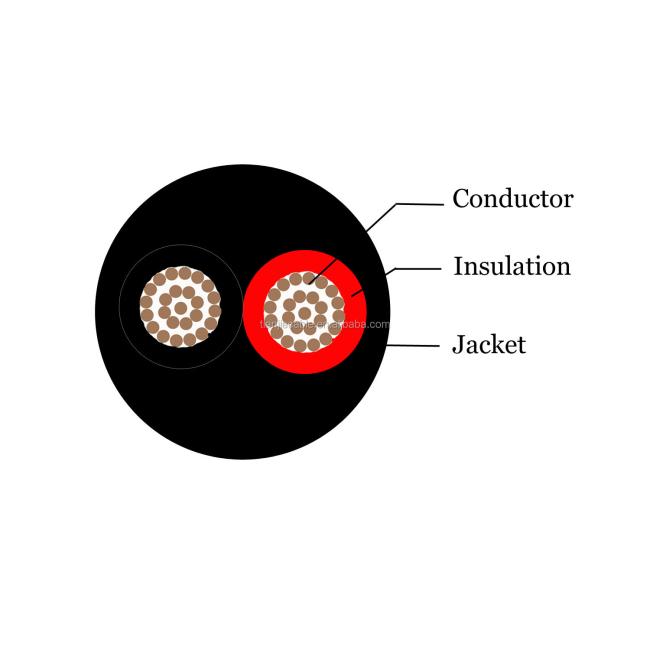

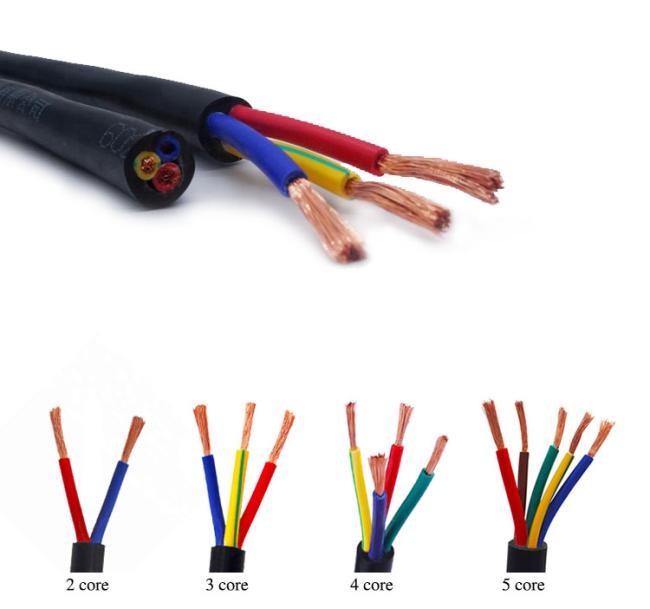

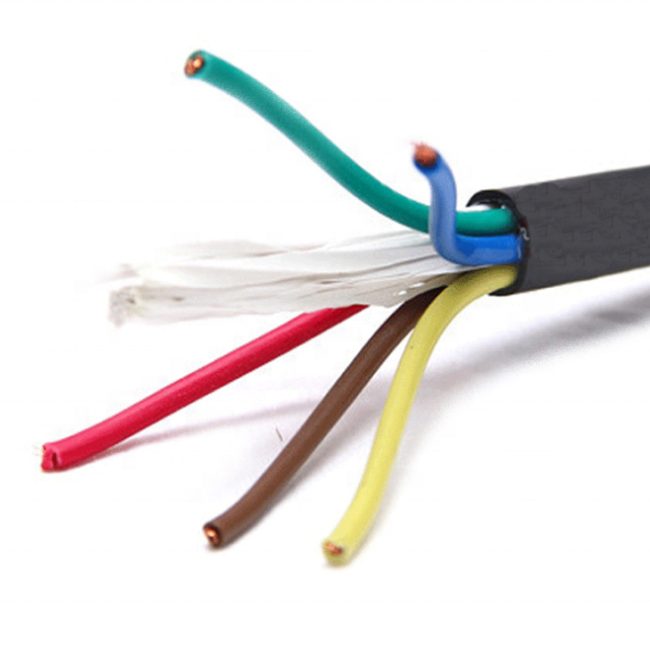

Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)

Rated Temperature:-30°C to +70°C

60227 IEC 52: 300/300V

60227 IEC 53: 300/500V

Related Standards:GB 5023,IEC60227

Flame retardant properties: IEC 60332-1

	Core	Area of Conductor	Number of wires	Diameter of Each wire	Max. Resistance at 20℃	Nominal Insulation Thickness	Nominal Jacket Thickness	Maximun outer diameter
		mm2	mm	mm	Ohms/km	mm	mm	mm
300/ 300V	2	0.5	16	0.2	39	0.5	0.6	6.2
		2	0.75	24	0.2	26	0.5	0.6	6.6
		3	0.5	16	0.2	39	0.5	0.6	6.6
		3	0.75	24	0.2	26	0.5	0.6	7
300/ 500V	2	0.75	24	0.2	26	0.6	0.8	7.6
		2	1	32	0.2	19.5	0.6	0.8	7.8
		2	1.5	48	0.2	13.3	0.7	0.8	8.8
		2	2.5	80	0.2	7.98	0.8	1	11
		3	0.75	24	0.2	26	0.6	0.8	8
		3	1	32	0.2	19.5	0.6	0.8	8.4
		3	1.5	48	0.2	13.3	0.7	0.9	9.6
		3	2.5	80	0.2	7.98	0.8	1.1	11.5
		4	0.75	24	0.2	26	0.6	0.8	8.6
		4	1	32	0.2	19.5	0.6	0.9	9.2
		4	1.5	48	0.2	13.3	0.7	1	11
		4	2.5	80	0.2	7.98	0.8	1.1	12.5
		5	0.75	24	0.2	26	0.6	0.9	9.4
		5	1	32	0.2	19.5	0.6	0.9	11
		5	1.5	48	0.2	13.3	0.7	1.1	12
		5	2.5	80	0.2	7.98	0.8	1.2	14
