TIANJIE - 0.5mm2 - 25mm2 BV BVR Stranded or Solid Conductor house wiring electric wire and cable 300/500v 450/750v
Price:
$0.05 - $1.00/meters
MOQ:
10000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description

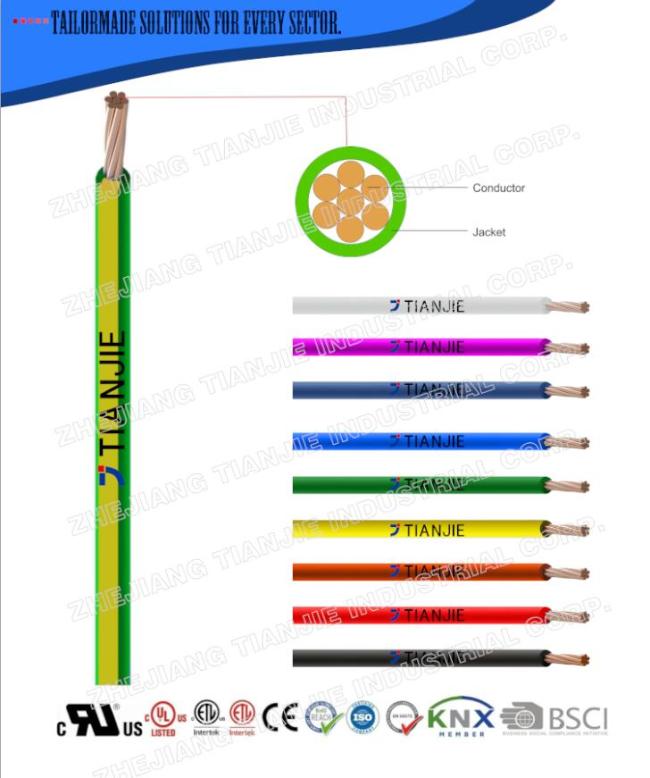

Product Show
Application
Be used for general purpose indoor and outdoor as building wire for power,lighting and control wiring,also electrical tools.
1.Single core electrical house wire.
2.Conductor: solid or stranded or flexible.
3.Insulation: PVC insulation
Normal Area(mm²) | Structure (mm) | Approx O.D (mm) | Conductor resistance at 20C(≤Ωkm) | |
BV 300/500V | 0.5 | 1/0.8 | 2.4 | 36 |
0.75(A) | 1/0.97 | 2.6 | 24.5 | |
0.75(B) | 7/0.37 | 2.8 | 24.5 | |
1(A) | 1/1.13 | 2.8 | 18.1 | |
1(B) | 7/0.43 | 3 | 18.1 | |
BV 450/750V | 1.5(A) | 1/1.38 | 3.3 | - |
1.5(B) | 7/0.52 | 3.5 | - | |
2.5(A) | 1/1.78 | 3.9 | 11.8 | |
2.5(B) | 7/0.68 | 4.2 | 11.8 | |
4(A) | 1/2.26 | 4.4 | 7.39 | |
4(B) | 7/0.85 | 4.8 | 7.39 | |
6(A) | 1/2.76 | 5.0 | 4.91 | |
6(B) | 7/1.04 | 5.4 | 4.91 | |
10 | 7/1.35 | 7 | 3.08 | |
16 | 7/1.70 | 8 | 1.91 | |
25 | 27/2.04 | 10 | 1.2 | |
35 | 27/2.52 | 11.5 | 0.868 | |
50 | 19/1.78 | 13 | 0.641 | |
70 | 19/2.14 | 15 | 0.443 | |
95 | 19/2.52 | 17.5 | 0.32 | |
120 | 37/2.03 | 19 | 0.253 | |
150 | 37/2.25 | 21 | 0.206 | |
185 | 37/2.52 | 23.5 | 0.164 | |
240 | 61/2.25 | 26.5 | 0.125 | |
300 | 61/2.52 | 29.5 | 0.1 |
