Jacket Colour: Black
Jacket Material: LSZH
Conductor Material: Stranded Bare Copper
No. of Max Strands x Strand Size: 28x0.15mm
External Diameter: 5.3±0.2mm
H03Z1Z1-F 2*0.5mm2 LSZH/LSOH jacket LED light cable & electric power cable and Wires
Price:
$0.10 - $0.50/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Product Overview
H03Z1Z1-F 2*0.5mm2 LSZH/LSOH LED light cable

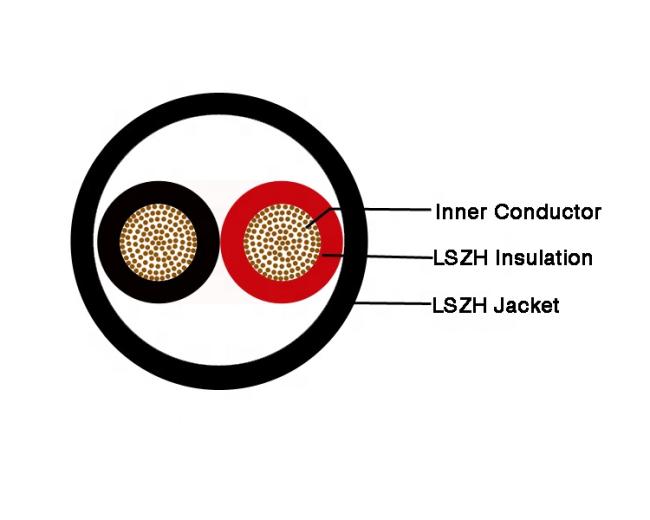

A Electric Cable with stranded copper conductor and LSZH insulation, comes with a black LSZH jacket.
FEATURES AT A GLANCE
Voltage: 300/300V
Jacket Colour: Black
Jacket Material: LSZH
Conductor Material: Stranded Bare Copper
No. of Max Strands x Strand Size: 28x0.15mm
External Diameter: 5.3±0.2mm
Jacket Colour: Black
Jacket Material: LSZH
Conductor Material: Stranded Bare Copper
No. of Max Strands x Strand Size: 28x0.15mm
External Diameter: 5.3±0.2mm
PRODUCT SPECIFICATIONS
Technical Features | ||||||
300 / 300 V Halogen free ,flame retardant flexible multi-core cables. | ||||||
Construction | Cu / Lszh / Lszh | |||||
Application Area | Used in energy networks in hotels,schools,tunnels, high constructions, hospitals, power plants, data processing centers, business centers where there is a risk of fire. | |||||
Max. operating temperature | +70°C | |||||
Min. bending radius | 6xD | |||||
Nominal Cross Section (mm2) | Overall Diameter (mm) | Net Weight (kg/km) | Conductor DC resistance at 20°C (ohm/km) max. | |||
2x0,5 | 5,3 | 40 | 39 | |||
2x0,75 | 5,8 | 50 | 26 | |||
3x0,5 | 5,3 | 44 | 39 | |||
3x0,75 | 5,8 | 54 | 26 | |||
4x0,5 | 5,3 | 54 | 39 | |||
4x0,75 | 6,4 | 68 | 26 | |||

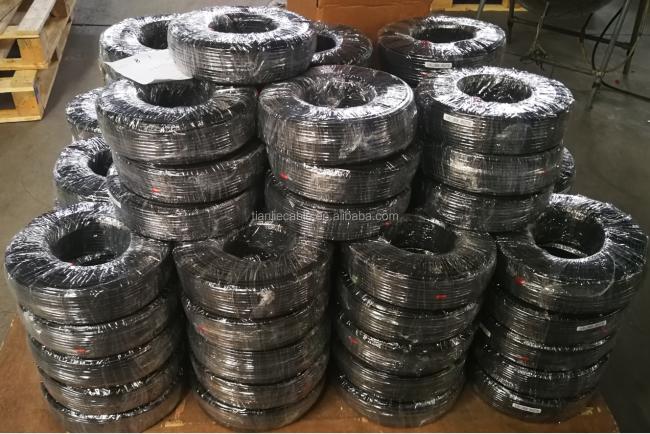

Product packaging
