UL1493 Approved Insulated Power Cable Stranded Copper 18AWG ULECC
Price:
$0.20 - $2.00/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE
Product Description
Product Description
ULECC
Application:

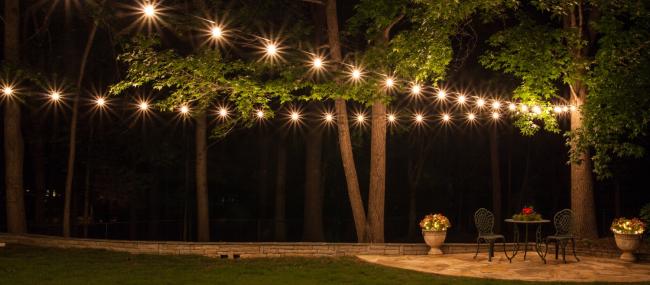

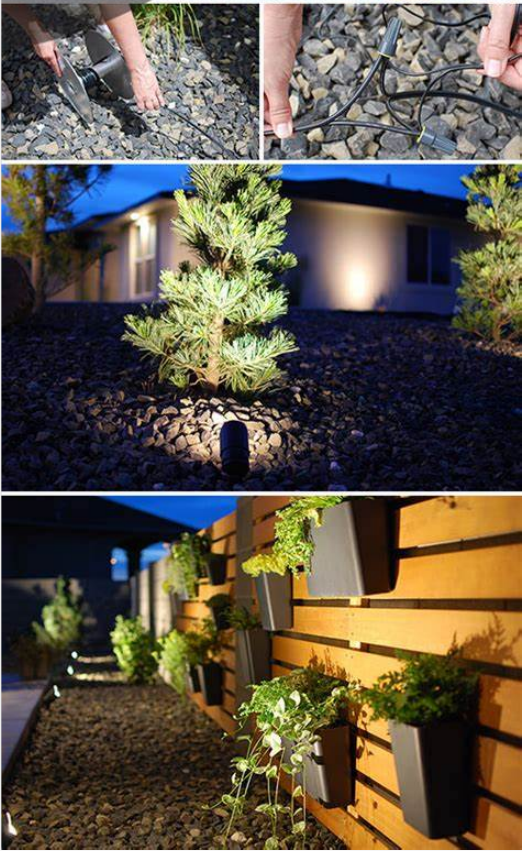

Underground Low Energy circuit Cable (Landscape Lighting Wire) is a superior multi-purpose product.
Parallel lay UL 1493 Underground Low Energy Circuit Cable .
Underground Low Energy Circuit Cable for low energy landscape lighting .Direct burial high power or long run speaker level audio for outdoor speakers.
|
Size (AWG)
|
Stranded Bare Copper Conductor
|
Insulation Nom.
|
Dimensions Nom.
|
|
18
|
16/30
|
0.045"Nom.
|
0.145x0.290" Nom
|
|
16
|
26/30
|
0.045"Nom.
|
0.160"X0.320" Nom
|
|
14
|
41/30
|
0.045"Nom.
|
0.175"X0.350"Nom
|
|
12
|
65/30
|
0.045"Nom.
|
0.195"X0.390"Nom
|
|
10
|
105/30
|
0.045"Nom.
|
0.220"X0.440"Nom
|
|
8
|
165/30
|
0.06" Nom.
|
0.295"X0.590"Nom
|
|

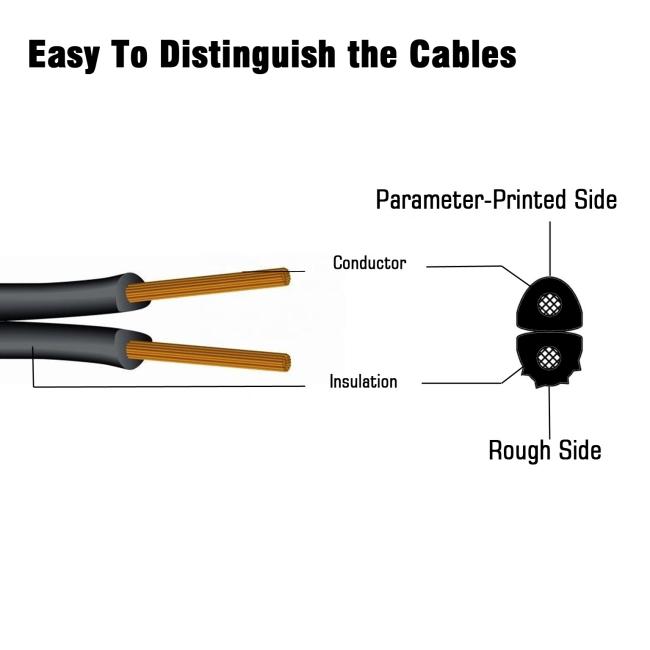

Physical Structure:
|
|
|
|
|||
|
Conductor
|
|

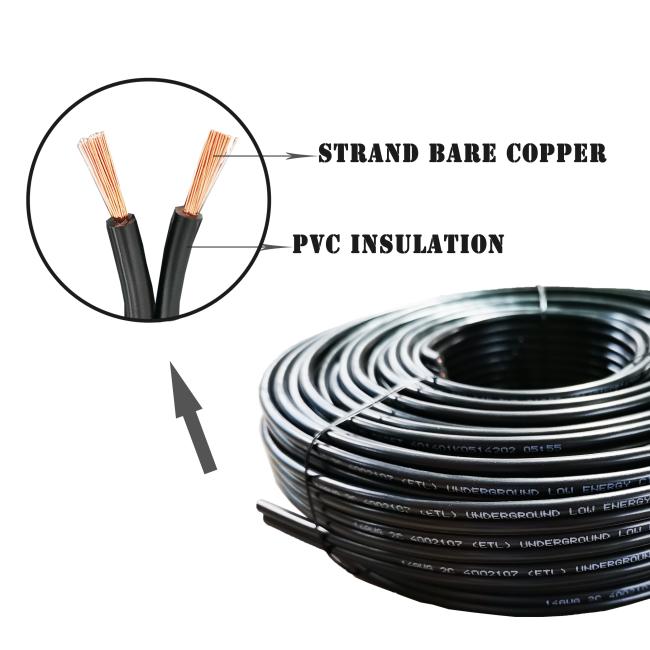

Stranded Bare Copper, 18AWG, Diameter 16x 0.254mm
|
|
|||
|
Insulation/Jacket
|
|
SR-PVC(Black)
|
|
|||
|
Insulation/Jacket Size
|
|
0.145x0.290" Nom
|
|
|||
|
Mechanical Properties:
|
|
|
|
|||
|
Rated temperature
|
|
60℃
|
|
|||
|
Bend radius
|
|
20 x D
|
|
|||
|
Operating temperature range:
|
|
-20℃ to 60℃
|
|
|||
|
Electrical Properties:
|
|
|
|
|||
|
Voltage
|
|
150V
|
|
|||
ULECC Cable
60°C, 150 Volt, UL Listed Type CL2, ETL Complied
ULECC Cable Ratings and Approvals:
SUN RES DIR BUR
Temperature Rating:
-20°C~ +60°C
-20°C~ +60°C
Voltage Rating:
150 volts
ULECC Cable Applications:
Underground Low Energy circuit Cable (Landscape Lighting Wire) is a superior multi-purpose product.
Parallel lay UL 1493 Underground Low Energy Circuit Cable .
Underground Low Energy Circuit Cable for low energy landscape lighting.
Direct burial high power or long run speaker level audio for outdoor speakers.

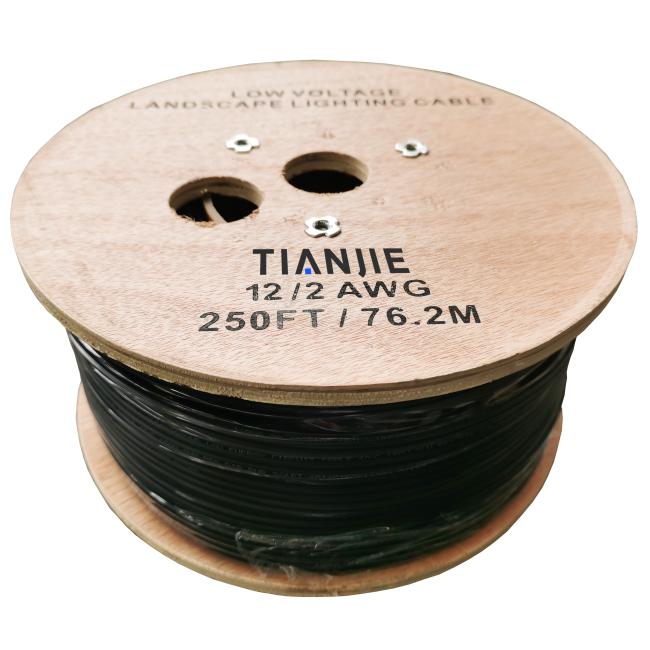

Product packaging
