Jacket Colour: Black /White / or As required
Jacket Material: PVC / PE / LSZH
Conductor Material: Bare Copper / CCS /CCA

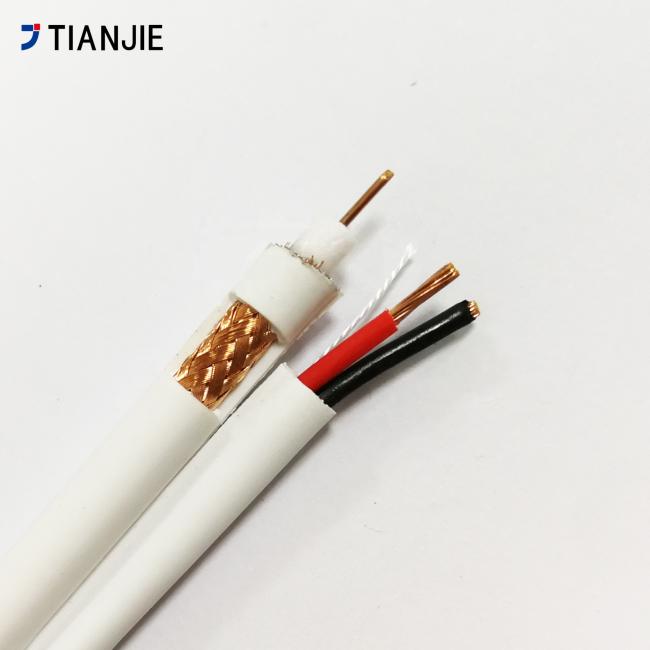

RG6+2C 75 Ohm Coaxial Composite Power Cable 300V Operating Voltage
Price:
$0.10 - $1.00/meters
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
TIANJIE/OEM
Product Description
Composite Cables
Multi-Cores control cables, Coaxial cable+Cat cable, Coaxial cable+power, Cat cable+power,Coaxial cable+Cat cable+M, Coaxial cable+power+M, Cat cable+power+M.
Product Overview

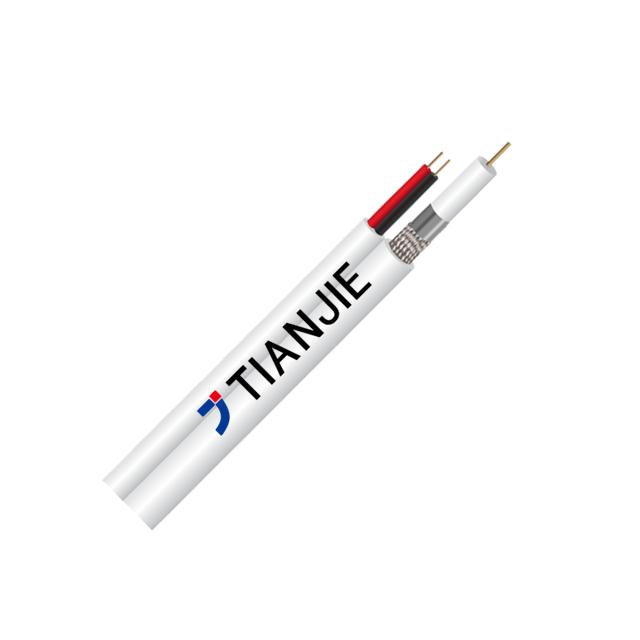

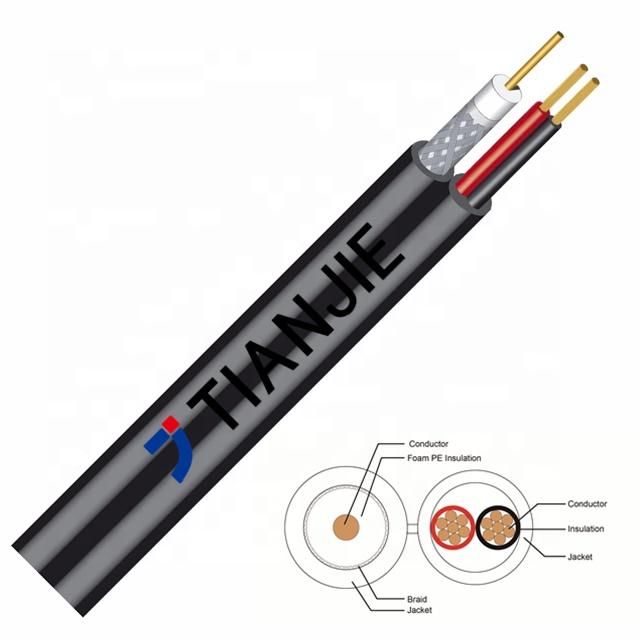

RG6 WITH POWER - Siamese Cable
1. Application
Home Entertainment, Home Structured Cabling, Residential Voice, Video & Data Cabling
Home Entertainment, Home Structured Cabling, Residential Voice, Video & Data Cabling
2. Features & Benefits
Install Friendly
A rip cord underneath the jacket provides for easy removal at installation
Minimize the number of cable pulls, reduce installation cost and shorten the time required for the pre-wiring of residential
systems
All cables are tested physically & electrically in accordance with NEC standards
Sunlight Resistant & RoHS Compliant
Legend markings for zones and rooms to save installation time
E-Z footage marking with ascending and descending order
Free from restricted metals and hazardous compounds
Combines indoor/outdoor applications into one product.
Complies with the UL 1581 sunlight resistance requirement for outdoor installations
Install Friendly
A rip cord underneath the jacket provides for easy removal at installation
Minimize the number of cable pulls, reduce installation cost and shorten the time required for the pre-wiring of residential
systems
All cables are tested physically & electrically in accordance with NEC standards
Sunlight Resistant & RoHS Compliant
Legend markings for zones and rooms to save installation time
E-Z footage marking with ascending and descending order
Free from restricted metals and hazardous compounds
Combines indoor/outdoor applications into one product.
Complies with the UL 1581 sunlight resistance requirement for outdoor installations
FEATURES AT A GLANCE
Impedance: 75ohm
Jacket Colour: Black /White / or As required
Jacket Material: PVC / PE / LSZH
Conductor Material: Bare Copper / CCS /CCA
Jacket Colour: Black /White / or As required
Jacket Material: PVC / PE / LSZH
Conductor Material: Bare Copper / CCS /CCA
Right elevation
Left elevation
Front elevation

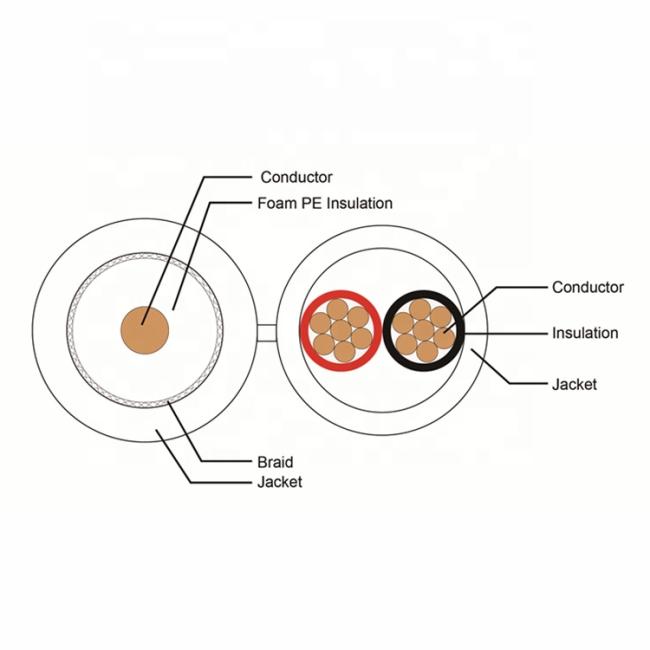

PRODUCT SPECIFICATIONS
|
Physical Characteristics
|
Certifications
|
|
RG6/U Quad Diameter Nominal: 7.5mm
|
ISO9001: 2008, ISO14001: 2004, OHSAS 18001
|
|
Power cable Diameter Nominal: 5.0mm
|
UL listed Type: CMR (UL 1666), CM(UL 1681)
|
|
Color Code:
|
UL444
|
|
RG6/U: 1.Black 2. White
|
RoHS / REACH Compliant
|
|
2C: 1.Black 2. Red
|
|
|
Separator: Clear Mylar Tape
|
Electrical Characteristics:
|
|
Rip Cord: Applied longitudinally under jacket
|
Operating Voltage: 300 Volts Max
|
|
Outer Jacket: Flame-Retardant & RoHS Compliant PVC
|
Sparker Test:----------------3000VAC
|
|
|
Impedance:------------------75+3 Ohm
|
|
Temperature Rating (°C):
|
Capacitance:-----------------55+3pF/m
|
|
Installation: 0 to + 60
|
Velocity of Propagation:--------85%
|
|
Storage & Operation: -20 to + 75
|
Return Loss:----------------------20dB min (5-1000MHz)
|
