China Duplex Stainless Steel A815 UNS S32750/S31803 Elbow 45deg / 90deg pipe fittings for Boiler Plant for sale

Duplex Stainless Steel A815 UNS S32750/S31803 Elbow 45deg / 90deg pipe fittings for Boiler Plant

Price Negotiable
Price: Negotiable
MOQ: 1 PIECE
Delivery Time: 8-20days
Brand: FLRS
Product Description

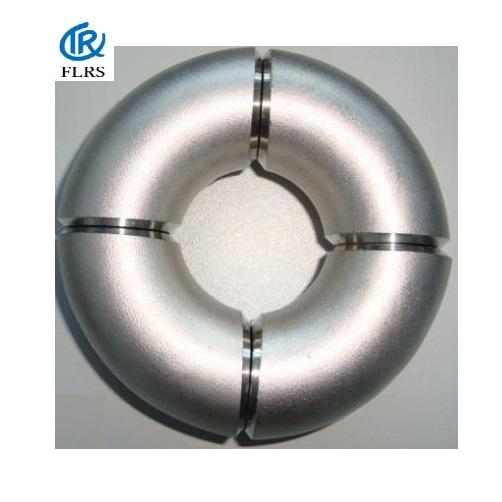

Duplex Stainless Steel A815 UNS S32750/S31803 Elbow 45deg / 90deg pipe fittings for Boiler Plant



Size 1/2"-24" seamless, 26"-60" welded
Standard ANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thickness

SCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40,

SCH60, SCH80, SCH160, XXS and etc.
Elbow 30° 45° 60° 90° 180°,etc
Radius

LR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D,

10D,20D etc.
End Bevel end/BE/buttweld
Surface

Pickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,

shinning



Elbow can connect two pipes or tubes at an angle, welded connection ensures tight

sealing and reduces the possibility of leakage .Elbow have good seismic performance,

good corrosion resistance and acid resistance.Suitable for use with liquids such as

water, oil and gas
